Application

Suitable for use with ceramic tiles, woods and other hard floor finishes the strip will also accommodate and cover small movement between the two floor finishes.

Description

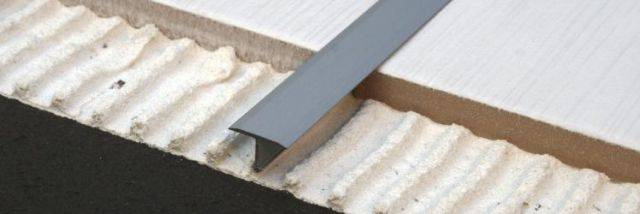

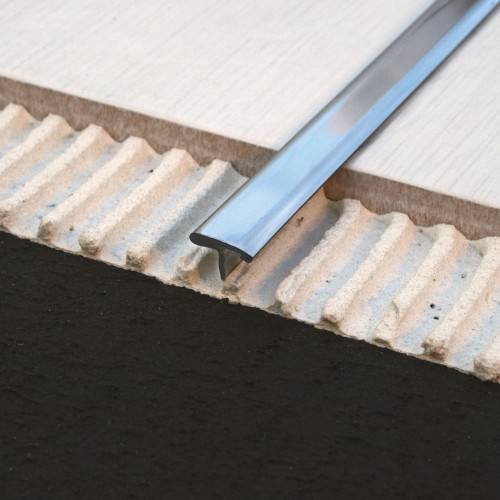

The metal dividing strip is a decorative and practical dividing trim used to cover gaps and slight imperfections in floor finishes at the same height.


The suitability of product to be installed must be determined if chemical or mechanical stresses are anticipated.

The profile can also be formed to provide a neat and discreet solution to the problem of protecting edges of the floor finishes in curved areas.


When using the mill finish aluminium it is important to note that adhesive and grout residue must be removed from the profile as oxidisation and discolouration will occur.

If using the brass profile then ensure a cleaning regime is undertaken to prevent oxidisation and discolouration.

General information

Color

Silver

Finish

Matt

Mill

Material

Steel

Stainless steel

Aluminium

Length

2500 mm

Width

3 mm

Guidance for specification option:

EDA310

5 mm

Guidance for specification option:

EDA510

14 mm

Guidance for specification option:

EDA147

20 mm

Guidance for specification option:

EDS209

22 mm

Guidance for specification option:

EDA408

Height

8 mm

Guidance for specification option:

EDA147

9 mm

Guidance for specification option:

EDA408, EDS209

10 mm

Guidance for specification option:

EDA510, EDA310

Uniclass

Pr_35_90_31_32 Floor edging stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Aluminium Tile Trims

Specification data - Floor edging strips

Material

Aluminium.

Finish

Mill aluminium 80.

Guidance for specification option:

EDA408 and EDA510.

Matt silver 81.

Guidance for specification option:

EDA147 and EDA408.

Matt brass 83.

Guidance for specification option:

EDA408 only.

Stainless steel 84.

Guidance for specification option:

EDS209 only.

Manufacturer's standard.

Colour where exposed to view

Silver.

Dimensions

2500 x 5 x 10 mm.

Guidance for specification option:

(L x W x D).

Sustainability data

Recyclability

100% recyclable

Literature

EDS Datasheet

EDS Datasheet
