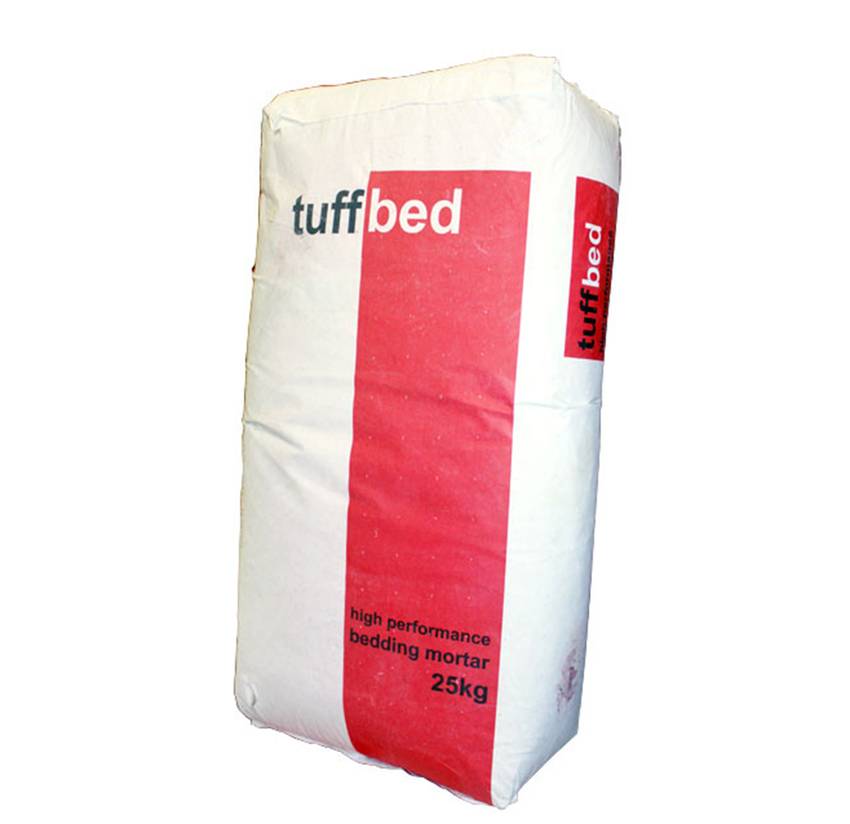

tuffbed High Performance Bedding Mortar - BS7533-101 Type35 bedding mortar

Verified by manufacturer 3 months ago

Steintec

Pre-blended, high performance, ready to use bedding mortar to BS7533-101:202 Type 35, Table 9.

Jump to:
+44 (0)203 5989800 Website

Application

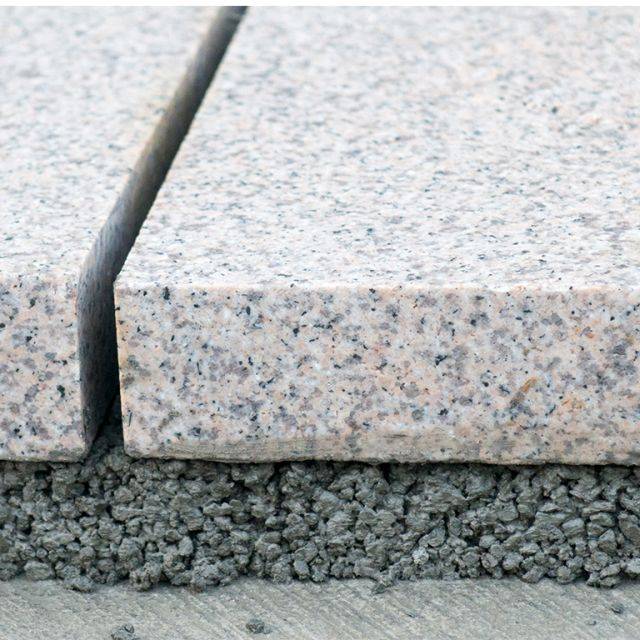

Designed for use as the laying course for bound construction pavements subject to a range of trafficking categories from pedestrian to heavy traffic: traffic categories 1-9 as defined in BS7533-101 tables 2a and 2b.

Description

A high performance and pre-blended bedding mortar. Formulated for use as the laying course (bedding) for bound construction (rigid) pavements composed of natural stone or concrete paving units subject to pedestrian, through to heavy categories of trafficking. The pre-blended feature makes this product more convenient for smaller commercial or domestic scale projects.


Features and benefits:

  • Performance fully complies with BS 7533-101:2021 Type 35 bedding mortar requirements, and in particular the requirement to be permeable and frost resistance when cured.
  • tuffbed has a capillarity maximum rise of 20 mm in accordance with BS 7533-101:2021. 5.4.1 when tested to Annex C.
  • Effective bedding mortar permeability is necessary for preventing moisture related issues, including frost damage, structural failure, efflorescence, picture framing and organic staining.
  • Bedding depths of between 15–70 mm can be placed in a single layer, with greater depths achieved by placing successive layers. Consult manufacturer for details.
  • In all situations, Type 25 mortar may be replaced with (tuffbed) Type 35 mortar (as stated in BS 7533 table 9 Note 1)
  • Uniclass Pr20 31 53 61

General information

Color

Grey

Finish

Coarse

Material

Cementitious

Guidance for specification option:

Cementitious hydraulically bonding mortar containing crushed igneous rock.

Shape

Formless

Warranty description

40 year

Guidance for specification option:

tuffbau Ltd warrants that the bagged product components will meet the specified performance criteria at production.

Uniclass

Pr_20_31_53_61 Paving laying course mortarsPrimary

CAWS

M10/120 Fine concrete levelling screeds

M10/130 Proprietary quick drying levelling screeds

M10/180 Concrete wearing screeds (granolithic)

M10/195 Proprietary screeds to BS EN 13813

M10/7 Proprietary quick drying levelling screeds

Q24/10 Conventional concrete block paving

Q24/112 Conventional concrete block paving with bound base

Q24/122 Conventional clay paver paving with bound base

Q24/130 Natural stone sett paving

Q24/132 Natural stone sett paving with bound base

Q24/133 Natural stone sett paving overlay

Q24/30 Mortar bedded

Q24/385 Mortar bedded

Q25/110 Natural stone slab paving system

Q25/115 Natural stone slab paving overlay system

Q25/120 Concrete flag paving system

Q25/125 Concrete flag paving overlay system

Q25/130 Rigid brick paving system

Q25/135 Rigid brick paving overlay system

Q25/140 Natural stone sett paving system

Q25/145 Natural stone sett overlay paving system

Q25/150 Concrete sett paving system

Q25/155 Concrete sett paving overlay system

Q25/160 Natural stone cobble paving system

Q25/165 Natural stone cobble overlay paving system

Q25/26 Natural stone slab paving systems

Q25/31 Concrete flag paving systems

Specification data - Paving laying course mortars

Standard

To BS 7533-101:2021, BS 7533-4:2006, BS 7533-7:2010, BS 7533-10: 2010, BS 7533-12:2006, EN 13813:2002.

Mortar designation

To BS 7533-101:2021 Type 25 and Type 35 compliant.

Guidance for specification option:

  • Classification - BS 7533-7: 2010 C.2.1 and table C4 Type A and Type B compliant.
  • Classification - BS 7533-7: 2010 C.2.1 and table C4 Type B compliant.

Characteristics

Pre-measured and pre-blended, dried aggregate and binder.

Guidance for specification option:

 In a 25 kg bag.

Moisture content

Wet mix, 150 mm slump.

Product Reference

tuffbed High Performance Bedding Mortar

Working temperature

2–30°C.

Typical compressive strength

14 days at 20°C: ~25 N/mm²; 28 days at 20°C: ~35 N/mm².

Adhesion strength

~1 N/mm² (without tuffbond): ~2 N/mm² (with tuffbond).

Flexural strength

4.5 N/mm².

F4 (4.5 N/mm²).

Modulus of elasticity

14 000–18 000 N/mm² (application-dependent).

Permeability (to EN 12697-19)

2 x 10^-4 m/s.

CompressiveStrength

C35.

Reaction to fire

A1-fl.

Adhesive strength designation

2 N/mm² with tuffbond brush applied to underside of paving elements.

2 N/mm² with tuffbond brush applied to underside of paving elements and to surface of concrete base or structural slab.

Sustainability data

Contains Red List materials

No

Material

Cementitious

Guidance for specification option:

Cementitious hydraulically bonding mortar containing crushed igneous rock.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

For guidance: Steintec tuffbed at 50mm bedding depth has an unverified embodied carbon value of 23.4kgCO2e/m2.

Recyclability

recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Manufacturer guidance

For smaller commercial or domestic scale projects
