TVS ABSorb Wall Panels
Verified by manufacturer 24 days ago
50 mm Panel
50 mm Panel
Acoustic wall panels.
Application

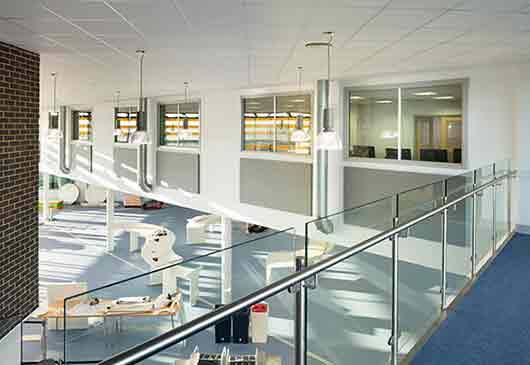

Widely used in classrooms, recording studios, offices, cinemas, reception areas and atriums.
Description
TVS ABSorb Acoustic Wall Panels provide an aesthetically pleasing solution to control reverberation time and increase the acoustic absorption of any space. The panels feature a highly absorbent glass fibre core wrapped in an acoustically transparent fabric. These panels can provide up to Class A absorption either as a complete wall covering or as a number of individually manufactured panels.
Features and benefits:
- Aesthetically pleasing.
- Class A absorption achieved with 50 mm or 40 mm panel.
- Manufactured to the size and shape required.
- 25 dB attenuation.
- Durable and easy to clean.
- Aesthetically pleasing design.
- Complete range of fixing solutions to suit the project.
- 80 fabric face finishes available.
- TVS impaling clip and adhesive provide a quick and easy install.
- The edges are reinforced to provide a square edge.
General information
Color | Other |
Finish | Other |
Material | Fabric Glass Fibre |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | 40 mm 50 mm |
Warranty description | Two year Guidance for specification option: Consult manufacturer's literature for details. |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Standard | To BS EN ISO 354:2003. |
Form | Panel. |
Rigidity | Rigid. |
Application | Wall mounting. |
Material | Glass-reinforced fibre. |
Material density | Approx. 3.0 kg/m². |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A to BS EN ISO 354:2003. |
Fire performance | |
Fire resistance | Guidance for specification option:
|
Dimensions | |
Size (length x width) | Manufacturer guidanceMaximum panel size: 2700 x 1200 mm. Insert requirements. |
Thickness (overall) | 50 mm. |
Edges | Square. |
Finish | Material. |
Colour | Manufacturer guidanceChoice of 80 colours available (Cara and Lucia ranges) - Consult manufacturer for details and insert requirements. |
Accessories | TVS impaling clip and adhesive. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
