Application

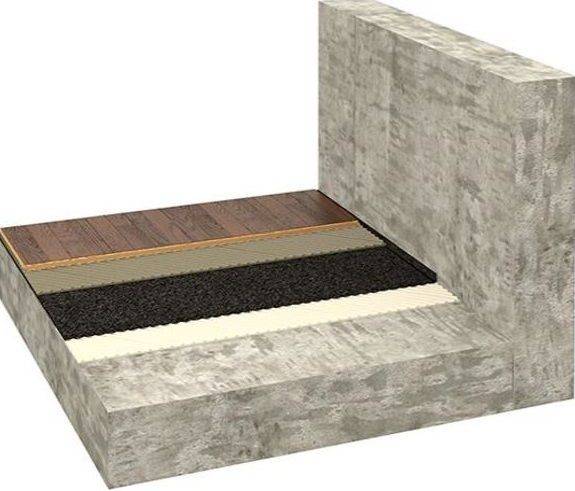

For use in conjunction with wooden flooring.

Description

Agglomerated recycled rubber underlay for impact noise and thermal insulation.


Technical characteristics:

  • Tensile strength: >350 kPa.
  • Compressive strength (at 0.7 MPa): 20%.
  • Recovery (after 0.7 MPa): >80%.
  • Dynamic stiffness: 54 MN/m³.
  • Room conditions: >10°C.
  • Room moisture content: <75%.
  • Thermal conductivity to ISO 8301: 0.140 W/m·K.


Features and benefits:

  • 100% recycled material.
  • Provides impact noise reduction and thermal insulation properties.
  • High durability and long term resilience.
  • High performance with a reduced thickness.

General information

Color

Black

Material

Rubber

Length

15000 mm

Width

1000 mm

Height

4 mm

Warranty description

One year

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K21/145 Composite laminate flooring

K21/146 Laminate flooring

K21/20 Composite laminated flooring

Product range

Acoustic Underlay Materials

Specification data - Resilient layer insulation

Material

Recycled rubber.

Density

650–750 kg/m³.

Thickness

4 mm.

Sound insulation rating

ΔLw 20 dB (to ISO 10140-3 and ISO 717-2).

Sustainability data

Contains Red List materials

No

Country of material origin

Portugal

Country of product manufacture

Portugal

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality

Literature

Acousticork T22 Acoustic Underlay for Glued Down Wood Floors

Acousticork T22 Acoustic Underlay for Glued Down Wood Floors
