TVS Expanded Mesh - Suspended ceiling
Verified by manufacturer 23 days ago
CS - Mesh Size: 4 x 6 mm, Thickness: 0.30–0.50 mm
CS - Mesh Size: 4 x 6 mm, Thickness: 0.30–0.50 mm

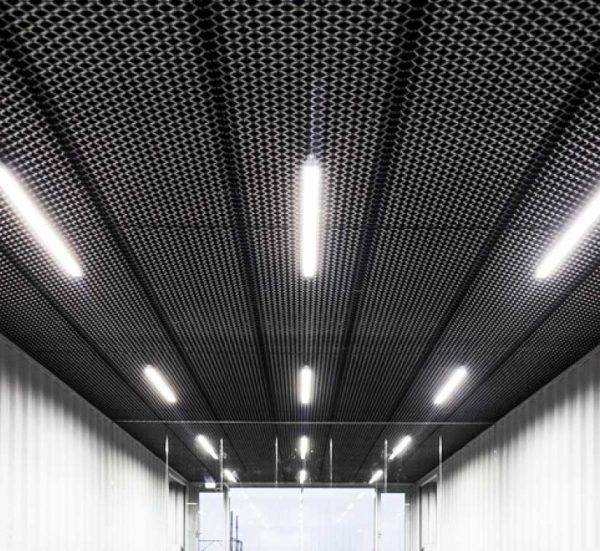

Expanded mesh metal suspended ceiling.
Application
Suitable Environments:
- Gas stations.
- Airports.
- Industrial buildings.
- Schools.
- Stadiums.
- Healthcare.
- Hospitality and hotels.
- Cargo and passenger vessels.
- Restaurants.
- High rise and offices.
- Financial and banking.
- Malls and residential.
Description
Expanded mesh ceilings are one of the elements that bring value to interior designs in terms of lighting and air circulation thanks to their visible and transparent structure. It works as a cover for the services equipment in the ceiling void with its semi-visible surface. As metal can be shaped and curved as requested, it provides plenty of design options to the architects.
Features and benefits:
- Visible and transparent structure.
- Aluminium, stainless steel or carbon steel panels.
- Hook on or concealed grid suspension system.
- Allow light and air circulation.
- Can be shaped and curved.
- Provides multiple design options.
- CE marked.
General information
Color | Silver |
Material | Aluminium Carbon steel Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K10/485 Suspended ceiling grids K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Modular suspended ceiling systems

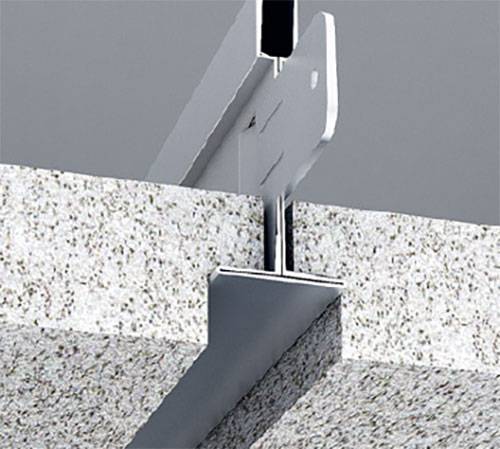

Ceiling support | Hook on suspension system.Concealed grid suspension system. |
Support fasteners | Manufacturer guidanceConsult manufacturer for details. |
Ceiling units | Carbon steel open cell infill units. |
Barriers in ceiling void | |
Fire barriers | Non-flammable felt.Guidance for specification option: Consult manufacturer for details and insert requirements. |
Acoustic barriers | Acoustic felt.Guidance for specification option: Consult manufacturer for details and insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
Mesh size | 4 x 6 mm. |
Thickness | 0.30–0.50 mm. |
Width | 2000 mm. |
Length | 600 mm. |
Grade | Carbon steel, st 37–52. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | Turkey |
