Application

Suitable application environments:

  • Transportation and airports.
  • Educational.
  • Healthcare.
  • Hospitality and hotels.
  • Commercial buildings.
  • High rise and offices.
  • Financial and banking.
  • Malls and residential.

Description

TVS Metal Lay On system is formed by allowing aluminium or galvanized steel panels to rest on a T24 grid system. The main runners are visible but there is now a shadow effect between the panels due to the tiles protruding below the grid. All panels are demountable without any special tools, so that the system enables fast and easy access to the ceiling void. The tile is available as plain or perforated lay-in and comes in white (RAL 9016, RAL 9006 and RAL 901) as standard, but other colours and wooden patterns are available upon request.


Features and benefits:

  • All panels are demountable manually.
  • Fast and easy access to the ceiling void.
  • Plain or fully perforated tiles.
  • "Semi-concealed" as runners are visible.
  • Lay-in or clip-in.
  • Variety of RAL colours.
  • Class C or Class A absorption.
  • Meets the requirements in accordance with ASTM C635, ASTM C636, ASTM E119, ASTM C423 and ASTM E84.
  • CE Marked.


System components:

  • 600 x 600 mm lay-on panel.
  • Acoustic fleece.
  • Wall angle L.
  • 3600 mm T24 Main Tee.
  • 1200 mm T24 Cross Tee.
  • 600 mm T24 Cross Tee.
  • Hanger wire.
  • Double spring.
  • Steel dowel.

General information

Color

White

Guidance for specification option:

RAL 9016, RAL 9006 and RAL 9010 as standard.

Other

Guidance for specification option:

Other RAL colours available on request.

Finish

Galvanized

Material

Aluminium

Steel

Shape

Square

Length

600 mm

Width

600 mm

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/265 Infill units

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support

Wall angle L, steel dowel and hanger wire.

Support fasteners

Suspended ceiling clip-in clips.

Ceiling units

Metal infill units.

Barriers in ceiling void

-

Acoustic barriers

Acoustic fleece.

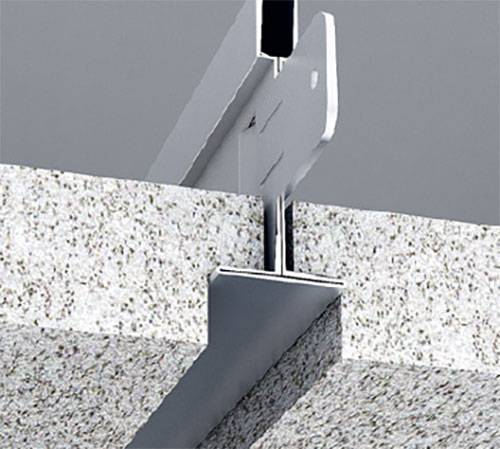

Grid system

T24 grid system.

Guidance for specification option:

  • 3600 mm T24 Main Tee.
  • 1200 mm T24 Cross Tee.
  • 600 mm T24 Cross Tee.

Material

0.5–0.7 mm Aluminium.

Galvanized steel.

Manufacturer guidance

Panel material.

Perforation

Fully perforated.

Plain (no perforation).

Panel size

600 x 600 mm lay-on panel.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

Turkey

Similar products from Total Vibration Solutions Limited t/a TVS Group

TVS Expanded Mesh - Suspended ceiling

TVS Expanded Mesh - Suspended ceiling

TVS Metal Clip In - Acoustic ceiling tile

TVS Metal Clip In - Acoustic ceiling tile

TVS Metal Hook On - Acoustic ceiling tile

TVS Metal Hook On - Acoustic ceiling tile

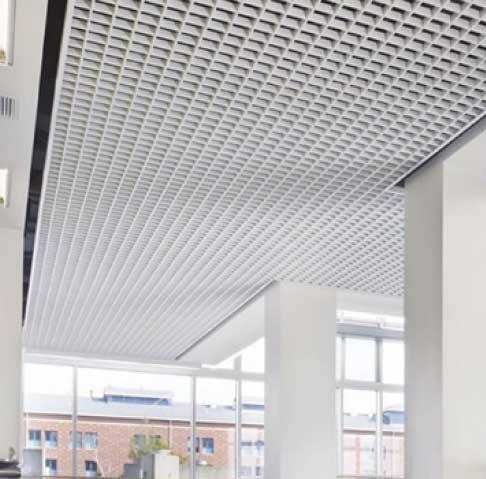

TVS Metal Open Cell - Suspended ceiling
