Two Part Slat Suite - Aluminium Slats

Verified by manufacturer 4 days ago

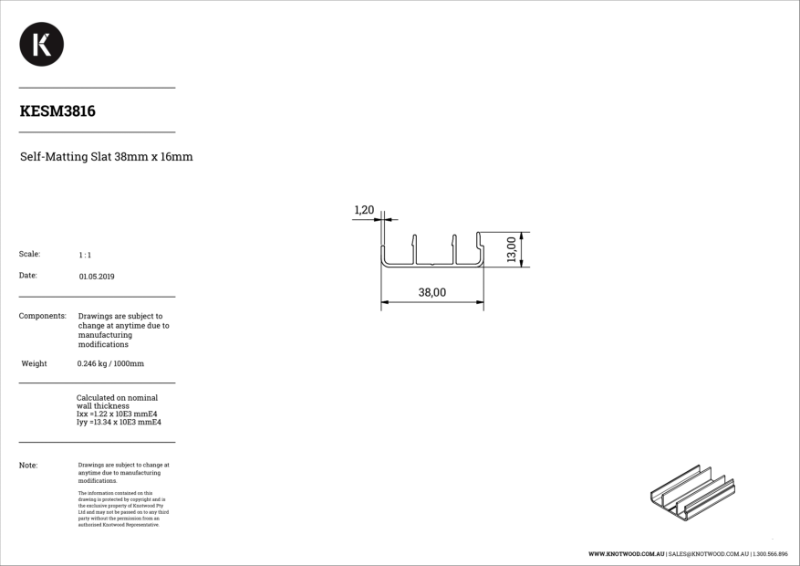

KESM3816: 38 x 16 mm slat (two part)

Knotwood Variant:

Two part aluminium slat suite.

Jump to:
+44 (0)800 131 3165 Website

Application

Suitable for commercial and residential building exteriors.


Suitable for a wide range of applications such as:

  • Open rainscreen cladding.
  • Shutters.
  • Louvres.
  • Fencing.
  • Screening.
  • Decking (150 mm profile).
  • Gates infills.
  • Balustrades.

Description

Knotwood two part slat suite:


This clever profile is defined as a self mating profile, this means the two parts of profile to achieve a completed slat are exactly the same. Turn the profile 180 degrees and they will simply clip together.


This has the added benefit of only purchasing 1 profile, same design on both sides and concealed fixing system.


A variety of slat shapes and sizes can add the illusion of width and height while providing a sense of visual unity and ventilation.


Features and benefits:

  • Non warping.
  • Colour stability - all colours have been rigorously tested to withstand the most extreme environments.
  • Weather resistant - Knotwood won't swell, grow mould or rust when exposed to wet conditions. Unlike wood it is protected from corrosion.
  • Non combustible.
  • Eco friendly - Knotwood uses VOC free coatings, lead free finishes and is 100% recyclable at the end of its lifespan.
  • Scratch resistant - a topcoat of exterior grade paint is baked on to provide resistance to chipping, flaking, blistering and scratching.
  • Insect proof - impervious to termites and ants, and doesn’t require chemical treatments to be protected from pests.
  • Low maintenance - specialized finishes have outstanding properties to ensure ease of maintenance and longevity of the surfaces.

General information

Color

White

Grey

Green

Cream

Beige

Show more

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

5600 mm

Guidance for specification option:

Standard.

Bespoke

Guidance for specification option:

Bespoke options up to 6500 mm are available.

Manufacturer guidance

Cutting service is available to be cut to the required size.

Width

38 mm

65 mm

100 mm

150 mm

Height

16 mm

Warranty description

15 year

Guidance for specification option:

This warranty is for Knotwood's powder coated wood grain finishes.


Powder coating warranties from 10–30 years depending on the specification of the powder. Please get in touch to find out more.

Uniclass

Pr_25_71_51_02 Aluminium long stripsPrimary

CAWS

L10/55 Brises-soleil

L10/670 Brises-soleil

H31/120 Metal

Q40/430 Proprietary fencing

H31/10 Metal

Q40/30 Proprietary fencing

Specification data - Aluminium long strips

Grade

6063.

Temper

T6.

Width

38 mm.

Factory finishes

Powder-coated.

Sublimated effects (wood grain).

Anodized.

Thickness

1.2 mm.

Reaction to fire

-

External face

A2-s1-d0.

Guidance for specification option:

Powder coating finishes included sublimated wood grain effects.

A1.

Guidance for specification option:

Anodized finish.

Internal face

A2-s1-d0.

Guidance for specification option:

Powder coating finishes included sublimated wood grain effects.

A1.

Guidance for specification option:

Anodized finish.

Height

16 mm.

Colour

Grey Ash.

QLD Walnut.

Kwila.

Natural Oak.

Textura White.

Show more

Length

5600 mm.

Guidance for specification option:

Standard.

Bespoke.

Guidance for specification option:

Bespoke options up to 6500 mm are available. Consult manufacturer and insert requirements.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Standard option is between 0-20% recycled content. There are options available which can use 100% recycled content and low carbon options. Please get in touch to find out more.
