Type BL-WG (Aluminium)

Verified by manufacturer 2 months ago

BL-A-WG1

Access 360 Variant:

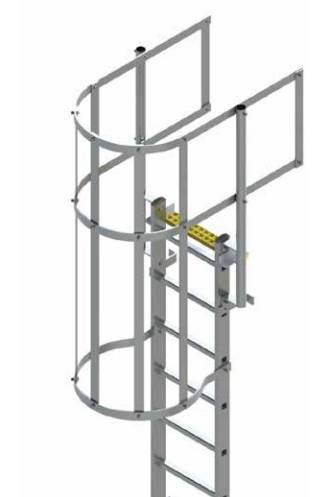

Industrial standard aluminium fixed vertical ladder with safety cage and guardrail, in lengths between 2.0 and 6.0 metres (other sizes to order).

Jump to:
+44 (0)1827 718222 Website

Application

Suitable for industrial use when moving between platforms at differing heights and ensuring the safety of those on site.

Description

Aluminium, industrial standard fixed vertical ladder, available to floor-to-roof or platform heights of between 2–6 m (special sizes available upon request).


Features and benefits:

  • Supplied with a fixed safety cage and guardrail, designed for access onto mezzanine or flat roof areas where an access hatch is not being used.
  • Manufactured to meet the requirements of BS 4211.
  • Ladder:
  • Stiles: Alloy Class 1, 73 x 25 mm box section.
  • Rung: Class 1 heavy duty.
  • Stand-off brackets: 50 x 10 mm alloy bar.
  • Fixings: Stainless steel.
  • Finish: Mill.
  • Guardrail height: 1100 mm.
  • Overall ladder width: 488 mm.
  • Safety cage:
  • Cages above 2200–3000 mm.
  • Strap: 50 x 10 mm flat bar, five straps as BS 4211.
  • Fixings: Dome head bolts.
  • Finish: Mill.

General information

Finish

Mill

Material

Aluminium

Uniclass

Ss_35_10_30_62 Permanently-fixed vertical ladder systemsPrimary

CAWS

L35/130 Ladder system

Product range

Fixed Ladders

Specification data - Permanently-fixed vertical ladder systems

Product Reference

BL-A-WG1

Guidance for specification option:

For 2.0–2.8 m height, 36–38 kg weight (approximate).

Dimensions – height

2.0–2.8 m height.

Nominal weight

36–38 kg weight (approximate).

Sustainability data

Material

Aluminium

Literature

TYPE BL-WG Fixed Ladder with Safety Cage and Guardrail

TYPE BL-WG Fixed Ladder with Safety Cage and Guardrail
