Type Slide - Sliding Wall Partitions

Verified by manufacturer 3 days ago

London Wall Design Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • EPD

    EPD

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • Acclaim Accreditation

    Certificate type

Bespoke wall partition solution.

Jump to:
+44 (0)20 8391 8750 Website

Application

Suitable for internal use only.

Description

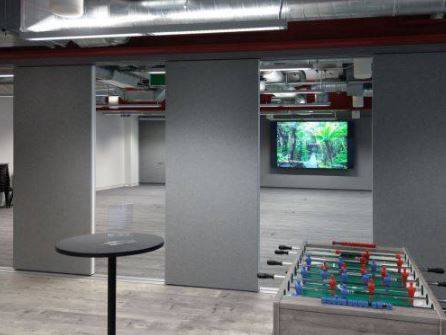

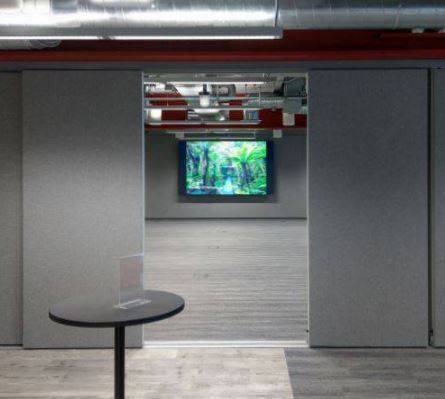

Slide is a bespoke wall partition solution, custom built to divide up and maximise open spaces. Made up of individual panels in a variety of finishes that slide along a linear track. They can be hidden in a recess or behind a wall when not in use and simply moved out when required.


Slide offers an optional auto breaking system (ABS) with soft closure. The system is available with either sweep strips or retractable seals.


Features and benefits:

  • Top hung or floor supported.
  • Manual, semi-electric or fully electric operation method.
  • Multiple partition finishes available.
  • Wide variety of options for track lengths and panel numbers.
  • Available with or without floor track/ floor guides.

General information

Color

Grey

Brown

White

Other

Finish

Laminated

Veneered

Other

Material

Laminate

High pressure laminate (HPL)

Fabric

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_25_71_57_80 Sliding stacking panel partitionsPrimary

CAWS

L20/545 Sliding stacking panel partitions

Specification data - Sliding stacking panel partitions

Operation

Manual.

Powered, automatic.

Powered, semi-automatic.

Dimensions (nominal)

-

Structural opening size

-

Manufacturer guidance

Bespoke. Insert requirements.

Panel (average)

-

Width

-

Manufacturer guidance

Bespoke. Insert requirements.

Height

-

Manufacturer guidance

Bespoke. Insert requirements.

Thickness

-

Manufacturer guidance

Bespoke. Insert requirements.

Track system

-

Head track

No head track - floor supported.

Top hung with twin point suspension.

Floor track

Single linear.

Panels

-

Construction

Custom built to customer specification.

Finish as delivered

Laminate.

High pressure laminate.

Veneer.

Whiteboard.

Magnetic whiteboard.

Fabric.

Pinboard.

Manufacturer guidance

Consult manufacturer for further details.

Joints

-

Finish

As panels.

Vision panels

Not required.

Glazed vision units.

Accessories

Not required.

Auto breaking system (ABS) with soft closure.

Sealing

Sweep strips.

Retractable seals.

Sustainability data

Material

Laminate

High pressure laminate (HPL)

Fabric

Recyclability

Metal parts can be separated and directed to material recycling. Theoretically, particle board can also be recycled by directing the panels to new production

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Winab

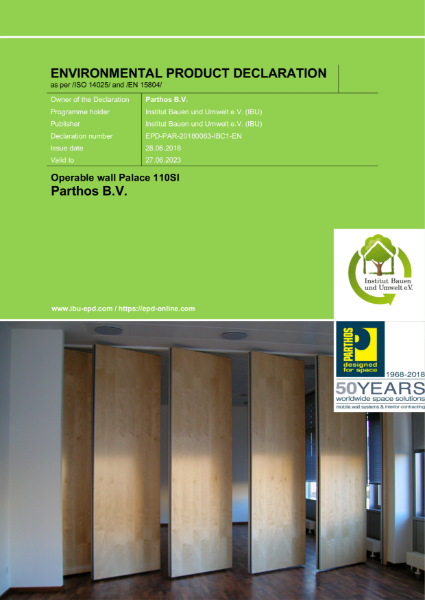

EPD

EPD

Parthos EPD

Constructionline

Constructionline

Social Value Certificate Constructionline

 Acclaim Accreditation

Acclaim Accreditation

SSIP Acclaim

Literature

Type Slide

Type Slide
