Type SSV, Type SSVRU and Type SSV15 - Ventilating Strip
Verified by manufacturer 7 months ago
Type SSV
Type SSV
Preformed strip soffit ventilators for new works.
Application
Suitable for new works.
Description

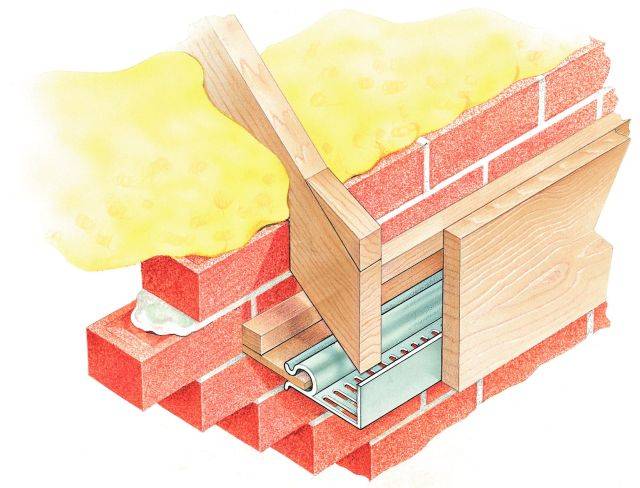

A preformed strip soffit ventilator for new works.
Features and benefits:
- Self-coloured.
- Corrosion proof construction incorporating integral insect screen.
- Strips are pre-drilled for immediate fixing into and support of standard soffit boards from 4–14 mm in thickness.
- Free airflow 10 800–5 000 mm² per metre run (equivalent to a 10 mm continuous gap, when installed along whole length of soffit).
Type SSV15:
Satisfies roof ventilation requirements for pitches below 15°.
Type SSVRU:
Similar to SSV15 with reduced front upstand of 5 mm permitting fit into the back groove of fascias.
Type SSV:
Satisfies roof ventilation requirements for pitches above 15°.
General information
Color | White Brown Black |
Material | PVC-U Guidance for specification option: UV stabilised polymer, un-plasticized polyvinyl chloride (PVC-U) compound. |
Shape | Rectangle |
Length | 2400 mm |
Width | 50 mm |
Height | 20 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | G20/900 Eaves soffit ventilators G20/97 Eaves soffit ventilators |
Specification data - Soffit grilles
Style | Continuous strip. |
Ventilation opening | 10 800 mm².Guidance for specification option: Free airflow per metre run. (Equivalent of 25 mm continuous gap, when installed along whole length of soffit). |
Colour | White.Brown.Black. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Ventilation Product Guide
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
