Universal 25 mm Eaves Ventilation System

Verified by manufacturer 3 months ago

Marley Ltd

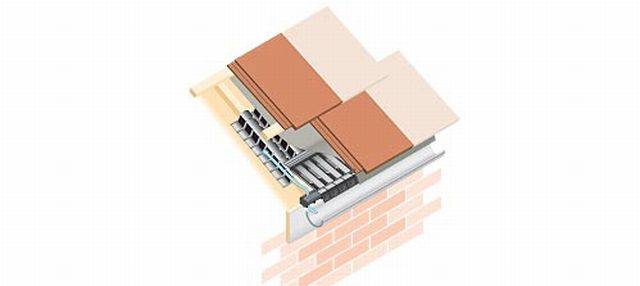

A continuous, integrated over fascia system.

Jump to:
+44 (0)1283 722588 Website

Application

  • Suitable for providing continuous free vent areas of 25 mm to roof voids and ventilating the batten cavity where needed.
  • For roof pitches from 12.5° to 55°.

Description

An over fascia system providing eaves ventilation. When combined with Marley Ventilated Dry Ridge System or RidgeFast System, it also provides eaves to ridge ventilation.


Features and benefits:

  • Simple, fast installation.
  • Allows clip fixing of tiles at eaves.
  • 25 000 mm²/lin.m ventilation opening.

General information

Color

Black

Length

6000 mm

Uniclass

Pr_30_59_29_15 Combined eaves fascia grilles and ventilator traysPrimary

CAWS

H65/345 Ventilated eaves – integrated grilles/ trays

Specification data - Combined eaves fascia grilles and ventilator trays

Ventilation opening

25 000 mm²/ m.

Components

Universal 25 mm Eaves Ventilation System.

Guidance for specification option:

Universal 25 mm Eaves Ventilation System comprising:

  • Underfelt Support Tray.
  • Strip Ventilator.
  • Continuous Rafter Roll.
  • Gutter Spacer Kit.
  • Comb Filler Unit, as appropriate for tile profile.
