Verified by manufacturer over a year ago
VEBOX-01-COMPACT-SINGLE Storage Cabinet
Car park storage cabinet.
Storage for standard household and commercial goods, such as:

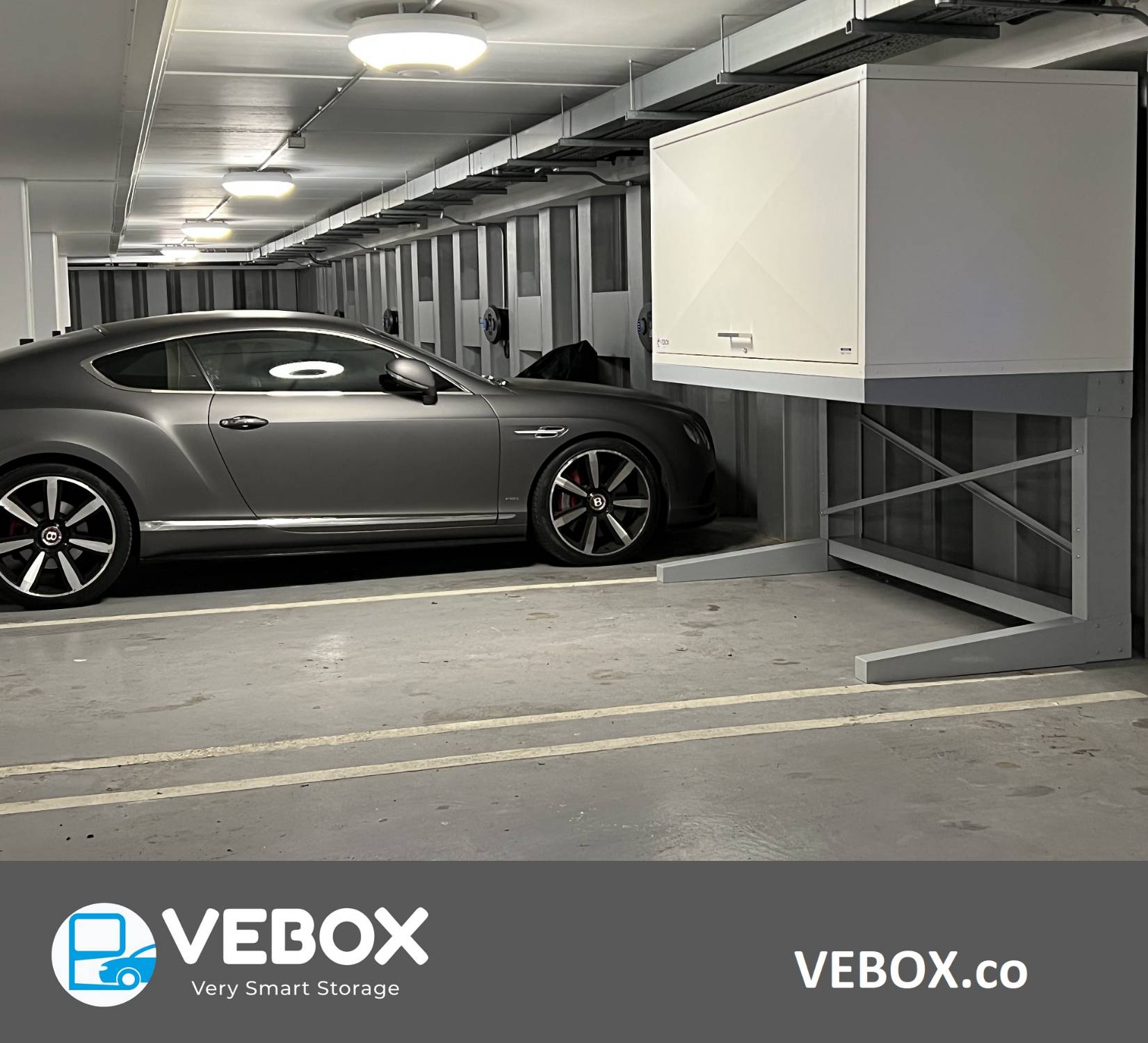

Free standing or fixed storage cabinet for use in car park spaces or other areas in car parks or buildings.
Features and benefits:
Fire Performance:
Color | White Grey Other |
Finish | Coated |
Material | Steel |
Shape | Rectangle Guidance for specification option: Rectangular cube. |
Length | 2300 mm |
Width | 1100 mm |
Height | Bespoke |
Warranty description | Six year Guidance for specification option: Full unit warranty. Either defective part or full unit replacement. |
Uniclass | |
CAWS | N10/220 Lockers Q50/212 Cycle lockers |
Locker type | Storage. |
Dimensions | 2300 x 1100 x 2000 mm.Guidance for specification option: Box: 2300 x 1100 x 800 mm. Leg: 2300 x 1100 x 1000-1500 mm (adjustable). |
Material | Galvanized steel.Guidance for specification option: Box: 1.5 mm thick. Legs: 4 mm thick. |
Finish | Wet paint coating.Intumescent coating.Guidance for specification option: For maximum fire and corrosion protection. |
Colour | White and grey.Guidance for specification option: Box: RAL 9010. Legs: RAL 7040. Standard RAL.Guidance for specification option: Any standard RAL available. |
Fittings | Shelves. |
Integral accessories | Key lock. Guidance for specification option: Stainless steel hook bolt Europrofile deadlock. Smart lock. Guidance for specification option: Type specified subject to intended building security access system installed at site. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 885.9 Self declared Guidance for specification option: Offset to Net Zero via tree planting - 1 tree per 3 units. |
Recyclability | Galvanised steel |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
