Vertical Bar Railings
Verified by manufacturer 4 months ago
1.6–2 m height
1.6–2 m height

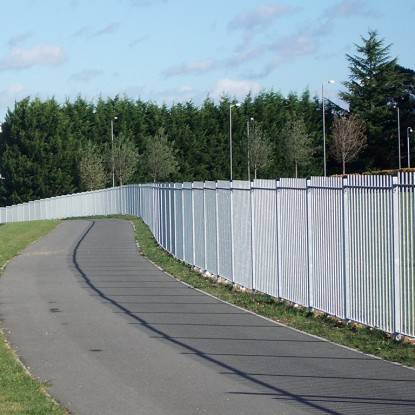

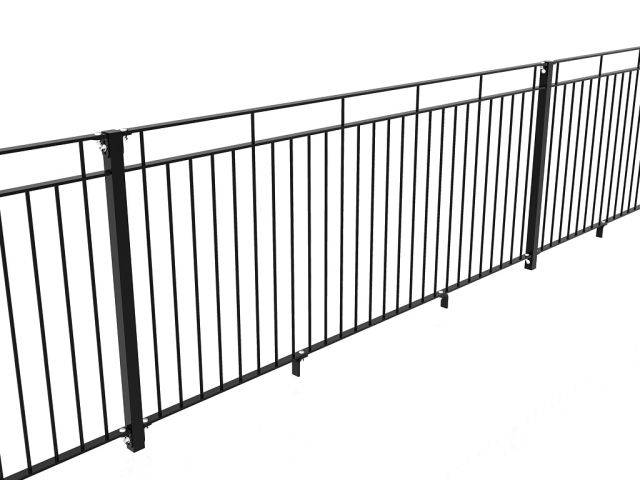

Vertical bar railing system.
Application
- Residential and commercial.
- Civic and public sector.
- Educational and schools.
- Leisure and sport.
Description
Vertical bar railing system for perimeter security and property demarcation.
Features and benefits:
- Solid, robust construction.
- Attractive appearance.
- Available with finials to discourage climbing.
- Swing and sliding gates can be added to match the railings.
- Designed to suit a variety of situations.
General information
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 2700 mm |
Height | 1000 mm 1200 mm |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing |
Specification data - Carbon steel framed vertical section panels
Dimensions | |
Height | Manufacturer guidance1–2 m. Consult manufacturer and insert requirements. |
Infill | |
Spacing | 120 mm. |
Section | 20 mm. |
Panel toppings | |
Rail tops | Not required.Finials.Ornate finials. |
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Gates | Not required. Swing. Guidance for specification option: To required width. Consult manufacturer and insert requirements. Sliding. Guidance for specification option: To required width. Consult manufacturer and insert requirements. |
Posts | 80 x 80 mm. |
Post centres | 2760 mm. |
Rails | 50 x 10 mm. |
Width | 2700 mm. |
Fixings | Cup square bolts & shear nuts. |
Support | 1 x per bay to prevent sag. Guidance for specification option: Legs. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Literature
Zaun Systems Brochure
