VESS Masonry Support System

Verified by manufacturer 5 months ago

Vista Engineering Ltd Product certifications:
  • BS EN 1090 EXC2

    BS EN 1090 EXC2

    Certificate type

Masonry Support System designed to suit cavity width and masonry load.

Jump to:
+44 (0)1663 736700 Website

Application

Suitable for cavities wider than 45 mm, masonry support systems are fabricated to specific requirements.

Description

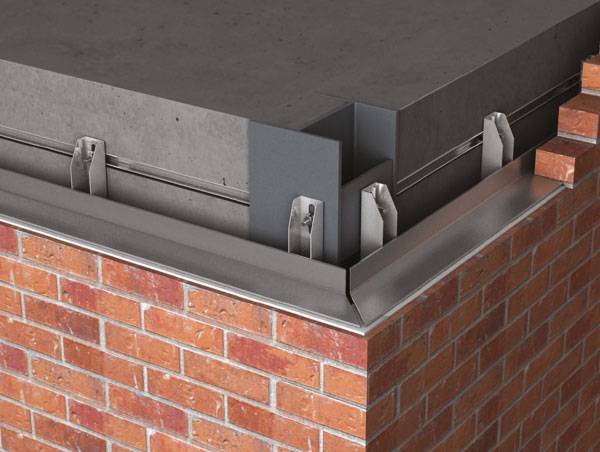

The masonry support systems comprise of brackets welded to continuous angles at pre-designated fixing centres. They are generally used for cavities in excess of 45 mm.


The brackets offer up to ±24 mm vertical adjustment by utilizing an 18 x 60 mm vertical serrated slot in conjunction with a serrated washer.


Support systems are bespoke items that are designed to suit every individual application, ensuring cost effective design solutions for every masonry support requirement.


CE and UKCA marked.

General information

Finish

Mill

Material

Stainless steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

60 year

Uniclass

Pr_20_85_03_50 Masonry angle supportsPrimary

CAWS

F30/265 Support systems

Specification data - Masonry angle supports

Material

Stainless steel, 1.4301 (304) grade.

Guidance for specification option:

Standard.

Stainless steel, 1.4401 (316) grade.

Guidance for specification option:

Optional, consult with manufacturer for details.

Components, arrangement and dimensions

VESS Masonry Support System.

Code

-

Manufacturer guidance

To specify GA Support System include the following:

  • VE Support System
  • Cavity
  • Masonry load.


e.g: VESS/ 75C/ 12L.


Consult the manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Stainless steel

Recyclability

100% Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

60 year

Product certifications

BS EN 1090 EXC2

BS EN 1090 EXC2

BS EN 1090
