VU120 - Smoke Control Damper - Single-blade - Rectangular Smoke Control Damper
Verified by manufacturer 6 months ago
Single compartment
Single compartment
DoP
Certificate type
Efectis NL
Certificate type
"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) upto 120 minutes. For installation in vertical and horizontal smoke extraction ducts and shafts.
Application
"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) up to 120 minutes.
VU120 Fields of application:
- SHEVS smoke and heat exhaust ventilation systems.
- Pressure differential systems (PDS).
- Gas extinguishing systems.
- Suited for smoke extraction and air supply.
- Suited for mechanical and natural smoke extraction systems.
VU120 Building applications:
- Industrial, commercial & residential buildings.
- Hospitals and care houses.
- Data centres and battery plants.
- Universities, colleges and schools.
- Detention institutes.
Description
"BS EN 1366-10 AA certified" smoke control damper, with a fire resistance (EIS) upto 120 minutes.
For installation in vertical and horizontal smoke extraction ducts and shafts.
VU120 Distinct Product Features
- CE certified against EN 1366-10 and EN 12101-8.
- UKCA certified.
- Certified for installation in vertical and horizontal smoke extraction ducts and shafts, made of different materials.
- For use in single and multi-compartment smoke extraction ducts.
- Tested to the highest pressure class (level 3 at 1500 Pa).
- Up to 120 minutes classification for integrity (E), smoke leakage (S) and insulation (I).

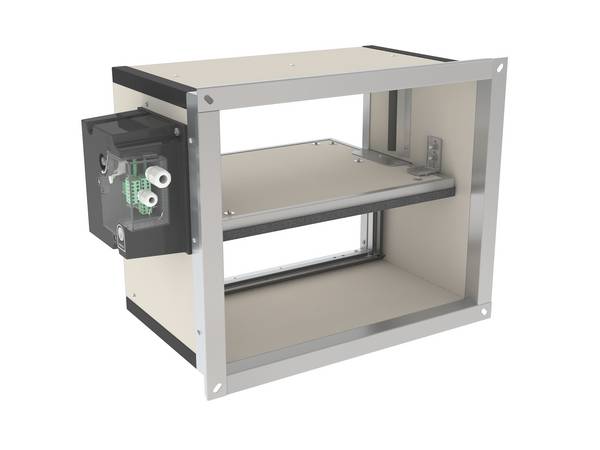

- AA-applications (automatic activation), with choice of different actuators:

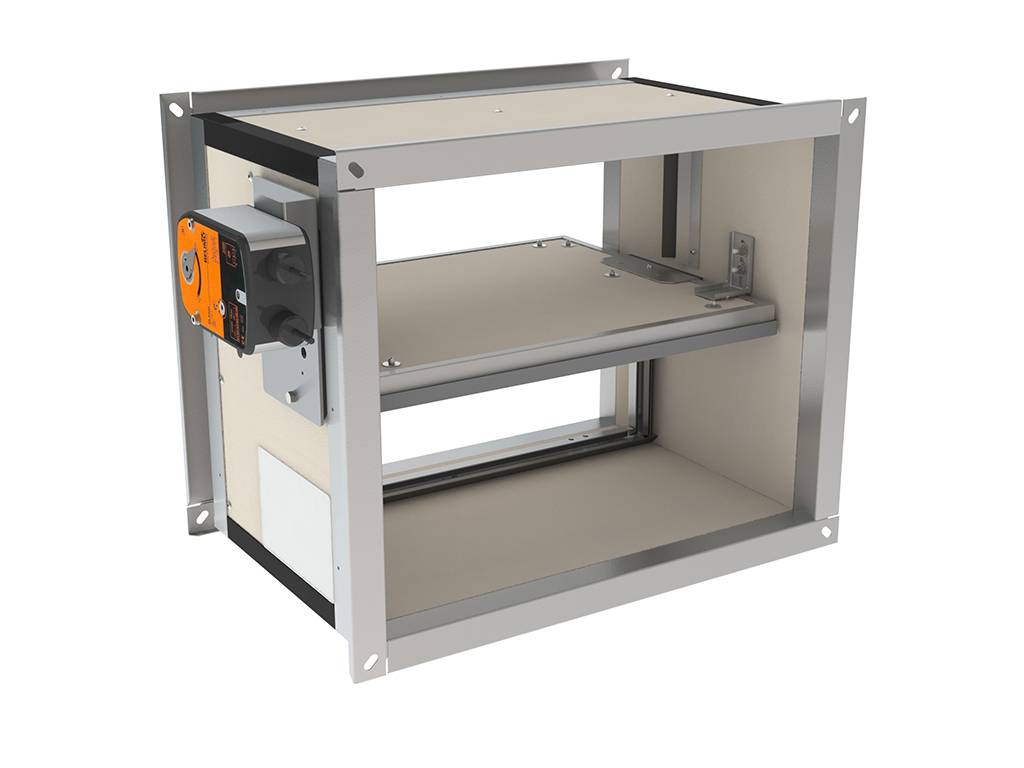

- Belimo motorized range (24/ 230 V).
- Natural magnet actuation (24/ 48 V d.c. - pulse activation) with optional resetting motor.
- Electromagnet actuation (24/ 48 V d.c. - interruption activation) with optional resetting motor.
- Single insulated damper blade.
- Several flange options, including direct shaft connection, rectangular (metal) duct connection, finishing grill or circular connection.
- Range of standard sizes (intermediate dimensions on request).
- For indoor use.
- Maintenance-free.
- Designed for use with ZENiX controls.
- ZENiX field module to drive Belimo smoke control damper actuator.
VU120 user benefits:
- Can be used for both single and multi-compartment applications.
- Can be used for additional ventilation purposes (night cooling application).
- Smoke tightness tested at highest pressure level (1500 Pa).
- Large selection of connection types (flanges) to fit to the chosen installation method and application.
VU120 range: (Width/Height)
- Sizes from 200 x 200 mm, to 1200 x 800 mm and 1000 x 1000 mm, in steps of 50 mm.
- Intermediate dimensions on request.
- Extended frame available to incorporate exceeding blade.
Notes:
- For information about the different types of installation and sealing methods please consult the Markage MB Product application field and or the Declaration of Performance (DoP).
- For wall-mounted classifications for single blade rectangular smoke control dampers, check out the VUW120.
General information
Color | Silver Cream |
Finish | Other Galvanized Epoxy |
Material | Calcium silicate Metal Steel |
Shape | Rectangle Square |
Length | Bespoke Guidance for specification option: Depth. 350 mm |
Width | 200 mm 250 mm 300 mm 350 mm 400 mm Manufacturer guidanceNominal. |
Height | 200 mm 250 mm 300 mm 350 mm 400 mm Manufacturer guidanceNominal. |
Warranty description | One year |
Uniclass | |
CAWS | U90/445 Dampers, smoke |
Specification data - Smoke dampers
Standard | To EN 12101-8:2011. |
Classification | |
Standard | To EN 13501-4. |
Multi-compartment | |
Smoke leakage | S. |
Inside or outside | (i ↔ o). |
Single compartment | |
Integrity class | E600 60.E600 90.E600 120. |
Suitability | Ve duct; Ho duct. |
Smoke leakage | S. |
Inside or outside | (i ↔ o). |
Aerodynamic performance | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Activation | AA – automatic. |
Actuators | KITS BLE24.Guidance for specification option: BLE 24 V actuator for smoke control dampers. KITS BLE24-ST.Guidance for specification option: BLE 24 V actuator for smoke control dampers with plug (ST). KITS BLE230.Guidance for specification option: BLE 230 V actuator for smoke control dampers. KITS NF24.Guidance for specification option: Actuator NF 24 V. KITS SF24.Guidance for specification option: Actuator SF 24 V. KITS NF230.Guidance for specification option: Actuator NF 230 V. KITS SF230.Guidance for specification option: Actuator SF 230 V. KITS NF/SF-VD.Guidance for specification option: NF/SF-VD module (NF24/SF24: 24-48 V d.c.). Only for France. KITS MANF EVO VD24 FDCU.Guidance for specification option: Upgradeable remote controlled unlocking mechanism with natural magnet 24 V d.c. + FDCU. KITS MANF EVO VD48 FDCU.Guidance for specification option: Upgradeable remote controlled unlocking mechanism with natural magnet 48 V d.c. + FDCU. KITS MANF EVO VM24 FDCU.Guidance for specification option: Upgradeable remote controlled unlocking mechanism with electromagnet 24 V d.c. + FDCU. KITS MANF EVO VM48 FDCU.Guidance for specification option: Upgradeable remote controlled unlocking mechanism with electromagnet 48 V d.c. + FDCU. KITS VD24 MAN EVO FDCU.Guidance for specification option: Natural magnet 24 V d.c. + FDCU. KITS VD48 MAN EVO FDCU.Guidance for specification option: Natural magnet 48 V d.c. + FDCU. KITS VM24 MAN EVO FDCU.Guidance for specification option: Electromagnet 24 V d.c. + FDCU. KITS VM48 MAN EVO FDCU.Guidance for specification option: Electromagnet 48 V d.c. + FDCU. |
Dimensions | Guidance for specification option: Consult manufacturer's literature for performance details and insert requirements:
Overall height = nominal height + 24 mm. Overall width = nominal width + 24 mm. Intermediate dimensions available on request; consult manufacturer for details. Note that heights between ≥275 and ≤299 mm are not possible. Consult manufacturer for performance data and unit weights based on requirements. |
Flange | PG30 2 flange, alternative connection to standard PS at the shaft side. Guidance for specification option: PG30 connection to ducts with 30 mm flanges, with elliptical holes Ø 8.5 x 16 mm. PS - no connection. Guidance for specification option: Standard connection shaft side. Also possible on shaft side: PG30, PG20, PG40, PM. PG30, connection to ducts with 30 mm flanges. Guidance for specification option: Either by sliding profile or with bolts. Also possible on shaft side instead of PS connection (at time of order). Elliptical holes Ø 8.5 x 16 mm. PG20, connection to ducts with 20 mm flanges. Guidance for specification option: Elliptical holes Ø 6.5 x 16 mm. Also possible on shaft side instead of PS connection (at time of order). PG40 flange. Guidance for specification option: Connection to ducts with 40 mm flanges, elliptical holes Ø 8.5 x 16 mm. Also possible on shaft side instead of PS/ PG30 connection (at time of order). Manufacturer guidanceSee also Accessories for related options. |
Accessories | MECT testbox for mechanisms 24/ 48 V. KITS FDCU MAN limit switch 'open/closed' . KITS FDCB MAN auxiliary limit switch 'open/closed'. KITS ME MANF resetting motor ME 24/ 48 V. PPT (+PG3V) grill. Guidance for specification option: Very well suited as protection grill on the end piece of a duct system (PG3V + PPT). Possible on mechanism side instead of PG30 connection (at time of order). |
Third-party certification | CE marked Efectis - 1812-CPR-1595. |
Sustainability data
Country of material origin | Belgium Guidance for specification option: Primarily Belgium, consult manufacturer for details of other potential countries. |
Country of product manufacture | Belgium |
Material | Calcium silicate Metal Steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
VU120 Technical Product Documentation
