Walk Angel - Walkway and Access Systems - Roof Access Walkway and Step System
Verified by manufacturer 27 days ago

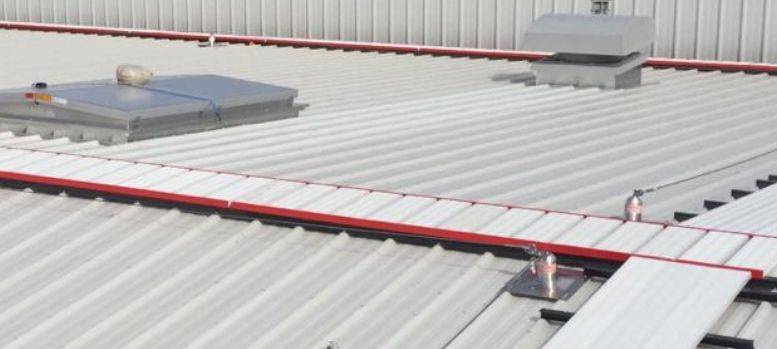

Walkway for trapezoidal roofing
Walkway for trapezoidal roofing
Lightweight, fast installation, robust and cost effective walkway.
Application
Can be installed on many different roof types:
- Trapezoidal roofing
- Standing seam roofing
- Levelled systems for inclined areas
- Flat roofing
- Steps for pitched roofing
- Steps for barrelled roofing
Description
Lightweight, fast installation, robust and cost effective walkway.
Features and benefits:
- Lightweight for reduced transport costs and quicker handling.
- Slip resistant.
- Fire resistant.
- Boards made from 100% recycled PVC-U.
- Recyclable.
Tested to:
- CE EN 516.
- EN ISO 19925.
- EN 13823.
- DD 7995:2003.
- EN 12810.
- EN 12811.
General information
Color | White Guidance for specification option: Main board colour. Edges are red as standard. |
Finish | Anti-slip Guidance for specification option: MAGNAtube® zinc/aluminium/magnesium coating. |
Material | PVC-U Guidance for specification option: Boards/ I-beams. Stainless steel Guidance for specification option: Brackets/ fixings/ frame (steps). Aluminium Guidance for specification option: Fixings. |
Shape | Rectangle |
Length | Bespoke |
Width | 675 mm |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | L35/160 Working platform system L35/140 High level walkway system L35/120 Duckboard system L30/45 Ramps/ walkways L30/460 Walkways L35/340 High level walkways L35/350 Stairs |
SKU Code | Walk Angel |
Specification data - Working platform and walkway systems
System performance | To EN 516. |
Frame | |
Section | Manufacturer's standard. |
Fixing to superstructure | SFS IRIUS Tek screws, five per side, sealed with foam pad. Guidance for specification option: To attach I-beams to crowns of the profile. |
Decking and flooring | |
Material | PVC-U boards in line with crowns, and I-beams. Guidance for specification option: Full-length panel weight: 33.7 kg. Panel sections 3000 mm long as standard, 675 mm wide (frame width: 1000 mm). PVC-U boards at 90° to crowns, and I-beams. Guidance for specification option: Full-length panel weight: 32.2 kg. Panel sections 3000 mm long as standard, 675 mm wide. Manufacturer guidanceFlush fit joining system included as required. Boards are white with red edging; I-beams are grey. |
Applied anti-slip treatment | Manufacturer's standard. |
Balustrade guarding system | Guard Angel. Guidance for specification option: Consult manufacturer for details and insert reference (Guard Angel specified separately). Not required. |
Handrail system | Guard Angel. Guidance for specification option: Consult manufacturer for details and insert reference (Guard Angel specified separately). Not required. |
System accessories | None. Levelling system. Guidance for specification option: For roofing areas over 5° in pitch. Bespoke system, consult manufacturer for options and insert requirements. |
Configuration | Guidance for specification option: Insert drawing, schedule or similar. Where applicable, include:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 258 kg CO₂ eq/kg |
Declared unit | 258 kg CO₂ eq/kg Self-declared |
Recyclability | Fully recyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Literature type
Walk Angel - Walkway and Access Systems
Walk Angel Manual - Roof Sheet Installation
Walk Angel Declaration of Conformity
Walk Angel Manual - Flat Roof System

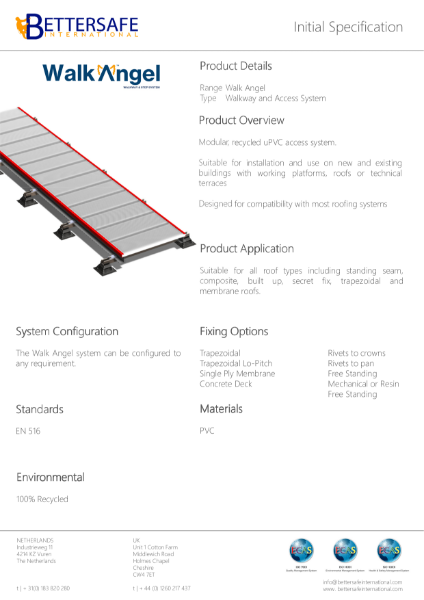

Walk Angel Initial Specification
