WTS2C28

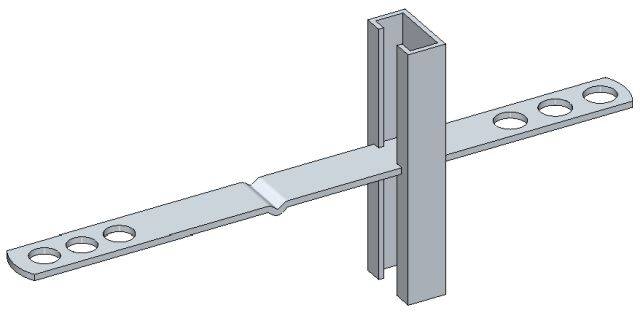

Wall ties to suit differential coursing.
To be used in conjunction with WT28FT Fastrack restraint to form the Wincro Fastrack Tie System.
Wall ties designed to overcome common site problems in differential coursing when utilizing different masonry types/ sizes or when one leaf is constructed prior to the other.
Features and benefits:
Color | Silver |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304), standard. Grade 1.4401 (316), optional. |
Shape | Other |
Length | 75 mm 100 mm 125 mm 150 mm 175 mm |
Uniclass | |
CAWS | F30/214 Cavity wall ties F30/215 Cavity wall ties used with partial fill insulation F30/24 Cavity wall ties F30/245 Channel/ slot ties F30/25 Cavity wall ties used with partial fill insulation |
Standard | To BS EN 845-1. |
Tie type | PD 6697 Type 2 (Masonry – general purpose).Guidance for specification option: Exceed requirements. |
Material | Stainless steel, grade 1.4301 (304).Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316).Guidance for specification option: Optional. |
Accessories | Not required. WIC. Guidance for specification option: Plastic insulation retaining clip. |
Wall tie size | 125 mm. 150 mm. 175 mm. 200 mm. 225 mm. |
Type | Safe ended channel tie with drip. |
Channel | 100 mm. Manufacturer guidanceRestraint channel. |
