Wall Tie – Type 1 Heavy Duty

Verified by manufacturer 2 months ago

WT1200 Type 1 safe tie

Wincro Metal Industries Ltd Variant:

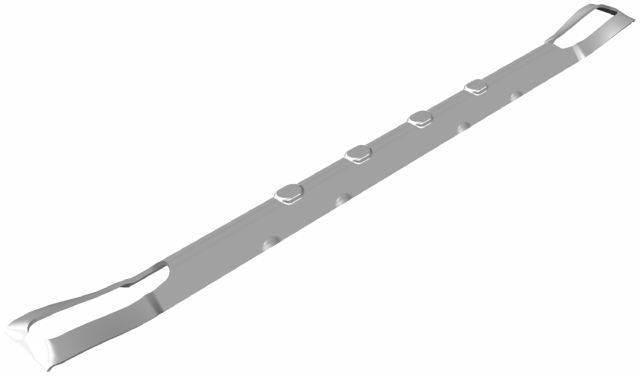

Type 1 stainless steel wall tie for brick-to-block constructions.

Jump to:
+44 (0)114 242 2171 Website

Application

Suitable for all types of buildings of any height and in any location within the United Kingdom. WT1 is suitable for cavities from 50–175 mm.

Description

Type 1 stainless steel wall tie for brick-to-block constructions, suitable for cavities from 50 to 150 mm.


Features and benefits:

  • Manufactured from corrosion resistant stainless steel.
  • Suitable for buildings of any height.
  • Can be used in conjunction with the Wincro WIC Insulation Retaining Clip.
  • Available in lengths from 200 to 300 mm.
  • Designed to replace the ‘vertical-twist tie’, it features multi drip indents enabling the tie to be used in both insulated and open cavities.
  • Meets the requirements of BS EN845-1 as a Type 1 tie and Part E of the Building Regulations for Type B in external walls.
  • CE approved.

General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304), standard.

Grade 1.4401 (316), optional.

Shape

Other

Length

200 mm

225 mm

250 mm

275 mm

300 mm

Uniclass

Pr_20_85_84_19 Cavity wall tiesPrimary

CAWS

F30/214 Cavity wall ties

F30/215 Cavity wall ties used with partial fill insulation

F30/220 Wall ties

F30/24 Cavity wall ties

F30/25 Cavity wall ties used with partial fill insulation

Specification data - Cavity wall ties

Standard

To BS EN 845-1.

Tie type

PD 6697 Type 1 (Masonry – heavy duty).

Material

Stainless steel, grade 1.4301 (304).

Guidance for specification option:

Standard.

Stainless steel, grade 1.4401 (316).

Guidance for specification option:

Optional for more corrosive environments.

Length

200 mm.

Dynamic stiffness

<113 MN/m³.

Accessories

Not required.

WIC.

Guidance for specification option:

Plastic insulation retaining clip.

Cavity size

50—75 mm.
