Wash Basin - ANMW199
Verified by manufacturer over a year ago

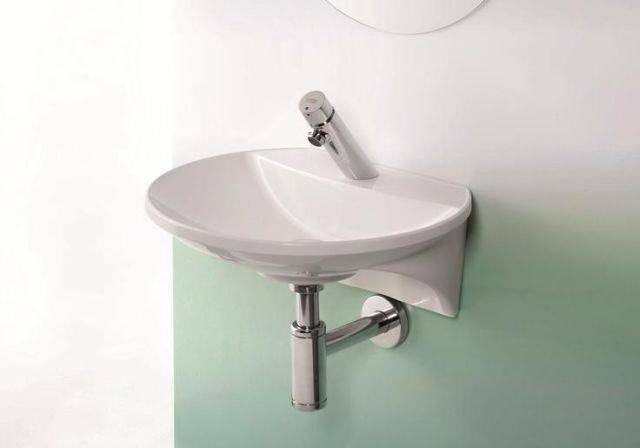

Luna children's washbasin.
Application
Children's washbasin for mounting with hanger bolts and dowels.
Description
Children's washbasin for mounting with hanger bolts and dowels.
Features and Benefits:
- Has a non-porous smooth surface (max. temperature 80˚C).
- The moulded form is round with a tangential cut and a slightly swept tap landing with storage space including tap hole and small rear upstand.
- The product is without overflow and has an integral back panel with integrated brackets and fixing holes for height adjustment up to 100 mm and mounting material included (hanger bolts and dowels).
General information
Color | White |
Finish | Gloss Guidance for specification option: High gloss gelcoat |
Material | Composite Guidance for specification option: Resin bonded mineral material. |
Length | 450 mm |
Width | 390 mm |
Height | 110 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Wall-hung washbasins
Form | Wall mounted. |
Connecting dimensions | 50 x 110 x 390 mm.Guidance for specification option: Rear panel height: 190 mm. |
Materials | |
Body | Miranit composite.Guidance for specification option: Resin bonded mineral material. |
Finish and colour | Alpine white with a high gloss gelcoat finish. |
Size | 450 x 110 x 390 mm. |
Water supply, overflow and waste holes | |
Water supply | Includes a tap hole and small rear upstand. |
Integral accessories | ZANMW900 dome waste. |
Product Reference | (ANMW199) 203.0000.128 |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
