webertherm XM panel brick system (MFD) External Wall Insulation

Verified by manufacturer 4 months ago

Saint-Gobain Weber Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

External wall insulation with non-combustible insulation board and an authentic brick-effect finish

Jump to:
BOS
+44 (0)1525 718877 Website

Application

Suitable for application onto panel substrates, this system uses non-combustible mineral fibre insulation (webertherm MFD) and is finished with weberwall brick, an authentic brick-effect finish available in 12 styles.


Use multiple finishes on the same project

This system can be used in conjunction with the webertherm XM panel silicone system (MFD) or webertherm XM panel acrylic system (MFD) for building designs which require a mix of brick and render finishes.

Description

[Formerly known as webertherm XM FM048 P]

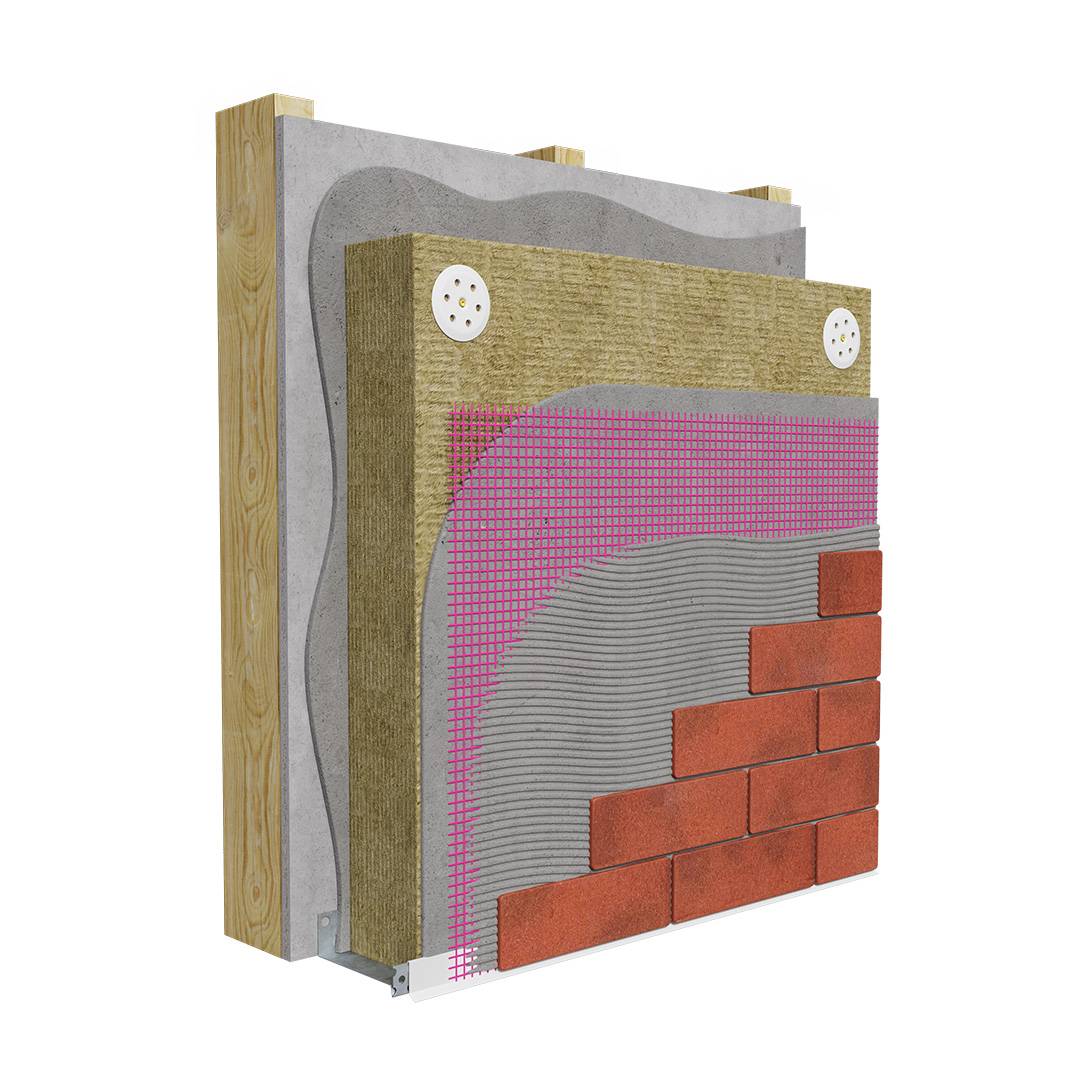

webertherm XM panel brick system (MFD) is a traditional multi-layered external wall insulation system ideal for new build projects to improve thermal performance and provide the building with an attractive façade.


This system uses non-combustible mineral fibre insulation and is finished with an authentic brick-effect finish available in 12 styles.


Suitability:

  • Suitable for use on buildings over 11 metres.

Final façade finish:

Reaction to fire:

  • A2-s1,d0 reaction to fire classification in accordance with BS EN 13501. Extended application report on request.
  • Incorporates non-combustible mineral fibre (webertherm MFD) insulation.

Certification & requirements:

  • BBA approved.
  • Able to satisfy PAS 2030:2019 and PAS 2035:2019 requirements.


General information

Color

Red

Brown

Black

Grey

Manufacturer guidance

Available in 12 standard colours.

Finish

Brick

Manufacturer guidance

weberwall brick.

Material

Mineral fibre

Uniclass

Ss_25_45_72_28 External wall insulation systemsPrimary

CAWS

M21/20 External wall insulation system . . . . . .

M21/210 External wall insulation system

Product range

External wall insulation systems / For panel
External wall insulation systems / Reaction to fire: A2-s1,d0

Specification data - External wall insulation systems

Support rails and brackets

-

Boards

-

Material

12 mm minimum thickness cement particle board for steel frame to provide appropriate support (adequate thickness and stiffness) for the webertherm XM EWI system without deflection or edge protrusions.

Insulation

-

Material

MFD.

Adhesive

weberwall brick external adhesive.

weberend LAC rapid.

Additional mechanical fixings

-

Manufacturer guidance

Fixings are dependent on wind load and pull out strength, please contact Weber for advice

Fire barriers and stops

-

Material

MFD.

Fixings

Stainless Steel (At 400 mm centres).

Movement joints

-

Form with

-

Manufacturer guidance

Please contact Weber for bespoke details.

Render carrier or reinforcement

-

Material

Balanced, open weave, alkaline resistant glass fibre meshcloth.

Mesh size

3.5 x 3.5 mm.

Render

-

Material

weberwall brick external adhesive.

Decorative finish

weberwall brick with weberwall brick pointing mortar.

Colour

Antique Red brick with Cotswold pointing mortar.

Antique Red Multi brick with Cotswold pointing mortar.

Classic Red brick with Cotswold pointing mortar.

Reclaimed Red brick with Cotswold pointing mortar.

Rural Red brick with Cotswold pointing mortar.

Rustic Red Multi brick with Cotswold pointing mortar.

Sanded Red Mix brick with Cotswold pointing.

Antique Buff brick with Cotswold pointing mortar.

Reclaimed Buff brick with Cotswold pointing mortar.

Rustic Brown brick with Grey pointing mortar.

Sanded Black brick with Grey pointing mortar.

Sanded Slate brick with Grey pointing mortar.

Manufacturer guidance

12 standard colours available.

Density

First 15 mm 160 kg/m³, balance 100 kg/m³.

Thickness range

59–209 mm.

Weight

160 g/m².

Manufacturer guidance

Standard Duty Weight.

Roll size

1 x 50 m.

Manufacturer guidance

Standard Duty Roll Size.

Fire performance:

A2-s1,d0 when classified in accordance with BS EN 13501-1.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Mineral fibre

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

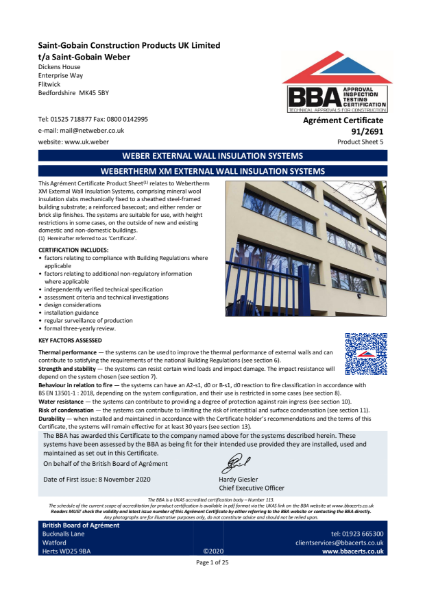

BBA Agrément Certificate (91/2691) Product Sheet 5 (webertherm XM with mechanically-fixed MFD onto steel frame construction)

BBA Agrément Certificate

BBA Agrément Certificate

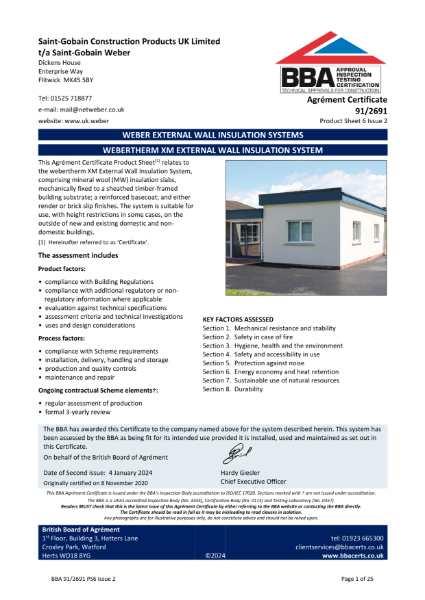

BBA Agrément Certificate (91/2691) Product Sheet 6 (webertherm XM with mechanically-fixed MFD onto timber frame construction)

BBA Agrément Certificate

BBA Agrément Certificate

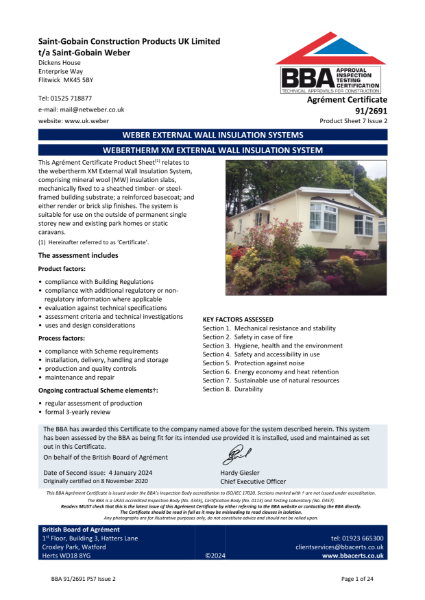

BBA Agrément Certificate (91/2691) Product Sheet 7 (webertherm XM with mechanically-fixed MFD for park homes)

EPD

EPD

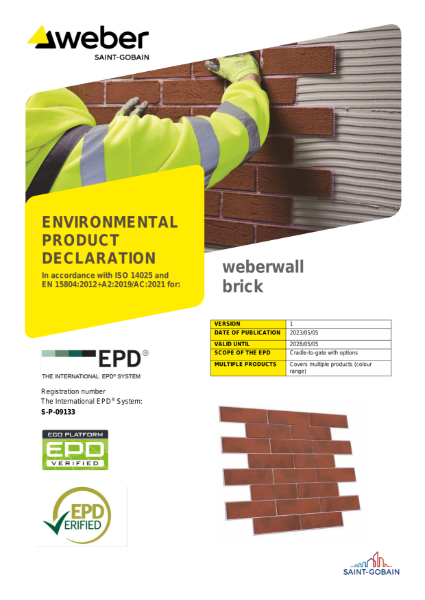

EPD Certificate (weberwall brick)

ISO 14001 Environmental Management Systems

ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001:2018

ISO 9001 Quality Management

ISO 9001:2015

Literature

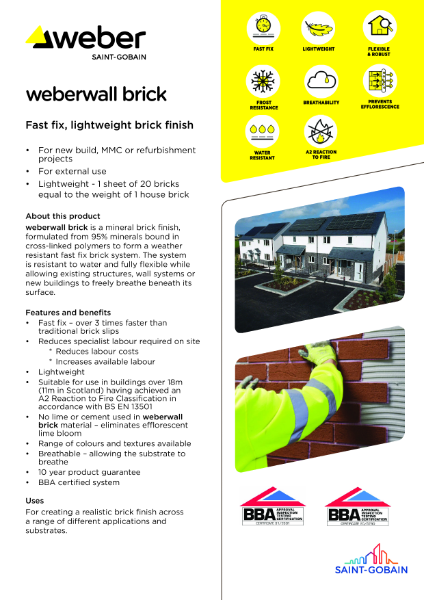

weberwall brick (External) - Technical datasheet
