Wedi Tools Shower Tray Sealing Set

Verified by manufacturer 2 months ago

Wedi Systems (UK) Ltd

Sealing set for synthetic resin, ceramic and acrylic shower trays. For the secure sealing of the entire shower tray to adjacent walls and floors.

Jump to:
+44 (0)161 864 2336 Website

Application

Suitable for sealing shower trays in floor mounted and flush to floor applications.

Description

Wedi Tools Shower Tray Sealing Set for synthetic resin, ceramic and acrylic shower trays.


Developed to create a secure 100% watertight seal between the shower tray perimeter and the adjacent wall and floor substrates.

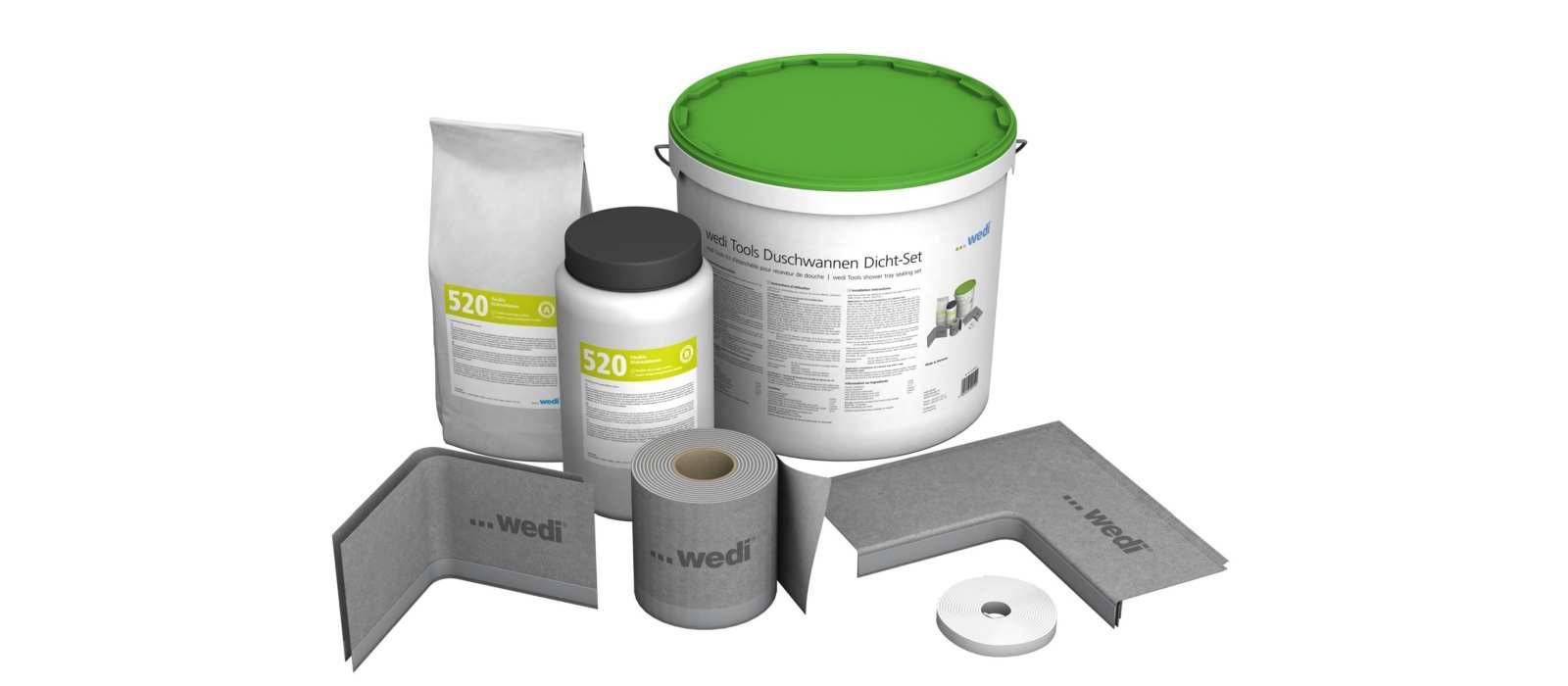

Components:

  • A two-component sealing slurry (wedi 520).
  • wedi Tools butyl sealing tape.
  • wedi Tools butyl sealing corners (wall and floor).
  • A self-adhesive decoupling strip for flexible sealing of all types of shower trays.


Features and benefits:

  • Waterproof, for universal indoor use.
  • Resistant to environmental influences and ageing.
  • Crack bridging.
  • Self-adhesive sealing components.

General information

Color

Grey

White

Finish

Unfinished

Primed

Material

Polymer-modified cement

Cementitious

Butyl

Fleece

Polypropylene

Shape

Other

Warranty description

Ten year

Uniclass

Pr_30_31_76_96 Waterproof gap filling sealantsPrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Waterproof gap filling sealants

Material

Powder component: Special cement mortar with selected admixtures.
Liquid component: Modified acrylate dispersion.
Butyl sealant tape: Carrier material: Polypropylene fleece. Membrane: Polyethylene. Self-adhesive strip: Butyl rubber.

Manufacturer guidance

Material for wedi 520 flexible sealant.

Third-party certification

Émissions dans l’air intérieur.

Curing time

Three minutes.

Guidance for specification option:

Approximate timing.

Processing

45 minutes at 20℃, 50% humidity.

Guidance for specification option:

Higher temperatures and humidity shorten the specified times, lower temperatures prolong them.

Manufacturer guidance

Processing time and temperature.

Load capacity

Can be walked on after approximately 6 hours.
Ceramic coverings can be laid after approximately 12 hours.
Can be exposed to contact with water after approximately 3 days.

Guidance for specification option:

At +20°C, 50% relative humidity.

Dimensions

Butyl sealant tape: 10000 x 120 x 1.3 mm.
Decoupling strip: 10000 x 30 x 2.5 mm.

Guidance for specification option:

Length x width x thickness.

Manufacturer guidance

Dimensions of butyl sealant tape and decoupling strip.

Water resistance

>1.5 bar.

Guidance for specification option:

For butyl sealant strips.

Manufacturer guidance

Water pressure resistance.

Consumption (per layer applied)

Sufficient for 10 m joint sealing (approximately).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Polymer-modified cement

Cementitious

Butyl

Fleece

Polypropylene
