Wetherby Modular System 2 EPS Brick Slip - Stainless Steel Brick Mesh - EWI Brick Slip System

Name: Wetherby Modular System 2 EPS Brick Slip - Stainless Steel Brick Mesh - EWI Brick Slip System
Brand: Wetherby Building Systems Ltd
SKU: ma936qoGGMFKMupuXJvNbM

Verified by manufacturer over a year ago

Enhanced EPS 70E

Wetherby Building Systems Ltd

Third party certifications:

KIWA BDA
Certificate type

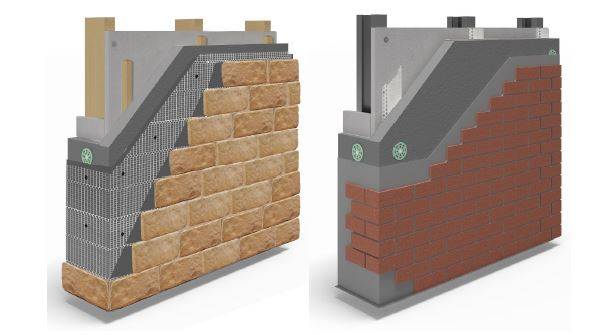

A framed KIWA BDA certified system consisting of a Enhanced EPS insulation board, basecoated, meshed, finished off with brick slip finish.

Jump to:

+44 (0)1942 717100 Website

Application

Suitable for use on the outside of steel or timber frame walls of new or existing domestic and non-domestic buildings, with height and boundary restrictions (see systems KIWA certificate for further information).

Description

A KIWA BDA certified system consisting of either vertical timber battens or cavity spacer rails, Enhanced EPS insulation board, basecoated, meshed, finished off with brick slip finish. A second option of stone slips which incorporate a stainless-steel mesh for the system.

Features and benefits:

Moisture control contribute to limiting the risk of interstitial and surface condensation.
Will resist wind-driven rain penetration across the partially ventilated cavity to the supporting wall.
Designed to adequately resist impact damage and wind loads normally encountered in the UK.
Classified as European class A1 in accordance with BS EN 13501-1 when incorporating Wetherby Cavity Spacer Rails.
Classified as European class A2-s1, d0 in accordance with BS EN 13501-1 when incorporating timber battens.
Improves the thermal performance of external walls and can contribute to satisfying the requirements of the National Building Regulations.
Service life durability of the System will depend on the environment (operating conditions) in which the System will be used.

Preparation:

All sheathing boards must achieve minimum pull out requirements to be suitable for the system application.
The substrate to receive the WBS system must be completely dry and not damaged by rain/ frost to reduce the board performance in any way.
The board manufacturer should be consulted and pull-out tests redone before continuing if rain/ frost damage is evident.
The substrate shall be clean and structurally sound.
Sheathing boards /panel substrates should be line and level ensuring RagRails can be installed flush to the substrate.
Slight variances in the substrate can be overcome by using suitable packers to ensure the system is installed line and level.
If the walls are not line and level, the fixing lengths must be checked to ensure adequate embedment into the sheathing board /frame substrate. This will need to be confirmed on site prior to the installation of the Wetherby system.
Sizing of flashings, trims and beads may also require alterations.
Where packing out of the RagRail or Timber Batten is required, the fixing lengths may need to be increased. This will need to be confirmed on site prior to the installation of the Wetherby system.
All sheathing boards must be securely fixed, correctly jointed and sealed (where required) as per the board manufacturer instructions.
Treatment to Existing Timber/ Steel Cladding – Remove any defective areas of the existing substrate and where required make repairs ensuring the surface is ready to receive the EWI system.
The existing walls are to be cleaned to the satisfaction of the Contract Administrator, to remove any friable material, algae or lichen.
WBS Biocidal Wash can be used to treat areas of moss, algae and mould growth.

General information

Color	Brown Red Grey White
Finish	Brick
Material	Brick
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_45_72_70 Rail-fixed external wall insulation systemsPrimary
CAWS	M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system

Specification data - Rail-fixed external wall insulation systems

System performance	Thermal Performance. Guidance for specification option: The systems can improve the thermal performance of external walls and can contribute to satisfying the requirements of the National Building Regulations. Strength and Stability. Guidance for specification option: The systems has adequate strength and is designed to adequately resist impact damage and wind loads encountered in the UK. When the system incorporates a stone slip finish, the system can only be applied at ground and first floor level (maximum 6 m in height). System Tested to BS EN 13501-1. Guidance for specification option: Achieves a value of B-s1, d0 reaction to fire classification. Risk of Condensation. Guidance for specification option: The system can contribute to a limiting risk of interstitial and surface condensation. Durability. Guidance for specification option: When installed and maintained in accordance with the Certificate holders recommendations and this Certificate, the system will remain effective for at least 30 years. Further Information. Guidance for specification option: For further information on the above points visit the system KIWA BDA Certificate.
Support rails and brackets	-
Material	15mm RagRail Cavity Spacer Rails. Guidance for specification option: RagRails are to be fixed down one side of the rail and through the centre of the rail hitting the studs at 300 mm centres. The above would all be subject to Job Specific Detailing, including Pull Out Tests and Wind Load Calculations. 25mm RagRail Cavity Spacer Rails. Guidance for specification option: RagRails are to be fixed down one side of the rail and through the centre of the rail hitting the studs at 300 mm centres. The above would all be subject to Job Specific Detailing, including Pull Out Tests and Wind Load Calculations. 25mm Timber Battens. Guidance for specification option: Timber Battens are to be fixed at every 150 mm centres. The above would all be subject to Job Specific Detailing, including Pull Out Tests and Wind Load Calculations. Manufacturer guidance The RagRails or Timber Battens help to create a drainage cavity between the Sheathed frame and External Wall Insulation. This cavity will then allow for any moisture located within these areas to track down and drain out, either from the bottom of the system or into specifically designed drainage boxes. Rails or Timber Battens should be installed vertically at 600 mm centres and around windows ensuring the insulation boards are fully supported.
Bracket fixings	LS 5.5 (steel frame). R-QCP (timber frame). Manufacturer guidance The actual fixings of the Rail/ Battens will need to appropriate for the substrate that the system will be installed over. Fixings and the frequency of them will be subject to pull out tests and wind load calculations.
Base boards	-
Material	Framed substrate sheathed using Wetherby approved sheathing board. Guidance for specification option: The framed substrate must be sheathed using a Wetherby approved sheathing board ensuring that they achieve minimum pull out requirements to be suitable for the systems application.
Fixings	Fix boards in accordance with site conditions and manufacturer instructions.
Insulation	-
Material	Enhanced EPS 70E.
Fixings	TKR Screw Range. R-QCP Screw Range. Manufacturer guidance The Enhanced EPS Insulation Board are initially fixed with WBS approved fixings, combined with a suitable washer. The fixings frequency, type and length would be subject Pull-Out Tests and Wind Load Calculations.
Fire barriers and stops	-
Material	Stone Wool/ Horizontal Lamella Fire Barriers. Guidance for specification option: Mechanically fix fire breaks horizontally at agreed locations using stainless steel fixings and washers (as per Wetherby Detail Drawings). Fire breaks must be fully supported by the cavity spacer rails/ timber battens to ensure stability. Stone Wool/ Vertical Lamella Fire Barriers. Guidance for specification option: Mechanically and adhesively fix fire breaks vertically direct back to the sheathing board at agreed locations and at a rate of four stainless steel fixings per board minimum. Tenmat Intumescent Strip. Guidance for specification option: Intumescent strips must be screw fixed in place at 250 mm maximum centres, using a non-combustible screw with a head of no more than 11.5 mm diameter. They should be mechanically fixed at agreed locations to form horizontal, and if specified, vertical fire breaks in the cavity. or fixing lamella/ stone wool fire barriers, an adequate stainless steel washer will be required, please contact WBS for further information regarding this.
Fixings	TKE Range – Steel Frame. Guidance for specification option: Typically used to fix fire barrier and intumescent strips to their agreed locations (Rail/ Sheathing Board/ Steel Frame). R-UCF Range - TImber Frame. Guidance for specification option: Typically used to fix fire barriers to their agreed locations (Timber Batten / Sheathing Board/ Timber Frame).
Beads and trims	Not required. Deflector beads.
Movement joints	-
Form with	WBS Stainless Steel Movement Joints. WBS PVC Movement Joints. WBS Stainless Steel Surface Mounted Render Stop Beads. WBS PVC Surface Mounted Render Stop Beads. Manufacturer guidance All structural movement joints must be mirrored through the EWI System. As a minimum, a render system should incorporate the movement joints every 7–10 m vertically and at every other floor level horizontally. Structural Engineers will be required to confirm how much movement will occur and where movement joints are located in the substrate and give an indication where the joints will need to be installed. All movement joints and surface render beads must be fully meshed in, applying silicone sealant where necessary.
Sealant	Compriband sealing tape must be installed between the insulation boards.
Render carrier or reinforcement	-
Material	WBS Alkali-resistant scrim cloth incorporated into scrim adhesive. Stainless Steel Brick Mesh applied over first pass of scrim adhesive.
Mesh size	Alkali Resistant Mesh 50 m² (roll). Stainless Steel Brick Mesh – 1195 x 819 mm. Stainless Steel Stone Slip Mesh – 1195 x 819 mm.
Fixings	TKE screw range. Guidance for specification option: Combined with the relevant cap/ washer this fixing is typically used for the main fixings installed through the mesh Normally specified when fixing into the RagRail/ Cavity Spacer Rail. R-UCF screw range. Guidance for specification option: Combined with the relevant cap/ washer this fixing is typically used for the main fixings installed through the mesh. Only specified specify when fixing into the timber batten. Manufacturer guidance Secondary mechanical fixings are required on all projects 2 storeys and above at a rate of 1 per m² as per BRE Report BR135:2013. NHBC require in all cases that a minimum of one non-combustible fixing is installed through the reinforcement mesh per insulation board, in addition to other fixings. Install secondary fixings through the first pass of wet scrim adhesive and WBS Alkali Resistant Scrim Cloth. 100 x 100 mm scrim patches to be installed over each secondary fixing head. NHBC require in all cases that a minimum of one non-combustible fixing is installed through the reinforcement mesh per insulation board, in addition to other fixings. All fixing types, lengths and frequency subject to pull out tests and wind load calculations. Finally scratch scrim adhesive horizontally in preparation for the Wetherby 9–25 mm Brick Slips. Temporarily position WBS Brick Slip Mesh over the insulation boards, align the sheets using a string line or level leaving a 5 mm gap horizontally between sheets and ensuring the correct spacing for the slips vertically. Temporarily fix the sheets with WBS Firtree fixings. Once the sheets are in place, mechanically fix the mesh at a rate of 12 fixings per sheet as per the Wetherby fixing pattern (please contact Wetherby regarding the fixing pattern of the brick slip mesh). Ensure fixings are installed at maximum 300 mm centres at building corners and around any openings.
Render	-
Material	Brick Slip Adhesive. Guidance for specification option: Trowel apply full spread of Brick Slip Adhesive to the scrim adhesive. Use a 10 mm notched trowel to ensure minimum 5 mm thickness is achieved. WBS 9-25mm Brick Slips. Guidance for specification option: WBS Brick Slips should be cleaned before application ensuring all slips are free of residue. Whilst the brick slip adhesive is wet the brick slips can be firmly pushed into the adhesive. Brick slips should be installed line and level and staggered leaving a consistent joint. NB. Brick Slips are manufactured using raw natural ceramics and will inevitably vary in nature. Natural variations in colour, texture and dimensions may be present. It is advisable to mix slips from at least 5 boxes to minimize grouping of colours. Any product deemed faulty or out of tolerance should not be applied and should be reported to Wetherby immediately. WBS Pointing Mortar. Guidance for specification option: Once brick slips have set, point up with WBS Pointing Mortar using a pointing gun. Shape mortar to desired joint type using a pointing trowel. Care should be taken not to apply WBS Pointing Mortar onto the brick slip face or pistols as this can be very difficult to remove. Once pointing mortar is dry, brush down the wall to remove all loose mortar etc.
Decorative finish	-
Colour	- Manufacturer guidance See brick slip brochure and insert requirement.
System accessories	WBS Sealing Tape: Pre-compressed, expanding waterproof sealing tape. WBS Firtree Fixings. WBS Jointing Pieces. WBS End Caps. WBS EVO-STIK Silicone Sealant. WBS APU Bead. Roof verge extenders. Under and over cills. Cill extenders. End stop profiles. Guidance for specification option: Insert requirement: Available in stainless steel, PVC-U or organic polyester powder-coated galvanized steel. Corner mesh profiles. Guidance for specification option: Insert requirement: Available in stainless steel, PVC-U or organic polyester powder-coated galvanized steel. Expansion joint profiles. Guidance for specification option: Insert requirement: Available in stainless steel, PVC-U or organic polyester powder-coated galvanized steel.
Samples required	Approved samples required. Guidance for specification option: Submit samples of Wetherby Dash for approval. Keep approved samples on site for the duration of the contract for inspection and comparison purposes. The manufacturer offers a product sample service, providing a small sample of the finished build-up, colour and brick slip type before a final decision is made. Contact the manufacturer for further information.
Execution	Install system as per manufacturer’s instructions. Guidance for specification option: Securely fix Wetherby bellcast bead above DPC level at base of the system. Mechanically fix bellcast bead at max. 300 mm centres, 50 mm from each end. WBS 3756 base rail connectors should be used to join the tracks. Drainage holes must be drilled into the back of the starter track to allow the cavity to drain. Install 11 mm holes at 150 mm centres to allow for drainage and partial ventilation. Any gaps behind the basetrack allowing free air movement behind the insulation should be sealed appropriately.
System completion	Inspection, documentation, O&M manuals and data sheets. Guidance for specification option: Inspection of completed installation. Documentation for insulated render systems. O&M manuals and data sheets relevant to the system installed.

Third-party certification	NHBC.
Dimensions	1200 x 600 mm.
Density	15 kg/m³.
CompressiveStrength	70 kN/m² (minimum). Guidance for specification option: At 10% deformation. Manufacturer guidance To BS EN 13163.
ThermalConductivity	0.032 W/m·K. Guidance for specification option: To BS EN 13163.
Reaction to fire classification	Class B-s1, d0 to BS EN 13501-1: 2002. Guidance for specification option: Wetherby Brick Slips/ Pistols (9 mm thick). Wetherby Brick Slips/ Pistols (25 mm thick). Wetherby Stone Slips. Wetherby Rock Panel Stone. Class E to BS EN 13501-1: 2002. Guidance for specification option: EPS.
SurfaceSpreadOfFlame	Flame Retardant Grade.
Environmental performance	CFC/ HCFC Free.
Ozone depleting potential (ODP)	Zero.
Global warming potential (GWP)	Less than 5.
Board thickness	50–240 mm. Guidance for specification option: Thicknesses compatible with the system certification range between 50–240 mm; insert requirement.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe

Third party certifications

KIWA BDA

Wetherby KIWA BDA Modular - BAW-20-146 (Stone Wool and Brick Slips / Stone Slips with Stainless Steel Mesh)
