YELOfon® HD5 - High Impact Acoustic Under Screed Layer

Verified by manufacturer 6 months ago

Cellecta Ltd

High performance, closed cell acoustic flooring insulation for concrete floors.

Jump to:
+44 (0)1634 296 677 Website

Application

Acoustic flooring insulation for concrete floors.

Description

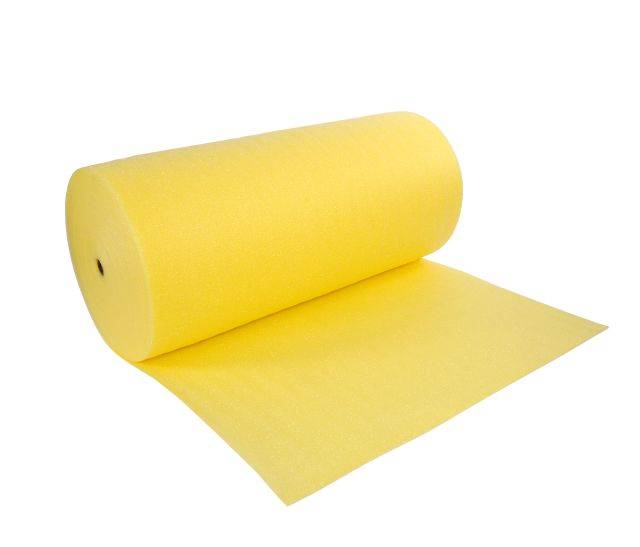

5 mm thick lightweight, non-cross polyethylene foam, designed to reduce impact noise through concrete floors with a floating screed.


Features and benefits:

  • When used in conjunction with HEXATHERM XFLOOR and DECKfon Ultralay 5, it is robust detail E-FC-8 compliant.
  • High impact sound deadening properties.
  • Ideal for floors incorporating an underfloor heating system.
  • Easy to cut and install.

General information

Color

Yellow

Finish

Smooth

Material

Polyethylene

Guidance for specification option:

Closed-cell, non-cross-linked

Shape

Rectangle

Length

75000 mm

Width

1500 mm

Height

5 mm

Uniclass

Pr_25_71_63_27 Extruded polyethylene (PE) foam boardsPrimary

CAWS

M10/290 Floating construction

M10/40 Floating construction

M11/220 Mastic asphalt floor underlay

Product range

Acoustic Solutions / YELOfon

Specification data - Extruded polyethylene (PE) foam boards

Standard

To BS EN 16069.

Material

Polyethylene.

Guidance for specification option:

Closed-cell, non-cross-linked.

Thermal conductivity (maximum)

0.045 W/m·K.

Thickness

5 mm.

Product Reference

YELOfon® HD5

Weight

<0.15 kg/m² (30 kg/m³).

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %
