Zip HydroTap Accessibility Touch Free - Water Tap

Verified by manufacturer 2 months ago

Zip Water Third party certifications:
  • EPD

    EPD

    Certificate type

  • WRAS

    WRAS

    Certificate type

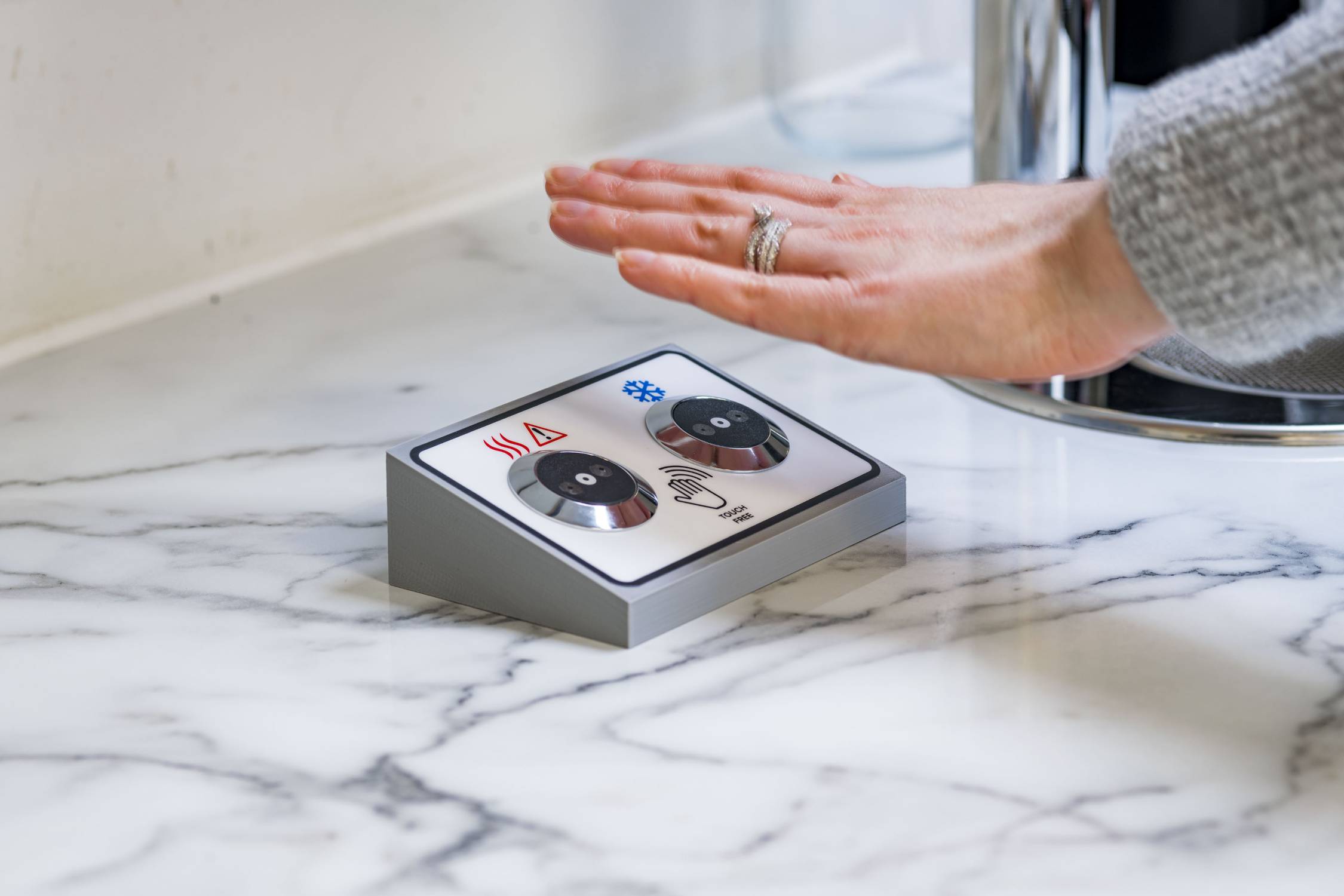

Touch free controller to enable hygienic access to instant filtered boiling and chilled water for visually impaired, wheelchair and limited dexterity users.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for a variety of environments including: offices and workplaces, healthcare, education, industrial and institutions, retail, hotels, restaurants, bars and cafes, leisure, sports and stadia, local authority and public buildings.

Description

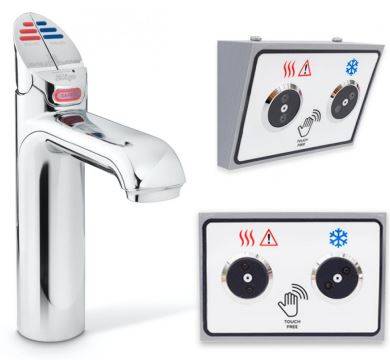

A tap providing instant filtered boiling and chilled water with a remote control that can be installed in a position of choice to ensure easy positioning for wheelchair access.


Features and benefits:

  • Accessible operation.
  • Contactless - 100% touch-free infrared sensors are activated when hand movements are detected between 15–50 mm of the sensor area.
  • Customizable - two fascias are provided - giving users a choice of light or dark panel installs.
  • Choice of install location.
  • Slanted design - Prevents accidental dispense when installed in front of a cupboard.
  • Advanced filtration - Market leading 0.2 micron MicroPurity™ filtration technology filters out dirt, lead, cysts and microplastics, providing 25 times more effective filtration than a standard water filter jug.
  • Environmentally conscious operation - The HydroTap employs water-conserving air-cooled chilling technology with 0% global warming potential R290 refrigerant and energy saving sleep modes for maximum efficiency.

General information

Color

Silver

Finish

Chrome

Material

Steel

Stainless steel

Shape

Other

Length

520 mm

Width

500 mm

Height

373 mm

Warranty description

Two year

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N11/30 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

Product range

Instant Boiling and Chilled Tap

Specification data - Instant boiling and cold water taps

Water

Boiling and chilled.

Duty

-

Hot cups

160.

Cold cups

175.

Dimensions

373 x 500 x 520 mm.

Manufacturer guidance

(Height x width x depth) Unit:

Electrical connection

-

Power

Manufacturer’s standard.

Guidance for specification option:

  • Command centre power rating: 2.13 kW at 230 V a.c.
  • Voltage supply: 13 amps.
  • Power supply requirements: 1 x 13 amp socket outlet.
  • Cable length: 1.8 m fitted with UK standard three-pin plug.
  • Installation: Must comply with current IEE regulations.

Voltage

230 V.

Water inlet

Cold feed.

Guidance for specification option:

  • Supply connection (hot and cold): 1 x isolated 1/2" BSP fitting (flexible supply hoses included).

Manufacturer guidance

(supply required):

Safety features

Boiling isolation, cool touch tap and safety lock.

Guidance for specification option:

The boiling point is factory set to 98°C, to avoid spluttering steam.

WaterPressureRange

1.7-5 bar.

Design

Bright chrome.

Construction

Stainless steel.

Manufacturer guidance

Tank material:

Installation

35 mm.

Guidance for specification option:

Installation must comply with current IEE regulations.

Manufacturer guidance

hole cut size:

Rotation

Fixed.

Filtration

0.2 µm filter cartridge.

Flow rate

4 L/m.

RefrigerantClass

R290.

Temperature

Boiling: 98°C; chilled: 6-10°C.

Guidance for specification option:

Factory temperature.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

197 kg CO₂ eq/m²

Recyclability

99.8%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration

WRAS

WRAS

WRAS HydroTap G5 BC

WRAS

WRAS

WRAS HydroTap G5 BCS
