CWR1 Bike Rack
Verified by manufacturer over a year ago
QA Certificate
Certificate type
Wall-mounted bike rack.
Application
Bicycle rack.
Description

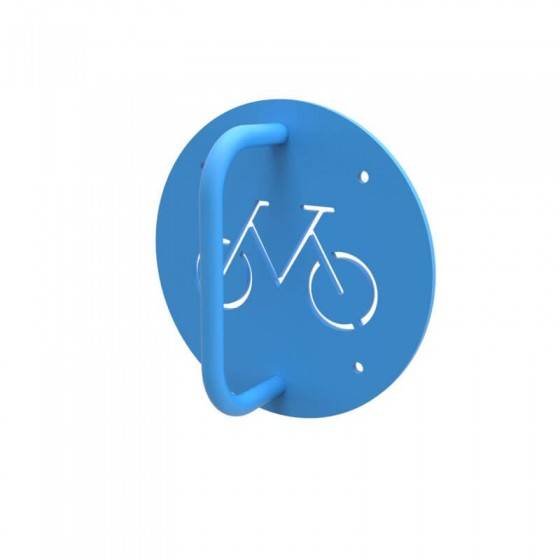

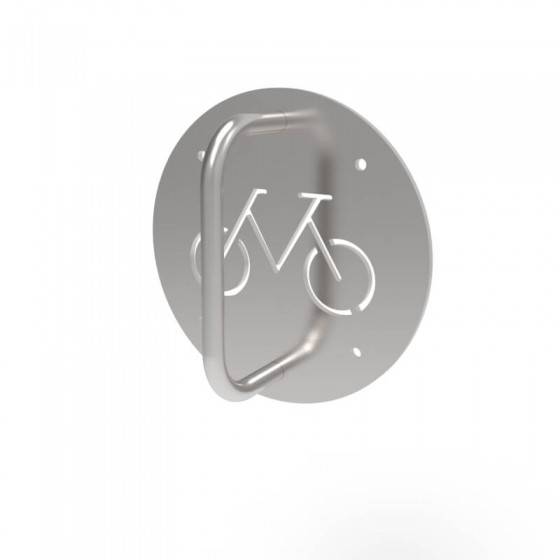

The Cora CWR1 makes the most of challenging and unused wall areas by providing a secure anchor point for bikes to lock to. Bicycle simply leans against the wall and lock up to the CWR1.
General information
Color | Manufacturer guidanceAvailable in stainless steel, blue powder coat (in stock) and other standard Cora colours. |
Finish | Powder-coated or Stainless steel. |
Material | Heavy duty high quality steel or 304 Stainless steel. |
Size | Manufacturer guidance250 mm diameter base plate. |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures |
SpecPack | 02870 Unit Pavers |
Specification data - Wall-mounted cycle stands
Standard | To AS 2890.3:2015. |
Material | Carbon steel.Stainless steel, grade 304. |
Form | D-shaped bracket. |
Dimensions | |
Width | 250 mm. |
Finish | |
Coating | Powder-coated to AS 4506.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Blue.Yellow.Red.Green.Grey.Black.Manufacturer guidanceBlue is the standard powder coat colour, alternatively, select from the standard colour range. |
Fixings | 4 x M8 x 40 mm pin head torx security screws with tool, washers and nylon wall plugs included. |
Supply | Fully welded and assembled. |
Green Certification | Green Star, Eco-specifier global verified. |
Third party certifications
Literature
CWR1 Brochure
Cora Bike Rack Product Finishes
