E3VR Bike Rack Series
Verified by manufacturer over a year ago
E3VR
E3VR
QA Certificate
Certificate type
Vertical wall or pole mounted bike rack.
Application
Bicycle rack.
Description

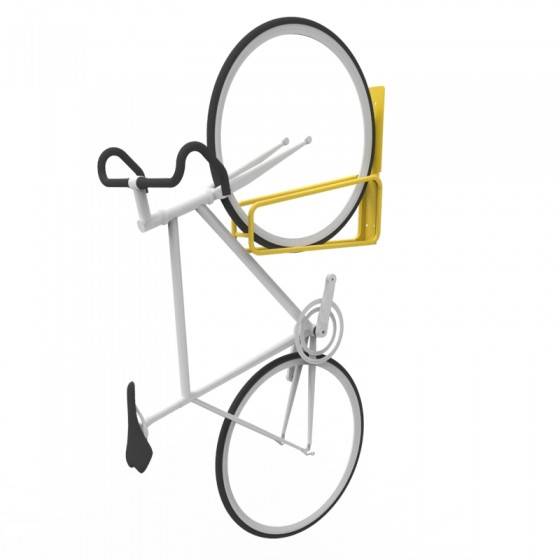

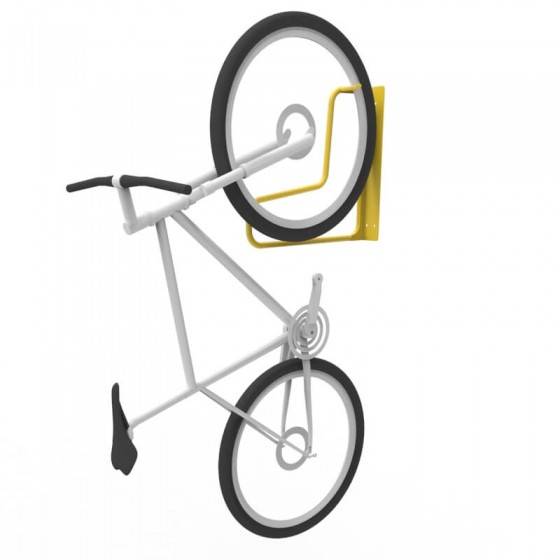

E3VR is Cora’s latest vertical bike rack design, available in several models: wheel hold, wheel hook (for fenders), 45° angled and dynamic moving racks. The E3VR gently cradles the front wheel for safety of the bike and easy access parking. It can be mounted directly to existing walls or to the E3VR-P mounting post.
General information
Color | Manufacturer guidanceAvailable in galvanized, stainless steel, yellow powder coat (in stock) and other standard Cora colours. Custom colour available for larger orders. |
Finish | Powder-coated, Galvanized or Stainless steel. |
Material | Heavy duty high quality steel. |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures |
SpecPack | 02870 Unit Pavers |
Specification data - Wall-mounted cycle stands
Standard | To AS 2890.3:2015.Manufacturer guidanceRemove this item if AS 2890.3 compliance is not required. |
Material | Carbon steel.Stainless steel, grade 304. |
Form | Vertical rack. |
Number of supports | 3. |
Dimensions | |
Length | |
Height | |
Finish | |
Coating | Galvanized.Powder-coated to AS 4506.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Yellow.Guidance for specification option: RAL 1023. Blue.Guidance for specification option: RAL 5005. Red.Guidance for specification option: RAL 3020. Green.Guidance for specification option: RAL 6016. Grey.Guidance for specification option: RAL 9006. Black.Guidance for specification option: RAL 9005. Manufacturer guidanceYellow is the standard powder coat colour, alternatively, select from the standard colour range. Custom colour available for larger orders. |
Installation | Single rack, wall-mounted. Single rack, pole-mounted. Double rack, pole-mounted. Manufacturer guidanceFor pole-mounted option, assembly to E3VR-P pole required. |
Installation height | Alternating heights. Uniform heights. Manufacturer guidanceTo comply with AS2890.3:2015, 500 mm spacings are required for alternating heights. Spacings of 400-500 mm are possible where compliance with AS2890.3:2015 is not required. 700 mm is required where racks do not alternate in height. |
Supply | Fully welded and assembled. |
Fixings | 3 x M8 x 40 mm pin head torx security screws with tool, washers and nylon wall plugs included. |
Green Certification | Green Star, Eco-specifier global verified. |
Accessories | E3VR-P Galvanized mounting post. Guidance for specification option: Offers fixing of one or two E3VR Series bike racks to a stand alone post. Use where wall mounting is not available, or in order to eliminate the need of building costly walls or custom framing. Install E3VR racks on a single side or opposite sides of the post. |
