CWR2 Bike Rack
Verified by manufacturer over a year ago
QA Certificate
Certificate type
Wall-mounted bike rack.
Application
Bicycle rack.
Description

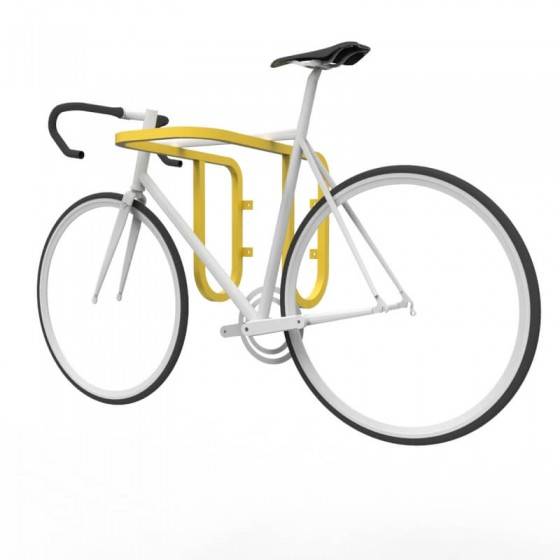

CWR2 holds one to two bikes in a horizontal position at any height such as above a car bonnet. Each bike can be locked separately, however, the front bike must be removed to access the rear bike.
General information
Color | Manufacturer guidanceAvailable in stainless steel, yellow powder coat (in stock) and other standard Cora colours. |
Finish | Powder-coated or Stainless steel. |
Material | Heavy duty high quality steel or 304 Stainless steel. |
Size | Manufacturer guidance600 x 345 x 475 mm. |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
NATSPEC National Classification System | 0552 Metalwork - Fabricated 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures |
SpecPack | 02870 Unit Pavers |
Specification data - Wall-mounted cycle stands
Standard | To AS 2890.3:2015.Manufacturer guidanceCompliant for one bike. |
Material | Carbon steel.Stainless steel, grade 304. |

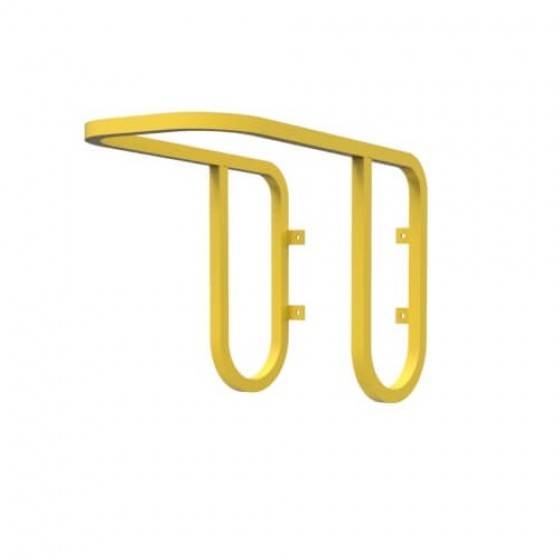

Form | Double arm bracket. |
Number of supports | 2. |
Dimensions | |
Width | 345 mm. |
Length | 600 mm. |
Height | 475 mm. |
Finish | |
Coating | Powder-coated to AS 4506.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Yellow.Blue.Red.Green.Grey.Black.Manufacturer guidanceYellow is the standard powder coat colour, alternatively, select from the standard colour range. |
Fixings | 4 x M8 x 40 mm pin head torx security screws with tool, washers and nylon wall plugs included. |
Supply | Fully welded and assembled. |
Green Certification | Green Star, Eco-specifier global verified. |
Third party certifications
Literature
CWR2 Brochure
Cora Bike Rack Product Finishes
