Flo-Channel® - Underground stormwater tank

Verified by manufacturer over a year ago

Single

Atlantis Variant:

Atlantis modular water tank.

Jump to:
(02) 9417 8344 Website

Application

Ideal for sustainable urban drainage applications such as:

  • Swales.
  • Biofilters.
  • Trench drainage.

Description

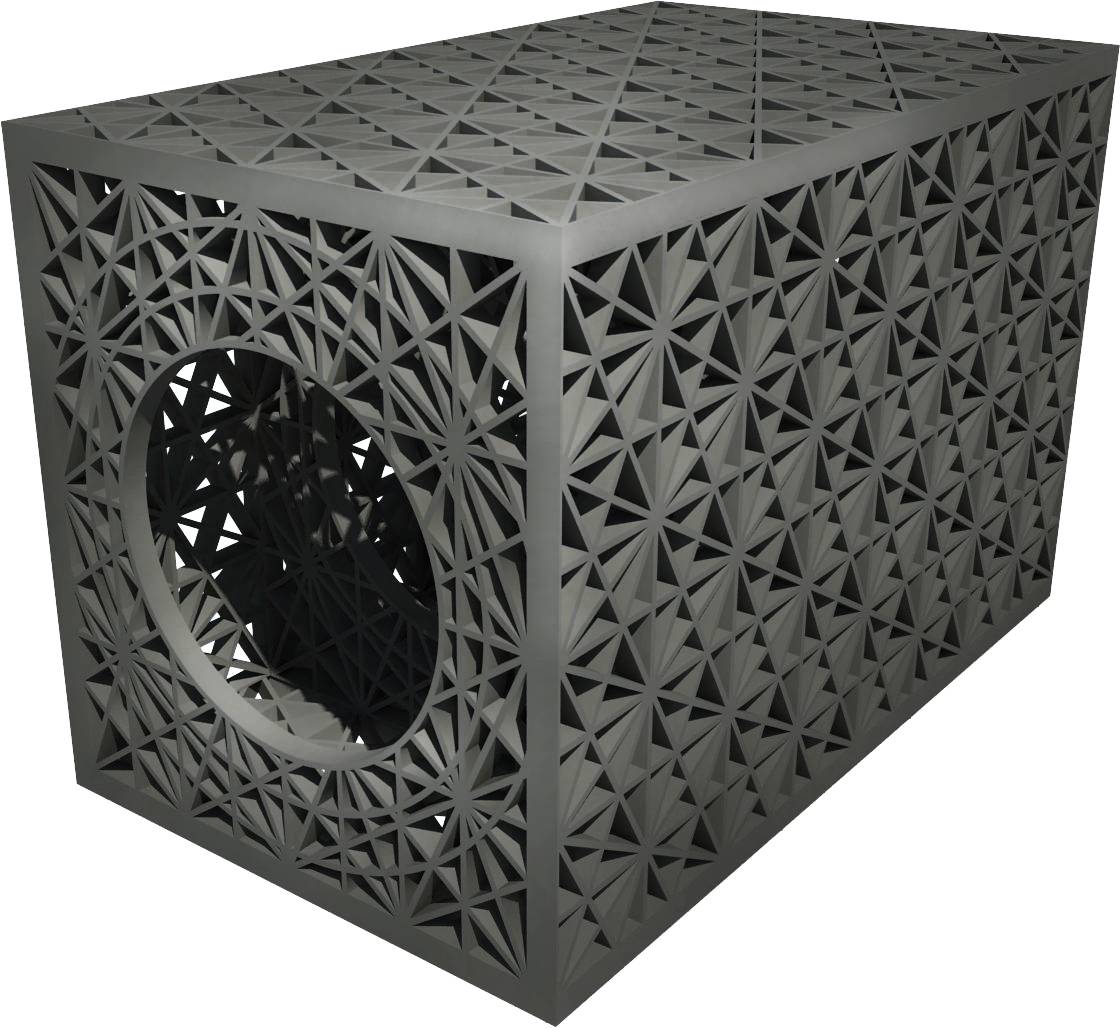

The Atlantis Flo-Channel® is a high flow rate structural modular channel system that provides designers with an effective product to facilitate the design of sustainable urban drainage applications and address water quality.


The Atlantis Flo-Channel® and the ability to move water at a high flow rate is ideal for sustainable urban drainage applications such as swales, bio filters, trench drainage and many more applications.

General information

Color

Black

Finish

Smooth

Material

Polypropylene

Shape

Rectangle

Length

685 mm

Width

408 mm

Height

450 mm

Warranty description

Seven year

Uniclass

Pr_70_55_76_34 Geocellular modular plastics storage unitsPrimary

NATSPEC National Classification System

0825 Rainwater Storage Systems

0224 Stormwater - Site

SpeedSpec

02630 Storm Drainage

02538 Grey Water Collection and Reuse

SpecPack

02630 Storm Drainage

Specification data - Geocellular modular plastics storage units

Material

Polypropylene.

Guidance for specification option:

85% Recycled polypropylene, 15% Atlantis Proprietary selected materials.

Colour

Black.

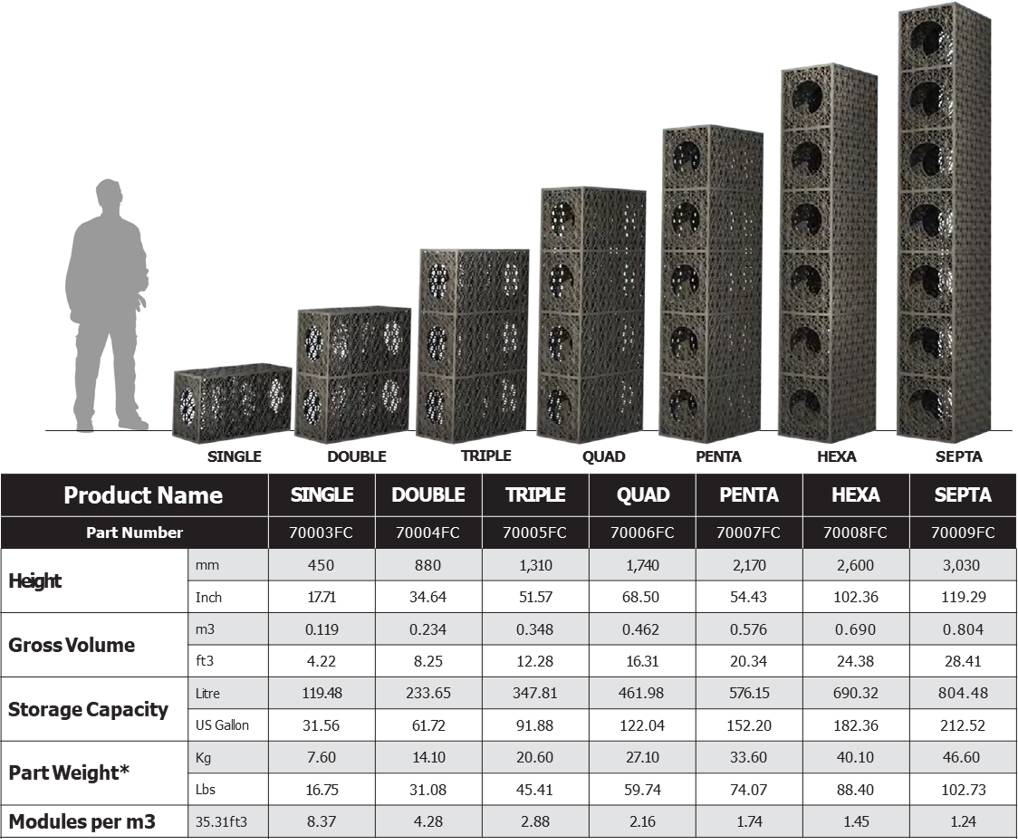

Unit size

-

Length

685 mm.

Width

408 mm.

Height

450 mm.

Capacity

119.48 L.

Weight

7.60 kg.

Environmental performance

-

Recycled content

85%.

Guidance for specification option:

Recycled content for polypropylene and 15% proprietary materials.

Part Number

70003FC.

Volume

0.119 m³.

Sustainability data

Contains Red List materials

No

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Manufacturer guidance

  • 85% Recycled Polypropylene
  • 15% Propriety Selected Materials
