Titan Tank® - Underground Stormwater Tank
Verified by manufacturer over a year ago
Atlantis modular water tank.
Application
Ideal for mining, airports, military applications.
Description
The Atlantis Titan Tank® is an underground tank system specially created for heavy loads, such as mining, airports, military applications, such as applications in high water table areas. This system supports infinite height, width and length as a true modular water tank system.
Titan Tank® modules provide a 52mm thick rigid cover interlock system. Tank volume is achieved by building cumulative layers from the tank footprint to obtain the desired volume.
The Titan Tank® is easy to build and provides a highly durable underground tank system.
General information
Color | Black |
Finish | Smooth |
Material | Polypropylene Guidance for specification option: 85% Recycled polypropylene, 15% Atlantis Proprietary selected materials. |
Shape | Rectangle Square |
Warranty description | Seven year |
Uniclass | |
NATSPEC National Classification System | 0825 Rainwater Storage Systems 0224 Stormwater - Site |
SpeedSpec | 02630 Storm Drainage 02538 Grey Water Collection and Reuse |
SpecPack | 02630 Storm Drainage |

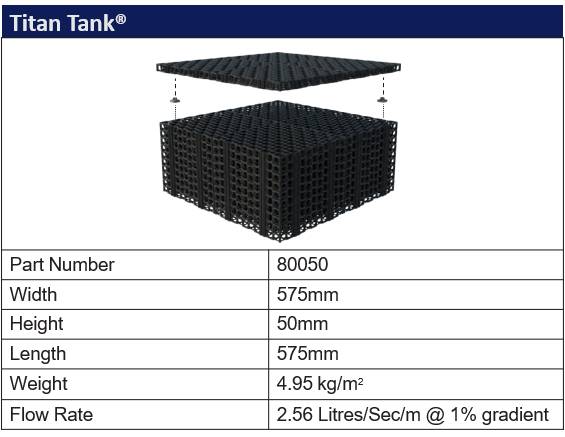

Specification data - Geocellular modular plastics storage units
Material | Polypropylene.Guidance for specification option: 85% Recycled polypropylene, 15% Atlantis Proprietary selected materials. |
Colour | Black. |
Unit size | |
Length | 575 mm. |
Width | 575 mm. |
Height | 50 mm. |
Weight | 1650 g.Guidance for specification option: Part weight. 4.95 kg.Guidance for specification option: Weight per square metre. |
Environmental performance | |
Recycled content | 85%. |
Part Number | 80050. |
Modules | 3 pieces per m³. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % Guidance for specification option: Recycled Polypropylene 15% Propriety Selected Materials. |
