Flo-Vault® - Underground stormwater tank
Verified by manufacturer over a year ago

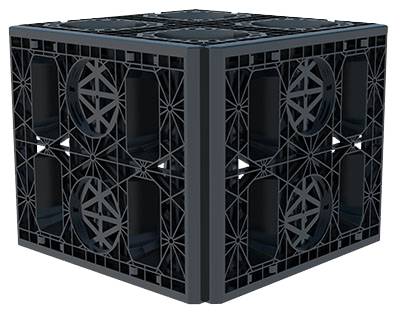

Atlantis modular water tank.
Application
Suitable for use as:
- Infiltration or absorption tanks.
- Rainwater harvesting tanks.
- Storm water detention, attenuation tanks or O.S.D Onsite Detention.
- Underground storm water channels.
- Underground drainage.
- Lightweight structural fill.
- Underground reservoirs.
- Aquifer recharge.
Description
The Atlantis Flo-Vault® is a structural lightweight modular tank system used to construct underground water storage for various applications. The modular nature of the system allows for the easy construction of tanks of any volume and can be designed to accommodate specific site conditions.
General information
Color | Black |
Finish | Smooth |
Material | Polypropylene |
Shape | Rectangle |
Length | 575 mm |
Width | 575 mm |
Height | 500 mm |
Warranty description | 11 year |
Uniclass | |
NATSPEC National Classification System | 0825 Rainwater Storage Systems 0224 Stormwater - Site |
SpeedSpec | 02630 Storm Drainage 02538 Grey Water Collection and Reuse |
SpecPack | 02630 Storm Drainage |

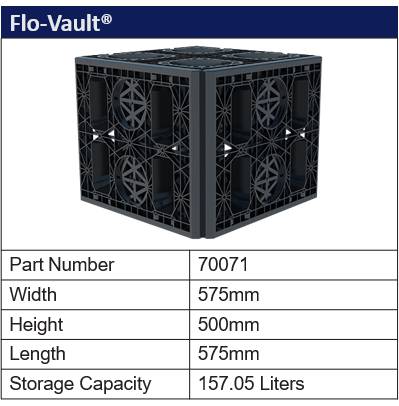

Specification data - Geocellular modular plastics storage units
Colour | Black. |
Unit size | |
Length | 575 mm. |
Width | 575 mm. |
Height | 500 mm. |
Weight | 650 grams. |
Volume void | 95 %. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Malaysia |
Country of product manufacture | Malaysia |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % Manufacturer guidance
|
