J200 HA
Verified by manufacturer over a year ago
Carbon steel rising bollards.
Application
Passages regulation in accesses with low vehicular flow, like reserved parking areas for offices, residential areas, commercial sites.
Description

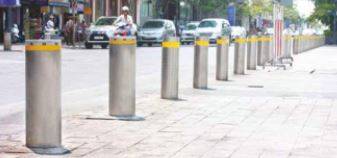

Automatic retractable traffic bollard J200 HA is particularly suitable to regulate vehicle traffic in residential areas, ensuring an intelligent control, while maintaining the aesthetic appearance.
General information
Finish | Cataphoresis and polyester powder painted. |
Material | Steel S235JRG2 EN 10277. |
Width | 200 mm Manufacturer guidanceDiameter. |
Warranty description | 2 years. Guidance for specification option:
|
Uniclass | |
NATSPEC National Classification System | 0261b Landscape – Parking and Traffic Control 0552 Metalwork - Fabricated 0191 Sundry Items 0261 Landscape – Furniture and Fixtures |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
SpecPack | 05500 Metalwork 02870 Unit Pavers |
Specification data - Carbon steel rising bollards
Material | Steel S235JRG2 EN 10277. |
Form | |
Profile | 200 mm diameter. |
Height | 600 mm. |
Top profile | Aluminium painted case RAL 9006. |
Retracting mechanism | |
Method of operation | Hydraulic unit. |
Electrical supply | 230V ~ 50(60Hz). |
Controllers | External control board. |
Accessories | LED lights kit.Guidance for specification option: Can be added to signal the cylinder movement and upraised position. Acoustic buzzer.Guidance for specification option: Can be added to signal the cylinder movement. Pit heater.Guidance for specification option: Can be added to expand the range of working temperature. Safety kit.Guidance for specification option: Can be added to have: - A pressure switch to reverse the cylinder movement if an obstacle is found while rising. - An electro valve to automatically lower the cylinder in case of power failure. |
Finish | |
Coating | Cataphoresis and polyester powder painted. |
Colour | Dark grey metallized - RAL 7021. |
Additional requirements | 25 mm high reflecting strip.Buzzer.Guidance for specification option: LED lights. Manufacturer guidanceOptional |
CorrosionTreatment | Cataphoretic coating. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
