J275 HA V2

Verified by manufacturer over a year ago

FAAC Group

Carbon steel rising bollards.

Jump to:
1300364864 Website

Application

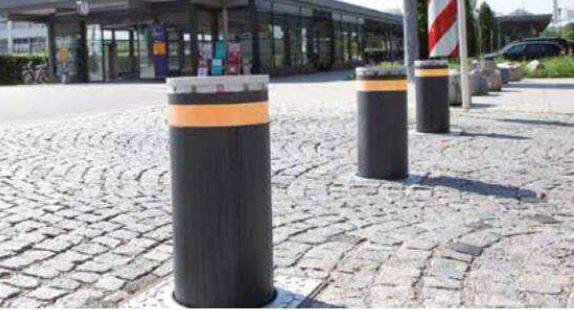

Vehicular access control in installations with high vehicular flow, like restricted access areas, reserved parking for offices, residential compounds, commercial or industrial sites, hospitals, public offices, hotels, campsites, holiday and sport resorts.

Description

  1. Guaranteed for high frequency use.
  2. "Full optional" product; supplied equipped with the main accessories.
  3. Simplified maintenance (possible with just one person).
  4. Integrated hydraulic unit.
  5. Perfect interchangeability with first generation bollards.
  6. "Gentle stop" function to guarantee a soft impact while arriving on the low limit.

General information

Finish

Anti- corrosive Cataphoresis and polyester powder painted.

Material

Steel S235JR EN 10219.

Width

275 mm

Manufacturer guidance

Diameter.

Warranty description

2 years.

Guidance for specification option:

  • Free repair or replacement from date of installation.
  • Special warranty extensions may apply.

Uniclass

Pr_20_76_08_12 Carbon steel rising bollardsPrimary

NATSPEC National Classification System

0261b Landscape – Parking and Traffic Control

0552 Metalwork - Fabricated

0191 Sundry Items

0261 Landscape – Furniture and Fixtures

SpeedSpec

05580 Architectural Metalwork and Whitegoods

SpecPack

05500 Metalwork

02870 Unit Pavers

Specification data - Carbon steel rising bollards

Material

S235JR EN 10219 steel.

Form

-

Profile

275 mm diameter.

Height

600 mm.

800 mm.

Top profile

Aluminium RAL 9006 with Anti-corrosion Rilsan® resin treatment.

Retracting mechanism

-

Method of operation

Hydraulic Actuator.

Electrical supply

230 VAC, 50/60 Hz.

Controllers

Model JE275 integrated controller.

Accessories

JP275: J275 HA Bollards dedicated Pit.

Pit extension (for H800 models installation).

Manufacturer guidance

Optional accessories to check with manufacturer.

Finish

-

Coating

Cataphoresis and polyester powder painted.

Colour

Dark grey metallized - RAL 7021.

Design impact forces

-

Standard

To EN 124.

Value

Load class C250.

Additional requirements

55 mm high reflecting strip.

LED lights.

Manufacturer guidance

Each movement is signalled –and anticipated- by an acoustic buzzer.

Optional accessories

Pit heater.

JC275 Pit cover.

CorrosionTreatment

Cataphoretic coating.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
