J200 SA

Verified by manufacturer over a year ago

FAAC Group

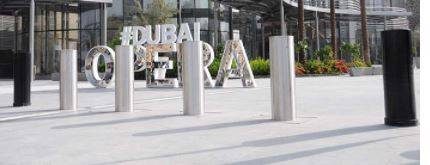

Carbon steel rising bollards.

Jump to:
1300364864 Website

Application

To delimitate pedestrian areas, parking lots and passages with low vehicular traffic. It matches all needs of traffic regulation when connection to main supply is not available. The rising is automatically operated by releasing a gas spring with the supplied key. The descent has to be operated by pressing with a foot on the bollard head.

Description

J200 SA solves transit and/ or parking control problems without needing electrical power (making it particularly suitable for use in historical city centres and areas which are difficult to wire). The bollard is key-operated and automatically lifted by a gas operator. The bollard is lowered by using the same key and pressing on the head.

General information

Finish

Cataphoresis and polyester powder painted.

Material

Steel S235JRG2 EN 10277.

Width

200 mm

Manufacturer guidance

Diameter.

Warranty description

2 years.

Guidance for specification option:

  • Free repair or replacement from date of installation.
  • Special warranty extensions may apply.

Uniclass

Pr_20_76_08_12 Carbon steel rising bollardsPrimary

NATSPEC National Classification System

0261b Landscape – Parking and Traffic Control

0191 Sundry Items

0261 Landscape – Furniture and Fixtures

0552 Metalwork - Fabricated

SpeedSpec

05580 Architectural Metalwork and Whitegoods

SpecPack

02870 Unit Pavers

05500 Metalwork

Specification data - Carbon steel rising bollards

Material

Steel S235JRG2 EN 10277.

Form

-

Profile

200 mm diameter.

Height

600 mm.

Top profile

Aluminium painted case RAL 9006.

Retracting mechanism

-

Method of operation

Single effect gas spring.

Controllers

Rising: gas spring.

Lowering: manual lowering.

Accessories

Pit heater.

Guidance for specification option:

To be added to enlarge the operation temperature range to extreme low temperatures.

Led lights kit.

Guidance for specification option:

To indicate the bollard upraised position.

Finish

-

Coating

Cataphoresis and polyester powder painted.

Colour

Dark grey metallised RAL 7021.

Additional requirements

25mm high reflecting strip all around the cylinder itself.

LED lights.

Guidance for specification option:

Power unit not supplied.

CorrosionTreatment

Cataphoretic coating.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
