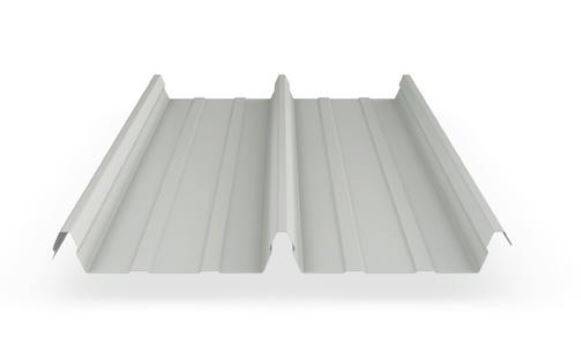

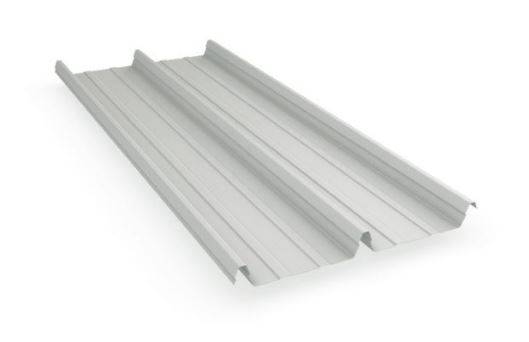

LYSAGHT KILP-LOK 406® Stainless steel

• Suitable for long length roofing applications using either the innovative LOK-KLIP® system.
• Can be installed to steel or timber supports with fixing clips without puncturing the sheets.
• Can be fastened over insulation wool blankets up to 50mm.
• Suitable applications from low pitched roofs to vertical or horizontal ribbed walling.
• Can be use for severe and coastal environment.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

•       AS 4040.0 – 1992
•       AS 4040.1 – 1992
•       AS 4040.2 – 1992
•       AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

•      AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
•        AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
•        AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
•       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

•       AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
•      AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
•       AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
