LYSAGHT SPANDEK® - Stainless steel

Name: LYSAGHT SPANDEK® - Stainless steel
Brand: Lysaght
SKU: h4hrrGusJeb1adLnhJQaLS

Verified by manufacturer over a year ago

Lysaght

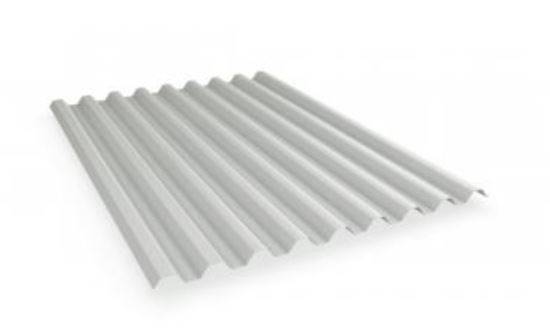

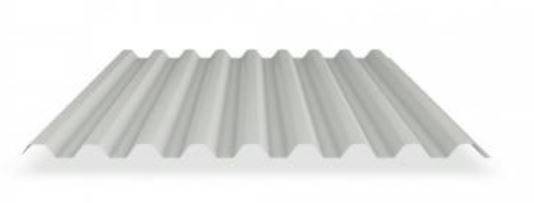

A modern, simple square-corrugated stainless steel roofing and wall cladding.

Jump to:

+61 1800 800 789 Website

Application

Ideal for commercial and residential applications.
Can be used for industrial and commercial construction.
Suitably used as wall underlining.
Can be fixed pierced to timber and steel supports.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

A modern, simple square-corrugated stainless steel roofing and walling cladding that is strong, impact-resistant and economical. Some of its significant features include:

Design with strength, lightness and rigidity.
Economical, quick to install and can easily be aligned.
Highly serviceable roofing and walling cladding.
Bold ribs offer high strength and high water carrying capacity.
Minimum roof slope at 2°.

Available all throughout Australia.

General information

Material	Staineless steel.
Size	700 mm (cover width).
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_85 Stainless steel profiled sheetsPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07610 Roofing and Roof Plumbing 07462 Cladding External Walls
NATSPEC National Classification System	0431 Cladding - Combined 0436 Cladding – Profiled and Seamed Sheet Metal 0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal

Specification data - Stainless steel profiled sheets

Standard	To AS/NZS 2728:2013.
Material	Stainless steel.
Grade	430.
Base Metal thickness (BMT)	0.42.
Profile	-
Form	Long, straight and trapezoidal corrugated profile.
Height	24 mm.
Cover width	700 mm. Manufacturer guidance Cover width tolerance: +4 mm, -4 mm.
Colour	Surfmist® Stainless Dune® Stainless Deep Ocean® Stainless Windspray® Stainless
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: +0 mm, –15 mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
