LYSAGHT TRIMDEK® - Stainless steel

Name: LYSAGHT TRIMDEK® - Stainless steel
Brand: Lysaght
SKU: p9Hy4eY3wd2rrLV5LpiLaZ

Verified by manufacturer over a year ago

Lysaght

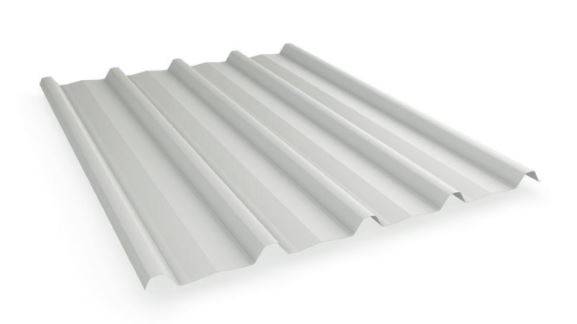

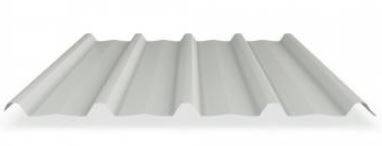

A stainless steel bold, trapezoidal ribs roofing and wall cladding with subtle fluting in the pans.

Jump to:

+61 1800 800 789 Website

Application

Suitable for long-length roofing and cladding application.
Can be used with TRIM-KLIP™ end and expansion joint system
Suitable for domestic, industrial and commercial applications.
Can be pierce-fixed to timber or steel supports.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

Trimdek® is a ribbed profile roofing and wall cladding in stainless steel finish with subtle fluting in the pans that can provide strength and long-spanning capabilities. Strong, durable, versatile roof and wall cladding, available in long lengths. Some of its significant features include:

Long straight lengths can be easily aligned.
Light and strong with excellent spanning capacity.
Provides excellent rainwater carrying capacity.
Design with strength, lightness and rigidity.
Recovers after deformation.
Long spanning cladding permits wide support spacing.

Available all throughout Australia.

General information

Material	Stainless steel.
Size	762 mm Guidance for specification option: Nominal cover width.
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_85 Stainless steel profiled sheetsPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07610 Roofing and Roof Plumbing 07462 Cladding External Walls
NATSPEC National Classification System	0423 Roofing – Profiled Sheet Metal 0421 Roofing - Combined 0436 Cladding – Profiled and Seamed Sheet Metal 0431 Cladding - Combined

Specification data - Stainless steel profiled sheets

Standard	To AS/NZS 2728:2013.
Material	Stainless steel.
Grade	430.
Base Metal thickness (BMT)	0.42.
Profile	-
Form	Subtle square-fluted pans and bold trapezoidal ribs.
Height	29 mm.
Cover width	762 mm. Manufacturer guidance Cover width tolerance: +4 mm, -4 mm.
Colour	Surfmist® Stainless Dune® Stainless Deep Ocean® Stainless Windspray® Stainless
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: +0 mm, –15 mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
