RS-5300
Verified by manufacturer over a year ago

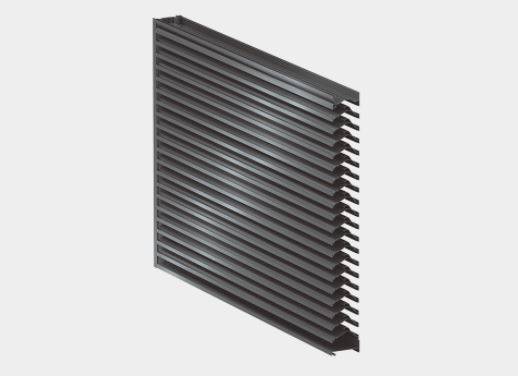

Part of a louvre system that provides maximum airflow required with minimal rain defence.
Application
Buildings and structures with multiple openings.
Description
Louvre system ideal for projects where economy is the primary consideration, high free area is important and occasional water penetration will not cause significant problems.
General information
Finish | Clear Anodised. Kynar and Powder Coat. Pearlescent. Metallic. Manufacturer guidanceSee all finish options online at c-sgroup.com. |
Warranty description | 30- Year powder coating warranty. |
Uniclass | |
NATSPEC National Classification System | 0457 External Screens |
SpecPack | 10240 Grilles and Screens |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Manufacturer guidanceRefer to manufacturer for maximum height and widths. |
Material | Aluminium. |
Finish | |
Coating | Powder-coated. |
Colour | Manufacturer guidanceRefer to manufacturer for range of colours available. |
Construction | Visible mullions. |
Air intake and exhaust performance | |
Standard | To AS/NZS 4740. |
Louvre configuration | |
Blade orientation | Horizontal. |
Blade pitch | 70 mm. |
Blade angle | Fixed. |
Depth | 130 mm. |
