Smartclick

Verified by manufacturer over a year ago

Smartclick A

Construction Specialties Variant:

A simple and low cost solution to providing visual screening of plant or other equipment. Part of the C/S screening louvres ideally used in applications where rain penetration is not a concern.

Jump to:
+61 1300 272 602 Website

Application

Often used on the top of buildings to conceal HVAC systems. The screening louvres help to hide unsightly equipment whilst providing passage of air to plant machinery behind.

Description

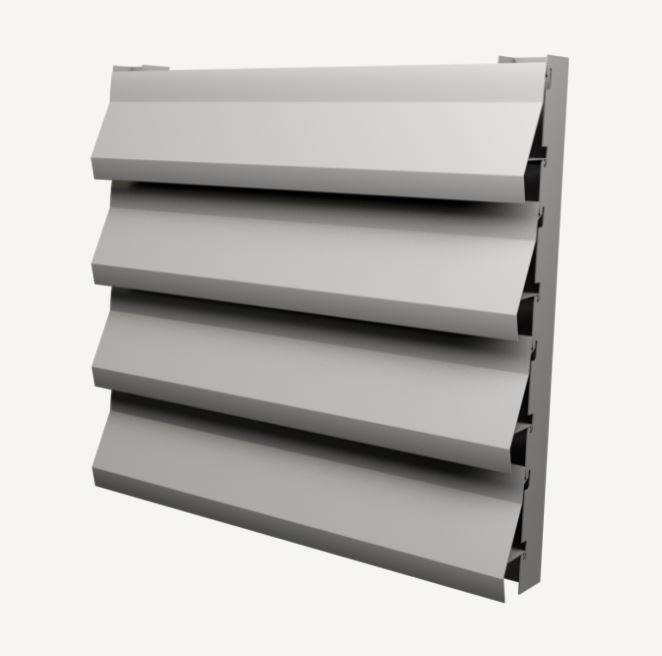

Part of C/S louvre systems consisting of horizontal blades clipped into support mullions. The blades can be inverted for improved screening performance at certain viewing angles. These systems are available in a range of finishes including mill finished, anodised or powder coated.

General information

Finish

Mill

PPC

Material

Aluminium

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

NATSPEC National Classification System

0457 External Screens

SpecPack

10240 Grilles and Screens

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Aluminium louvre panel units

Size (l x w x d)

6 m.

Manufacturer guidance

Standard blade length.

Material

Aluminium.

Finish

-

Coating

Mill finish.

Polyester powder coated.

Zero VOC fluoro-polymer powder coated.

Colour

-

Manufacturer guidance

Refer to manufacturer for available colour range.

Construction

Hidden mullion.

Louvre configuration

-

Blade pitch

100 mm.

Mullion

Hidden.

Length

6 m.

Accessories

Blanking plates.

Bird/vermin guards.

Insect mesh.

Louvred doors.

Aerodynamic free area

25% blade free area.

Blade

35.5 mm.

Guidance for specification option:

Standard blade length.

Orientation

Horizontal.

Depth

35.5 mm

Weight

~5.5 kg/m².

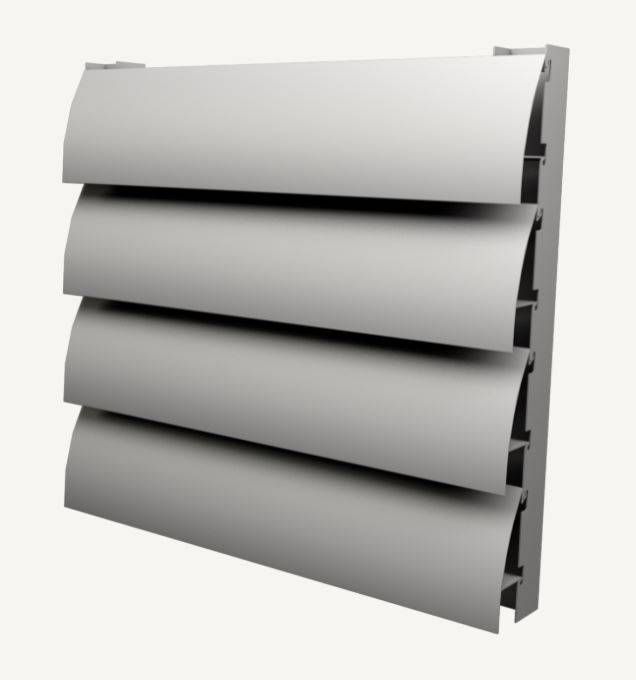

Similar products from Construction Specialties
