RSV-5700
Verified by manufacturer over a year ago
VOLUME FLOW RATE (M³/S) 0
VOLUME FLOW RATE (M³/S) 0

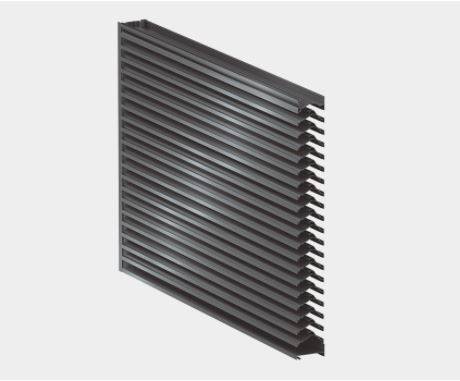

Storm resistant louvres that repel up to 100% of wind-driven rain and available in both horizontal configuration.
Application
Applicable in coastal and tropical areas where wind-driven rain is prevalent.
Description
C/S Perform louvres are not designed for specification or use in areas where the louvres perforations may clog or become blocked. This includes areas where debris, snow, ice or other obstructions or occlusions may occur. C/S Perform louvres should be regularly inspected and maintained free of occlusion and blockage. To maximize performance and avoid property damage or personal injury, C/S Perform louvre’s must be cleared of occlusions and blockage as they occur, including blockages caused by accumulations of debris, snow, ice, or any other type or kind of obstruction
General information
Finish | Kynar and Powder Coat. Pearlescent and Metallic. Clear Anodised. Manufacturer guidanceSee all finish options online at c-sgroup.com. |
Uniclass | |
NATSPEC National Classification System | 0457 External Screens |
SpecPack | 10240 Grilles and Screens |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Manufacturer guidanceRefer to manufacturer for maximum height and widths. |
Material | Aluminium. |
Finish | |
Coating | Powder-coated. |
Colour | Contact manufacturer for range of colours available. |
Construction | Visible mullions. |
Air intake and exhaust performance | |
Standard | To AS/NZS 4740. |
Louvre configuration | |
Blade orientation | Vertical. |
Blade pitch | 51 mm. |
Blade angle | Fixed. |
Depth | 129 mm. |
