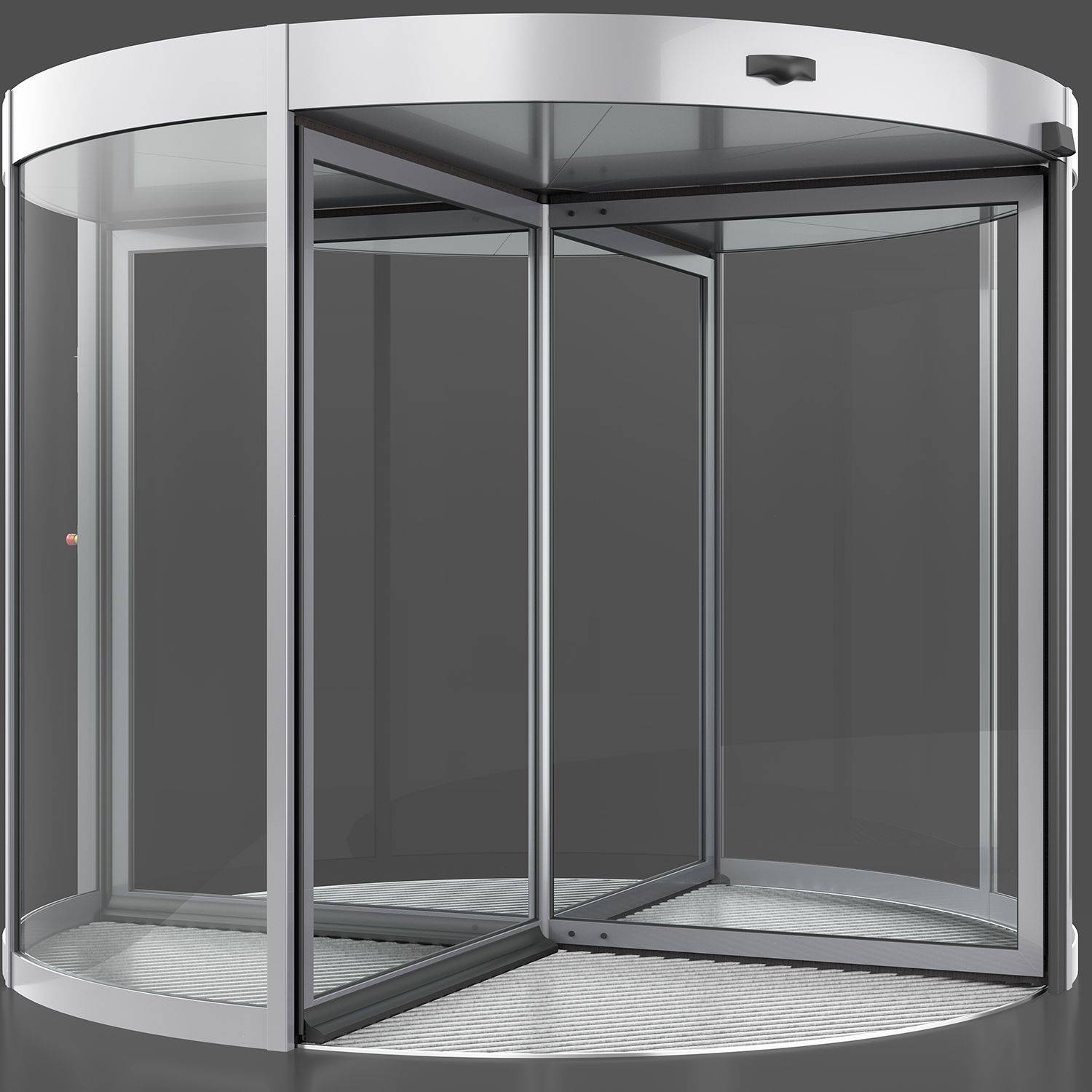

Tourniket Automatic - Revolving door

Name: Tourniket Automatic - Revolving door
Brand: Boon Edam Australia Pty Ltd
SKU: 3SRSNXz5GHehccTr2E46qK

Verified by manufacturer over a year ago

1600 mm diameter - 3 wing

Boon Edam Australia Pty Ltd

Third party certifications:

QA Certificate
Certificate type

Automatic revolving door.

Jump to:

BOS

+61426703326 Website

Application

Offices, hotels, supermarkets and many types of public buildings.

Description

The Tourniket is the most versatile revolving door that can be fully customised to reflect your building’s design and functionality, available with three or four door wings, with automatic operation and also available in range of colours and finish options.

Available with a door set that can automatically fold open when the disabled access button is pushed.

Features and benefits:

Automatic operation
Available with three or four door wings
Available in a variety of finish and colour options
Available in multiple size options
Option to choose a collapsible door set for emergency exit suitability
Option to include 'Autofolding Tourniket' to cater for disabled access requirements
Energy-efficient entrance solutions.

Application:

Medium traffic flow applications such as offices, hotels and many other types of commercial buildings.

General information

Finish	Anodized Powder-coated
Material	Aluminium
Warranty description	One year Manufacturer guidance 12 months standard product warranty. Extended warranty available on request.

Uniclass	Pr_30_59_24_04 Automatic revolving doorsetsPrimary
NATSPEC National Classification System	0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors
SpeedSpec	08200 Doors and Door Frames
SpecPack	08900 Glazed Curtain Walls 08450 Fully Glazed Entrance Facades

Specification data - Automatic revolving doorsets

Standard	To AS 5007.
Configuration	Automatic
Materials and finishes	-
Doors	Aluminium
Glazing	-
Manifestation	50mm dots as standard.
Canopy	Canopy height: 200-1200 mm
Activation and control system	-
Type	Automatic
Safety devices	Radar activated. EBS. SRD. BRS Optional extra safety sensors.
Locking mechanism	Electro-mechanical. Mechanical.
Breakout facility	Optional manual.

Capacity	2 x 22 person per minute.
Security performance	Night locking. Automatic night locking door. Internal night locking doors. Mechanical lock (door wing). Authorised night entry.
Safety	Accessibility buttons. Visual signage on the door wings and curved walls. CE plus package.
Power supply	200-240 VAC, 50/60 Hz
Operating temperature range	-20 to +50°C
Power	150 W Guidance for specification option: Operating power consumption 75 W Guidance for specification option: Stationary power consumption.
Power	AC motor, 3-phase.
Door wings	3
Door wing height	2100 - 3600 mm
Diameter	1600 mm
ClearWidth	1677 mm
Throat width	695 mm
Wheelchair access	No.
Exit	- Manufacturer guidance Emergency exit only with collapsible door set option. Requirements are subject to local regulations.
