CLAMP-TITE COPPER BOX SCUPPER - TPO

Verified by manufacturer 3 months ago

Menzies Metal Third party certifications:
  • Certificate of Approval

    Certificate of Approval

    Certificate type

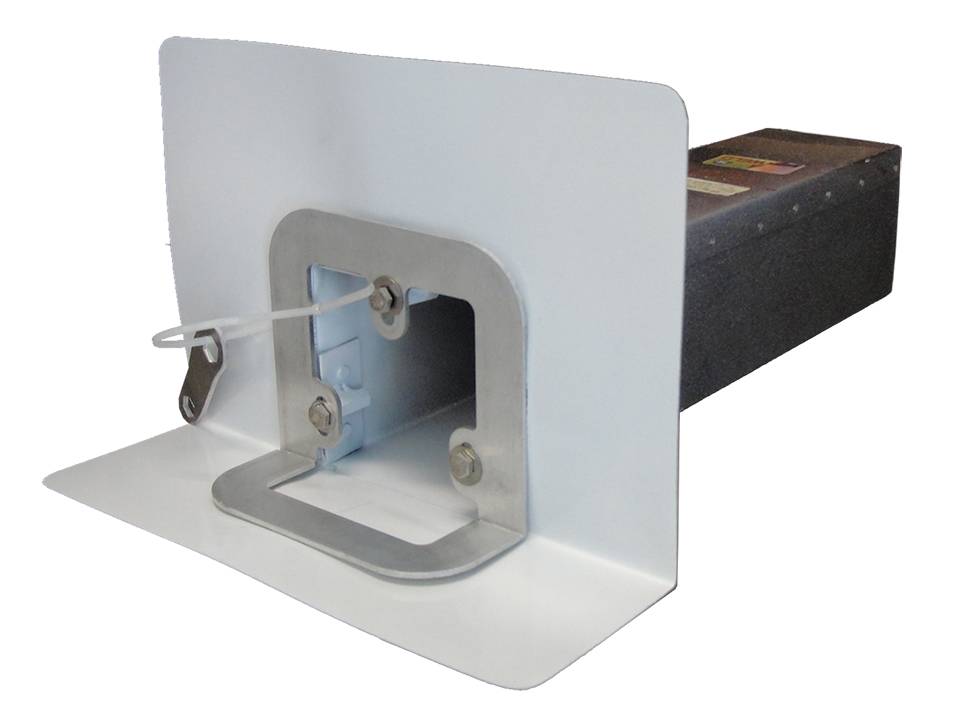

Menzies Clamp-Tite™ Copper Box Scupper Drain with TPO Direct Weld™, two piece system. Use for overflow applications in parapets or sidewalls. Manufactured by Menzies Metal Products (www.menzies-metal)

Jump to:
1-800-665-8840 Website

Application

Scupper Drain - TPO

Description

  • Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
  • Clamping collar to secure membrane to flange.
  • Full 4″ (102mm) flange, 4″ x 4″ x 17″ (102mm x 102mm x 432mm) outlet box with an overflow and cleanout box.
  • Outlet box can be trimmed to wall thickness.
  • Longer outlet boxes available.
  • 3″ (76mm) insert size pipe in the overflow and cleanout box.
  • No need to cut an oversized hole to pass the scupper through the wall.
  • The all-in-one overflow and clean out box will be attached to the outlet box on the exterior of the finished wall.
  • Stainless steel fasteners.
  • Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
  • STRAINER KIT AVAILABLE: link https://menzies-metal.com/strainer-kit-clamp-tite-box-scupper
  • 10-Year Warranty


General information

Color

White

Material

Thermoplastic polyolefin (TPO)

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

CMS

07 71 33 Manufactured ScuppersPrimary

Sustainability data

Material

Thermoplastic polyolefin (TPO)

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Third party certifications

Certificate of Approval

Certificate of Approval

CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.

Literature

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL

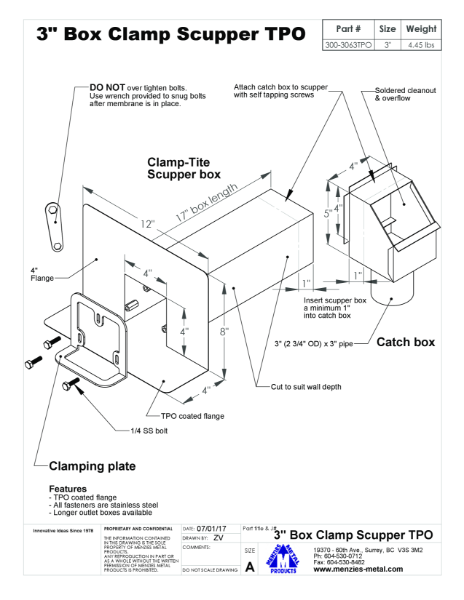

TECHNICAL DRAWING - CLAMP-TITE COPPER BOX SCUPPER - TPO

TECHNICAL DRAWING - CLAMP-TITE COPPER BOX SCUPPER - TPO

INSTALLATION INSTRUCTIONS - CLAMP-TITE COPPER BOX SCUPPER - TPO

INSTALLATION INSTRUCTIONS - CLAMP-TITE COPPER BOX SCUPPER - TPO

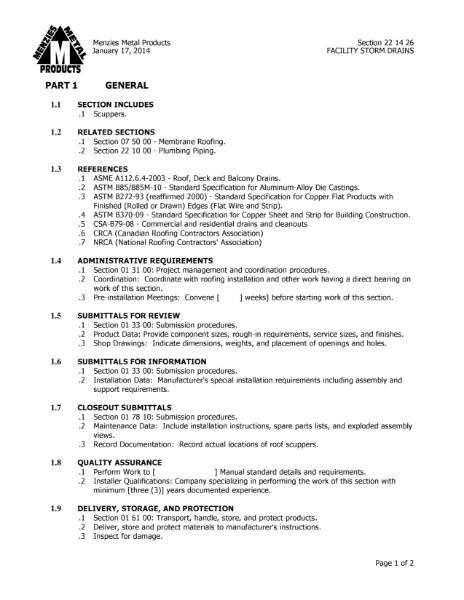

PRODUCT SPECIFICATIONS - CLAMP-TITE COPPER BOX SCUPPER - TPO

PRODUCT SPECIFICATIONS - CLAMP-TITE COPPER BOX SCUPPER - TPO
