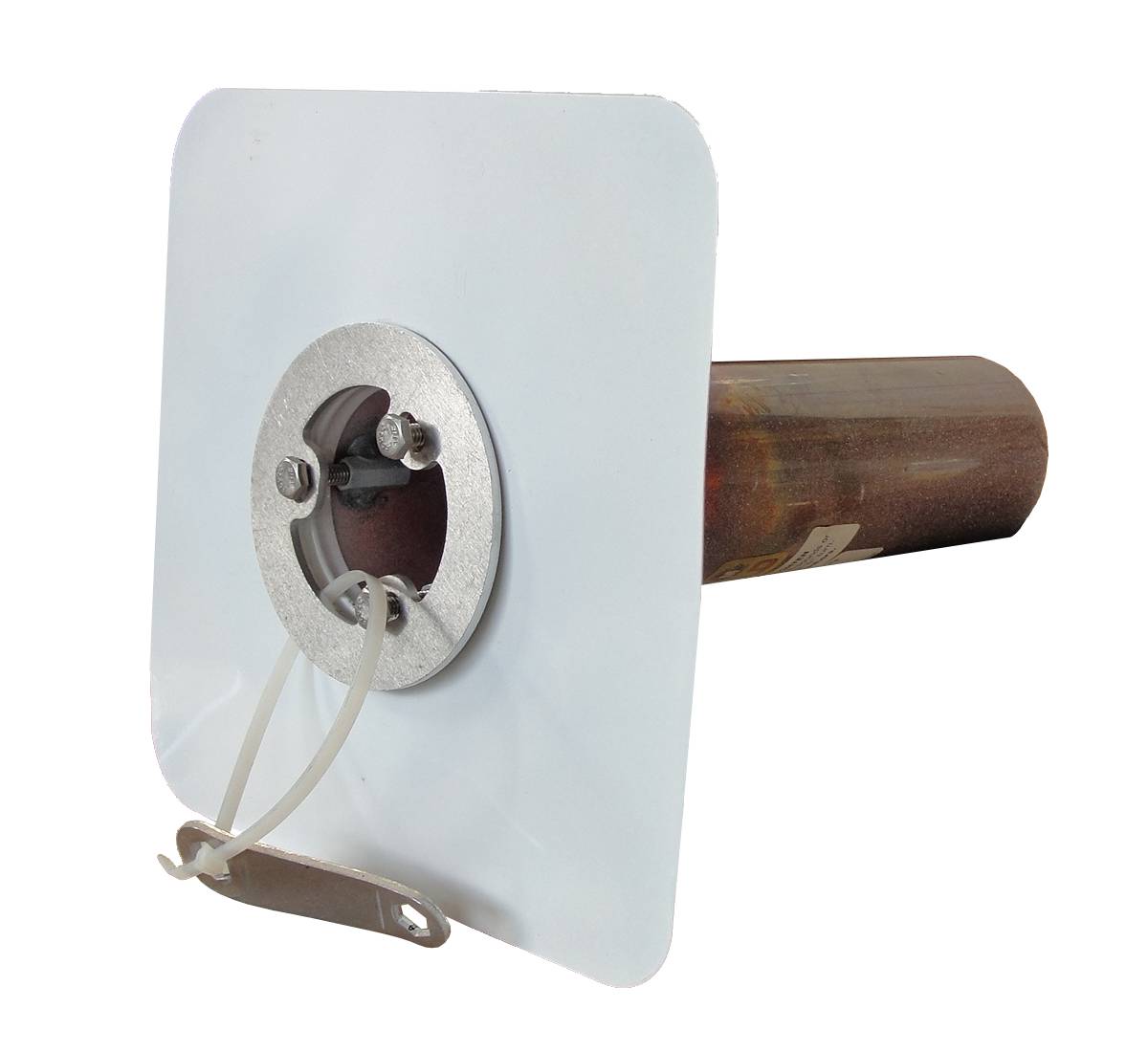

CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO (Thermoplastic Polyolefin)

Verified by manufacturer 3 months ago

Menzies Metal Third party certifications:
  • Certificate of Approval

    Certificate of Approval

    Certificate type

Menzies Clamp-Tite™ Overflow Drain with TPO Direct Weld™. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).

Jump to:
1-800-665-8840 Website

Application



Description

  • Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
  • Through wall overflow application.
  • 4″ (102mm) flange.
  • Aluminum clamping ring for securing all membranes.
  • Single and 2 ply roofing.
  • Long term durability.
  • 2 3/4″ (64mm) pipe size.
  • 11″ (275mm) pipe length, longer pipes available.
  • Stainless steel fasteners.
  • Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
  • Ten-Year Warranty.


General information

Material

Thermoplastic polyolefin (TPO)

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

CMS

07 71 33 Manufactured ScuppersPrimary

Sustainability data

Material

Thermoplastic polyolefin (TPO)

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Third party certifications

Certificate of Approval

Certificate of Approval

CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.

Literature

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL

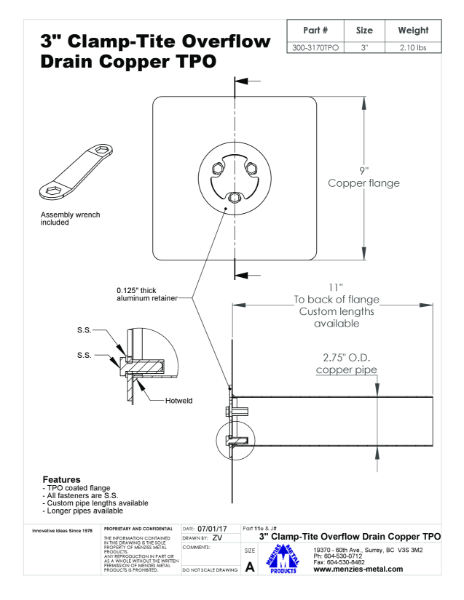

TECHNICAL DRAWING - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO

TECHNICAL DRAWING - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO

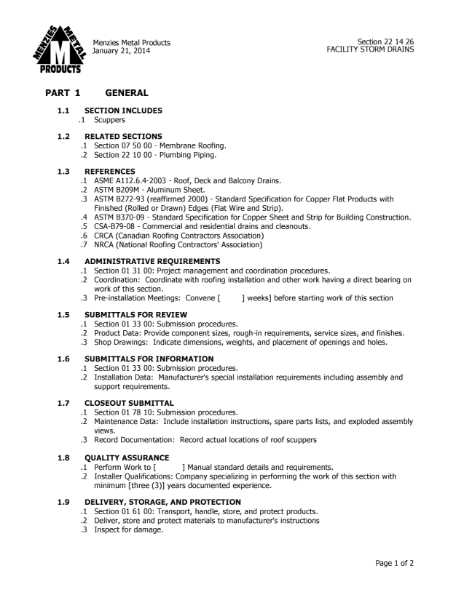

PRODUCT SPECIFICATION - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO

PRODUCT SPECIFICATION - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO

INSTALLATION INSTRUCTIONS - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO

INSTALLATION INSTRUCTIONS - CLAMP-TITE OVERFLOW SCUPPER DRAIN - TPO
