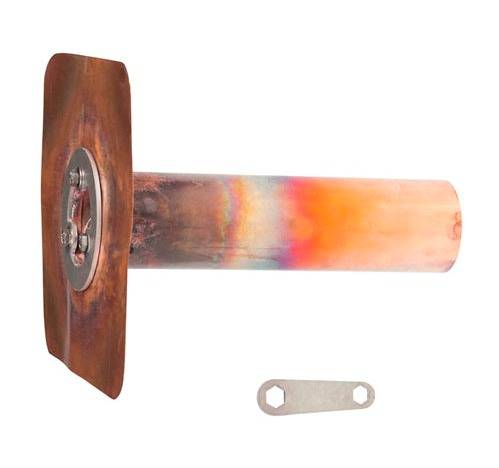

CLAMP-TITE OVERFLOW SCUPPER DRAIN

Verified by manufacturer 4 months ago

Menzies Metal Third party certifications:
  • Certificate of Approval

    Certificate of Approval

    Certificate type

CLAMP-TITE OVERFLOW SCUPPER DRAIN

Jump to:
1-800-665-8840 Website

Application

Overflow Roof Drain

Description

Menzies Clamp-Tite™ Overflow Drain. Use for overflow applications in parapets or sidewalls. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800- 665-8840).

  • Through wall overflow application.
  • HOTWELDED for torch on roofing applications.
  • Aluminum clamping ring for securing membrane to flange.
  • Single and 2 ply roofing applications.
  • Long term durability.
  • 2 3/4″ (70mm) pipe size.
  • Pipe is 11″(279mm) in length, longer pipes available.
  • Stainless steel fasteners.
  • Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
  • Also available in TPO Direct Weld™.
  • 10-Year Warranty


General information

Color

Copper

Finish

Copper

Material

Copper

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

CMS

07 71 33 Manufactured ScuppersPrimary

Sustainability data

Material

Copper

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Third party certifications

Certificate of Approval

Certificate of Approval

CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.

Literature

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL

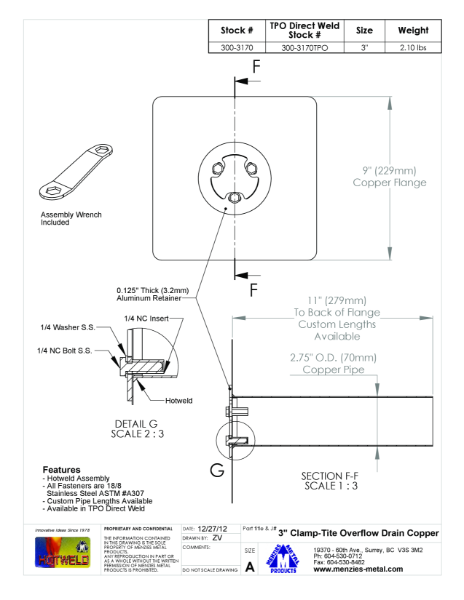

TECHNICAL DRAWING - CLAMP-TITE OVERFLOW SCUPPER DRAIN

TECHNICAL DRAWING - CLAMP-TITE OVERFLOW SCUPPER DRAIN

CLAMP-TITE CU OVERFLOW DRAIN

CLAMP-TITE CU OVERFLOW DRAIN
