Configured Platforms Brochure
Configured Platforms Ltd
Brochure
Series1 Platform Data Sheet
Configured Platforms Ltd
•Sleek low profile design - generations ahead of conventional structural steel platforms.
• Unique design distributes the load evenly, reducing the
structural requirements of the roof.
• All aluminium components with stainless steel fixingsbacked by a 20 year warranty.
. Live load rated to 2.5 kPa
.Super lightweight 14 kg/m2
.Complies to BS EN 516 2006 and BS EN 1090-3 2008
Series2 Platform Data Sheet
Configured Platforms Ltd
• Free standing design eliminates penetrations keeping the
roof membrane leak free.
• Unique design distributes the load evenly, reducing the structural requirements of the roof.
. All aluminium components with stainless steel fixings -
backed by a 20 year warranty.
• Each height adjustable 304 stainless steel base has a plastic outer shell, a rubber anti-vibration pad and a stainless steel
convex stub and concave disc to allow for the drainage
contours of the roof.
• Live load rated to 2.5 kPа
•Super lightweight 18 kg/m2
•Complies to BS EN 516 2006 and BS EN 1090-3 2008
Series3 Platform Data Sheet
Configured Platforms Ltd
• Extra height increases air-flow to improve equipment's performance and longevity.
• Provides access under platform for routine inspections and maintenance.
• Compatible with steep pitched roofs and saw-toothed roofs.
. Added height allows for easy integration of equipment with vertical discharge ducts.
• Generations ahead of conventional structural steel platforms.
-All aluminium components with stainless steel fixings backed by a 20 year warranty.
• Unique design distributes the load evenly, reducing the structural requirements of the roof.
• Live load rated to 2.5 kPа
• Light weight 20 kg/m2
•Complies to BS EN 516 2006 and BS EN 1090-3 2008
Speedscreen Data Sheet
Configured Platforms Ltd
CONCEРТ
Screen system not relying on fixing points, structural
connection to the building, or any penetration through the
weatherproof membrane.
• A system that incorporates our range of surround types
including guardrail, screening or acoustic properties.
DESIGN
• Configurable in increment sizes in height and length to
suit your requirements.
• Speedscreen is able to be installed on flat roofs and
shallow gradient situations.
• Complements our plant platform range perfectly anp can
be integrated so that screens are continuous regardless
whether it is mounted onaplatform or on the Speedscreen
system.
• Ballast weight values are calculated in relation to four
factors: Terrain category, area wind velocity according to
EuroCode1, building height and screen height.
• All aluminium components
Standardscreen Data Sheet
Configured Platforms Ltd
. Can be fitted to any sides of Series 1, 2 or 3 Platforms and to any 600mm increment from the corners.
• Clean straight lines for a tidy look.
• All aluminium components with stainless steel fixings backed by a 20 year warranty.
• Standard Heights: 1200mm, 1600mm, 2000mm & 2400mm
•Aluminium slats 65x15mm placed at 80mm horizontal repeat
pitch. Can be applied to top screen section only for parapet
situations.
•Super lightweight 7kg/m²
• Free area: 18.75%
• Complies to BS EN 516 2006 and BS EN 1090-3 2008
Louvre100 Data Sheet
Configured Platforms Ltd
•Can be fitted to any sides of Series 1, 2 or 3 Platforms and to any 600mm increment from the corners.
• Prestigious louvre profile.
•All aluminium components with stainless steel fixingsbacked by a 20 year warranty.
• Standard Heights: 1200mm, 1600mm, 2000mm & 2400mm
• Aluminium louvres 80mm placed at 100mm horizontal
repeat pitch. Can be applied to top screen section only for
parapet situations. Louvres available in inverted orientation
to screen direct line of sight from a low angle if required.
• Lightweight 8kg/m²
• Free area: 75%
•Complies to BS EN 516 2006 and BS EN 1090-3 2008
Peaceflow300 Data Sheet
Configured Platforms Ltd
DESIGN
.Can be fitted to any sides of Configured Platforms systems.
. Prestigious louvre profile.
• All aluminium components with stainless steel fixingsbacked by a 20 year warranty.
• Standard Heights: 1000mm, 1200mm & 1500mm
• Aluminium louvres 150mm repeat pitch.
.Complies to BS EN 516 2006 and BS EN 1090-3 2008
• Typical weight 26kg/m2
• Louvres will be supplied in pre-assembled modules. Fixings will be provided for fixing to system.
Guardrail Data Sheet
Configured Platforms Ltd
Guardrail Data Sheet
Peacemaker Data Sheet
Configured Platforms Ltd
Peacemaker is made of sound absorbing polyethylene foam
that effectively traps noise within its cell structure. Sound
absorption testing indicates a perfect Noise Reduction Coefficient (NRC) of1. Peacemaker offers consistent acoustical performance across a variety of environments, and its hydrophobic
properties protect against humidity and water absorption,
while being flame retardant.
Soundshield Data Sheet
Configured Platforms Ltd
Soundshield combats noise pollution by acting as a reflective barrier, efficiently blocking sound from exiting a contained area and providing peace of mind for nearby residents. With a Weighted Sound Reduction Index (Rw) of 28, Soundshield provides excellent sound insulation performance.
Acoustic+ Data Sheet
Configured Platforms Ltd
Acoustic+ combines the sound attenuation properties of both Soundshield and Peacemaker to yield superior noise reduction results. Actively reducing noise in three phases (absorbing - reflecting - absorbing), Acoustic+ is Configured Platforms premier acoustic solution. With a Weighted Sound Reduction Index (Rw) of 33 and a Noise Reduction Coefficient (NRC) of 1.
Baffle400 Data Sheet
Configured Platforms Ltd
Baffle400 is composed of absorbent panels, fitted in parallel at equal spaces, allowing for air to pass between them. The baffles are made of sound absorbing polyethylene foam that effectively traps noise within its cell structure. Sound absorption testing indicates a perfect Noise Reduction Coefficient (NRC) of 1.
Baffle400 offers consistent acoustical performance across а
variety of environments, and its hydrophobic properties protect against humidity and water absorption, while being flame retardant.
Baffle300 Data Sheet
Configured Platforms Ltd
Baffle300 is composed of absorbent panels, fitted in parallel at equal spaces, allowing for air to pass between them. The baffles are made of sound absorbing polyethylene foam that effectively traps noise within its cell structure. Sound absorption testingindicates a perfect Noise Reduction Coefficient (NRC) of 1.
Baffle300 offers consistent acoustical performance across a
variety of environments, and its hydrophobic properties protect against humidity and water absorption, while being flame retardant.
Boltscreen Data Sheet
Configured Platforms Ltd
CONCEРТ
. Screen system with structural bracing connecting to
the building structural elements through the saddle
bracket and rubber mounting pad onto the weatherproof membrane.
.A system that incorporates our range of surround types
including guardrail, screening or acoustic properties.
Parascreen Data Sheet
Configured Platforms Ltd
CONCEРТ
.Screen system fixed to the inside face of a parapet. Ideally
suited to precast concrete parapet construction and can be
adapted for other construction situations.
•The Parascreen system does not require penetration through the weatherproof membrane to the horizontal surface.
•The Parascreen system can incorporate any surround type
from our range including slatted, louvre screening or acoustic properties.
Series3 with Acoustic+ Croft Avenue West Wickham
Configured Platforms Ltd
Case Study
St James University Hospital, Pathology Lab
Configured Platforms Ltd
Case Study

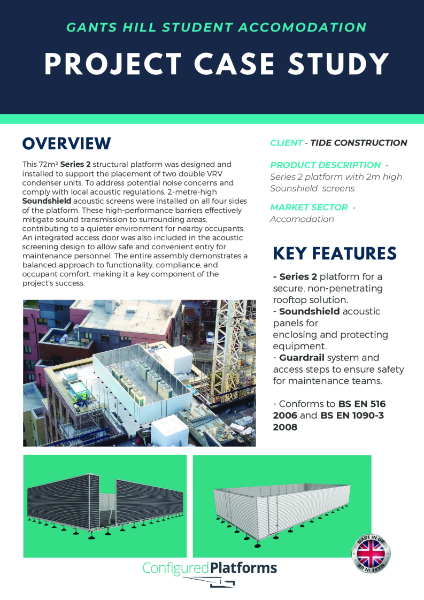

Series 2 with Soundshield - Gants Hill Student Accomodation
Configured Platforms Ltd

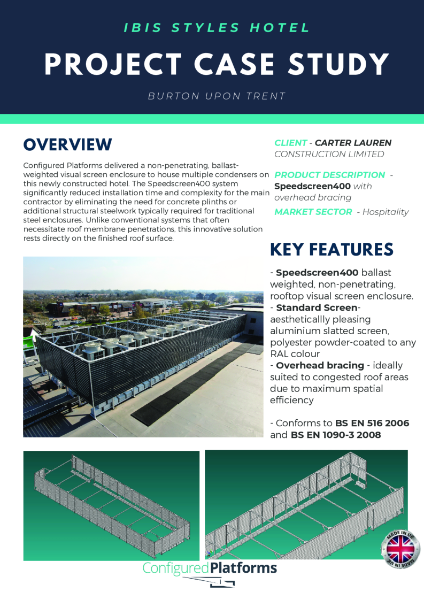

Speedscreen400 - Ibis Styles HoteL
Configured Platforms Ltd

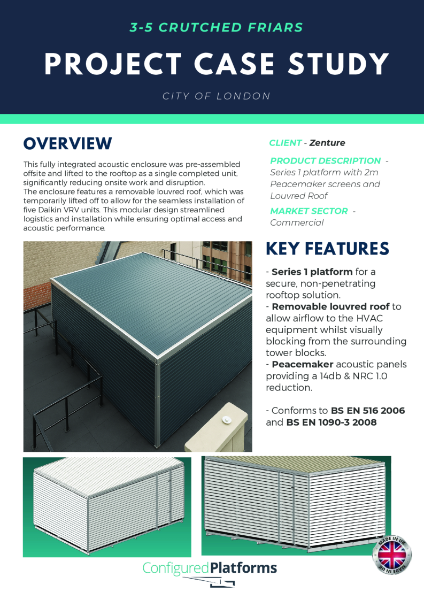

Series 1 with Peacemaker - 3-5 Crutched Friars
Configured Platforms Ltd
Series 2 with Soundshield - Alder Hey Hospital
Configured Platforms Ltd

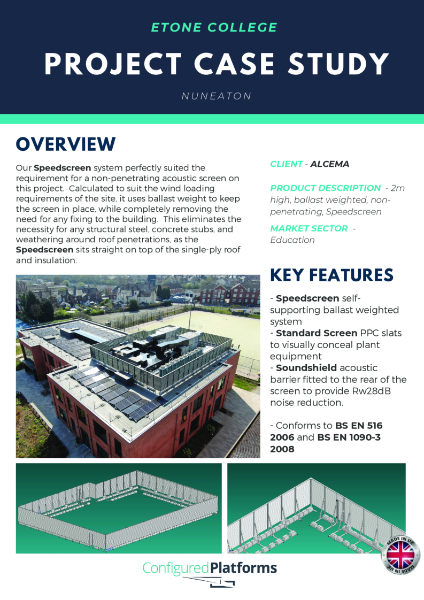

Speedscreen - Etone College
Configured Platforms Ltd

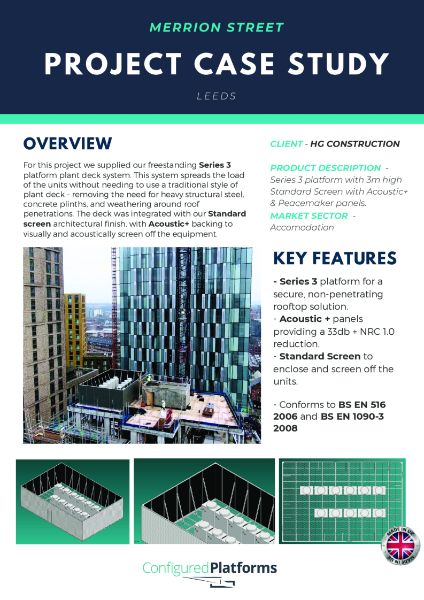

Series 3 with Acoustic + & Peacemaker - Merrion Street
Configured Platforms Ltd

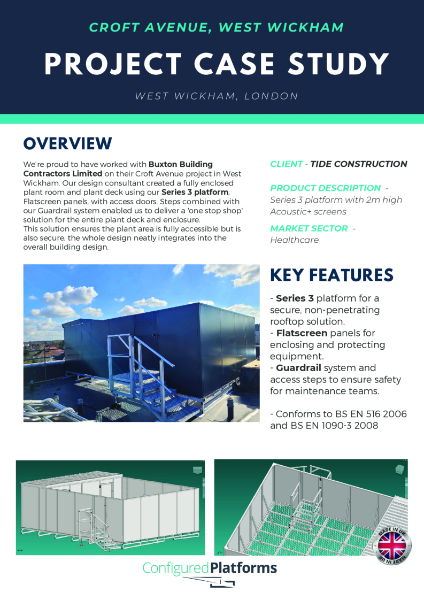

Series 3 with Acoustic + - Croft Avenue
Configured Platforms Ltd

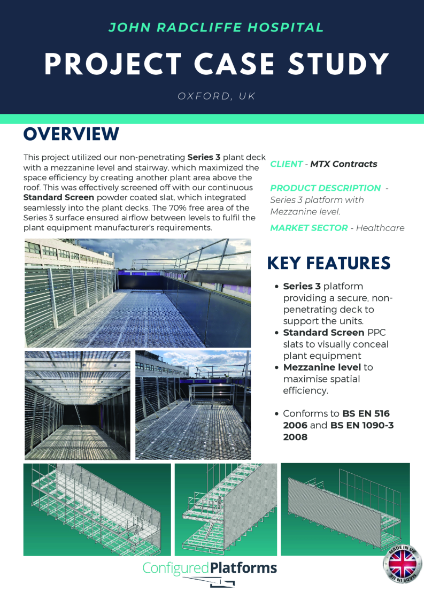

Series 3 with Mezzanine - John Radcliffe
Configured Platforms Ltd

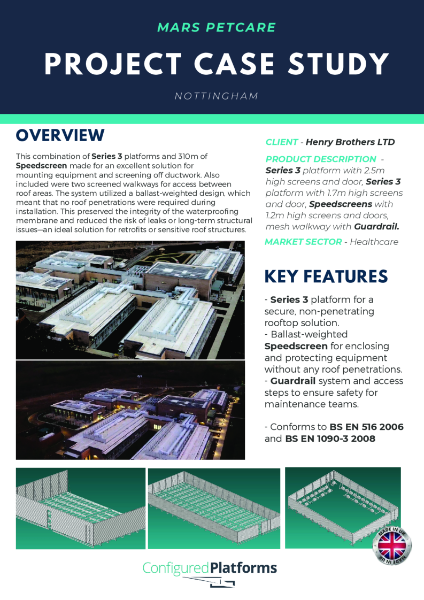

Series 3 with Speedscreen & Guardrail - Mars Petcare
Configured Platforms Ltd

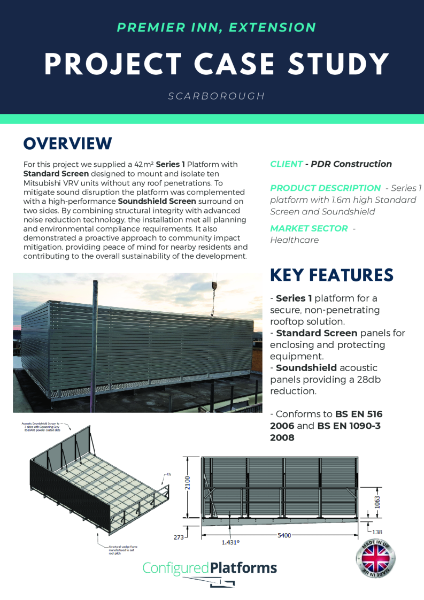

Series 1 with Soundshield - Premier Inn Scarborough
Configured Platforms Ltd

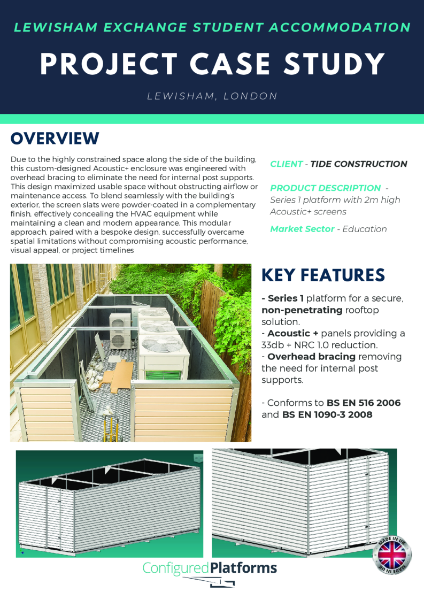

Series 1 with Acoustic + & Overhead bracing - Lewisham Exchange
Configured Platforms Ltd

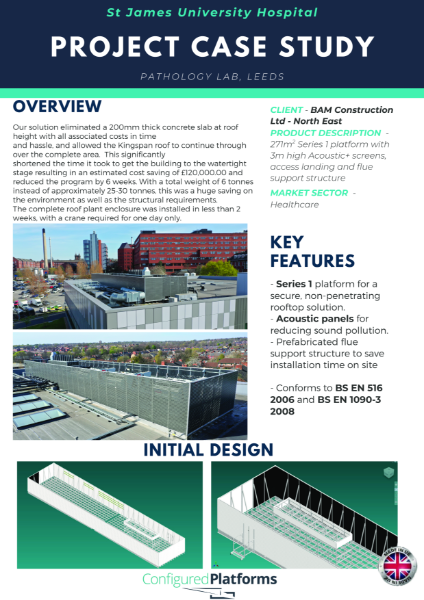

Series 1 platform with Acoustic+ screens - St James University Hospital
Configured Platforms Ltd

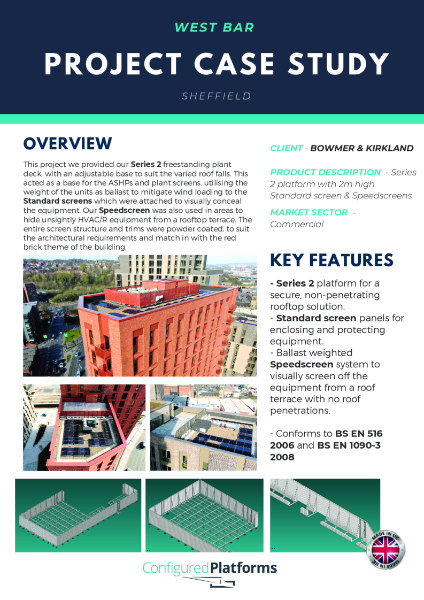

Series 2 with Standard Screen & Speedscreen system - West Bar Sheffield
Configured Platforms Ltd
