Lookbook - Architects & Engineers
Elefant Gratings T/A PcP Gratings Ltd
A collection of design solutions made of steel for the public, building and construction industries.
Inspiration for Architects & Engineers.
CUBE Gratings & Treads
Elefant Gratings T/A PcP Gratings Ltd
CUBE next generation gratings
OPTIMO Tread High Visibility
Elefant Gratings T/A PcP Gratings Ltd

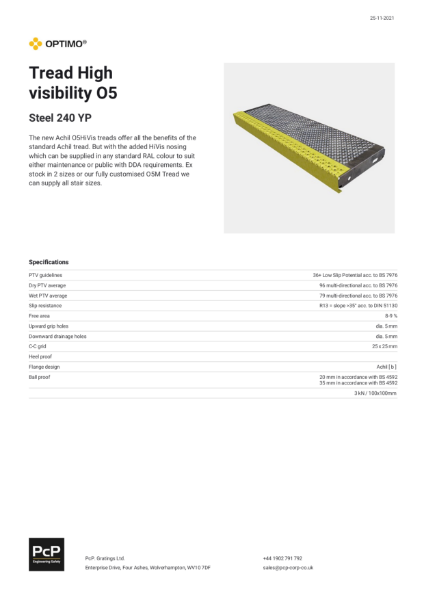

The new Achil O5HiVis treads offer all the benefits of the standard Achil tread. But with the added HiVis nosing which can be supplied in any standard RAL colour to suit either maintenance or public with DDA requirements. Ex stock in 2 sizes or our fully customised O5M Tread we can supply all stair sizes.
CUBE loading chart & m2 weights
Elefant Gratings T/A PcP Gratings Ltd

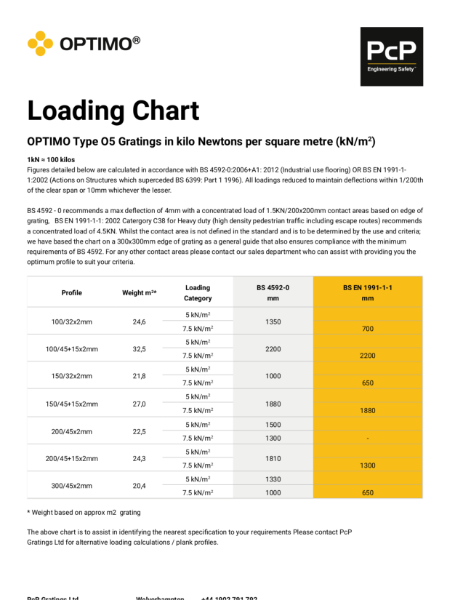

Type O5 loading chart & m2 weights
Elefant Gratings T/A PcP Gratings Ltd
Figures detailed are calculated in accordance with BS 4592-0:2006+A 1: 2012 (Industrial use flooring) OR BS EN 1991-1-
1 :2002 (Actions on Structures which superseded BS 6399: Part 1 1996). All loadings reduced to maintain deflections within 1/200th of the clear span or 10mm whichever the lesser.
BS 4592 - 0 recommends a max deflection of 4mm with a concentrated load of 1.5KN/200x200mm contact areas based on edge of grating, BS EN 1991-1-1: 2002 Category C38 for Heavy duty (high density pedestrian traffic including escape routes) recommends a concentrated load of 4.5KN. Whilst the contact area is not defined in the standard and is to be determined by the use and criteria; we have based the chart on a 300x300mm edge of grating as a general guide that also ensures compliance with the
Type O2 loading chart & m2 weights
Elefant Gratings T/A PcP Gratings Ltd
Figures detailed are calculated in accordance with BS4592-0: 2006 +A1: 2012.
Loadings reduced to maintain deflections within 1/200th of the clear span or 10mm whichever the lesser. In addition to the distributed load the gratings also fullfill a concentrated load on the edge with a
1.5kN / 200x200mm contact area based on max 4mm deflection OR L/200 as listed
Optimo plank gratings & treads
Elefant Gratings T/A PcP Gratings Ltd
OPTIMO® consist of planks welded together to form a complete grating. These panels are also available in the form of stair treads with different designs for numerous applications. Walkways, platforms, stairways, spiral stairs, scaffolding - the possibilities are endless. OPTIMO® brings together modern engineering with everyday practicality and safety.
B-CUBE Oyster
Elefant Gratings T/A PcP Gratings Ltd
Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.
B-CUBE Oyster Tread
Elefant Gratings T/A PcP Gratings Ltd
B-CUBE® stair treads has a better strength-to-weight ratio than traditional mesh grating treads which means that strength is maintained while weight is reduced. B-CUBE® treads are manufactured with Oyster-surface between meshes for slip resistance. B-CUBE® stair treads are recommended in most constructions and industries especially where high air- and liquid flow are required.
B-CUBE Dimple
Elefant Gratings T/A PcP Gratings Ltd
Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.
B-CUBE Plain
Elefant Gratings T/A PcP Gratings Ltd
Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.
B-CUBE Round
Elefant Gratings T/A PcP Gratings Ltd

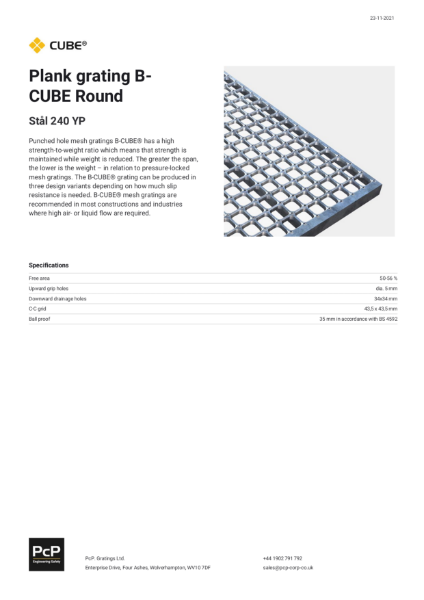

Punched hole mesh gratings B-CUBE® has a high strength-to-weight ratio which means that strength is maintained while weight is reduced. The greater the span, the lower is the weight – in relation to pressure-locked mesh gratings. The B-CUBE® grating can be produced in three design variants depending on how much slip resistance is needed. B-CUBE® mesh gratings are recommended in most constructions and industries where high air- or liquid flow are required.
Inspiration
Elefant Gratings T/A PcP Gratings Ltd
Elefant Gratings Ltd - Inspiration product catalogue.
MESH Grating
Elefant Gratings T/A PcP Gratings Ltd
Our mesh gratings are available in countless variations with configurations to suit your application and aesthetic requirements. We pride ourselves in engineering safety, offering specification proposals with relevant standards taken into consideration including slip resistance, load criteria including strength and deflection. PcP produces several different surfaces that are untreated steel, galvanized steel, aluminium, stainless 304 and acid proof 316, Cor-ten A (weathering steel), high strength steel. The grating is provided with an edge profile on four sides or unbound for your fabrication / finishing.
MESH Louvre
Elefant Gratings T/A PcP Gratings Ltd

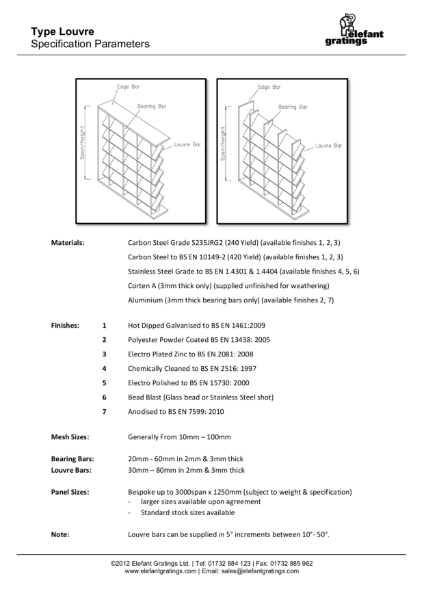

Mesh louvre gratings comprising vertical (bearing bars) with angled horizontal (louvre bars) from 10° - 50° in increments of 5°. Available in two variants: Closed (meaning not possible to see through viewing straight on) or Open (meaning visible gaps offering a level of diffusion but allowing a view through the bars).
MESH Type SP
Elefant Gratings T/A PcP Gratings Ltd

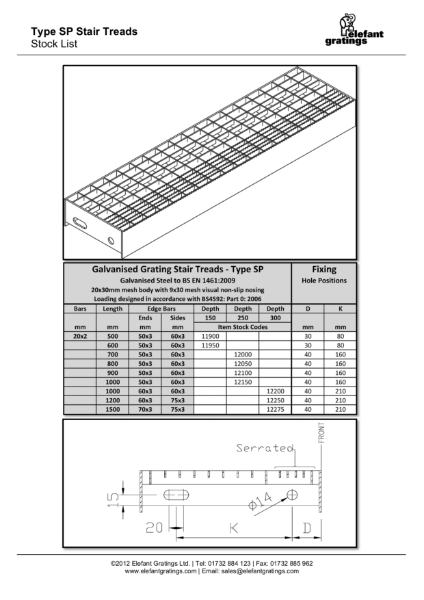

Mesh type SP stock stair tread based on the standard Type SP Grating comprising of flat bars running perpendicular to each other at 90 degrees. Can be manufactured in any size and mesh configuration to suit the application. Standard stock treads available.
MESH Type SP-M
Elefant Gratings T/A PcP Gratings Ltd
Mesh type SP-M stair tread based on the standard type SP but with the addition of the O5-M Nosing, providing visual contrast as well as higher performance loading and non slip results. This enable a colour contrast to be applied to the nosing where applicable.

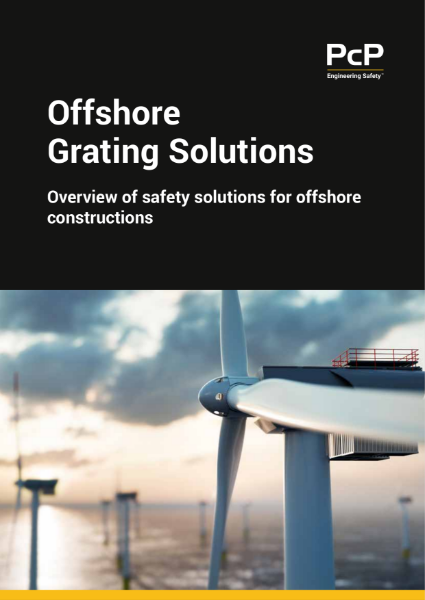

Offshore Grating Solutions
Elefant Gratings T/A PcP Gratings Ltd
PcP has more than 30 years’ experience supplying safe and robust solutions to offshore constructions such as wind
turbines, offshore oil and gas platforms, flare towers and transformer stations. We provide solutions to match your
specific project criteria and provide technical support throughout the project.
OPTIMO LHD
Elefant Gratings T/A PcP Gratings Ltd
Used in industrial applications as transformer platforms, offshore oil & natural gas drilling rigs requiring low hole density to limit the amount of oxygen and thus starve the source of the fire. Also used in public areas such as balconies. Tested and approved by SP Borås 2015. Safety grating Type LHD® is applied where a slip resistant and flame retardant surface is required - often on oil and gas rigs and trafo stations. Several tests proves that steel filters with LHD® gratings extinguishes oil fires significantly faster than traditional stone filters of macadam, pit and stone. The surface pattern has less than five percent of air passage.
OPTIMO Plank Grating D
Elefant Gratings T/A PcP Gratings Ltd
Safety gratings Type D is characterized by raised surface without holes. Type D is applied where closed surface is required and is a strong alternative to deck plating.
OPTIMO Plank Grating O2
Elefant Gratings T/A PcP Gratings Ltd
OPTIMO 02 planks offers higher slip resistance properties compared to mesh or bar grating products, which is of prime importance to designers, engineers and users worldwide. Type 02 planks are used in many applications where a high level of slip resistance is required. Standard planks are stocked therefore making the product readily available for either the client or PcP to fabricate into suitable panel sizes.
OPTIMO Plank Grating O3
Elefant Gratings T/A PcP Gratings Ltd
Optimo O3 Comprising of 14mm dia punched raised holes and 8.5mm dia depressed drainage holes. This punched profile provides excellent slip resistance, unsurpassed high strength to weight ratio and increased drainage owing to the larger holes giving a transparency of 28-32%.
OPTIMO Plank Grating O5
Elefant Gratings T/A PcP Gratings Ltd
Comprising of 5mm dia punched raised and depressed holes, in 2mm/3mm thick material.
This unique punched profile is stiletto proof with exceptional slip resistance and low visual transparency of 8-9%. Manufactured in various combinations in relation to: - width, height, length and profile. Supplied combined together as welded modules for easy fitting or individually to sub-contractors if preferred.
OPTIMO Tread - Achil O2
Elefant Gratings T/A PcP Gratings Ltd

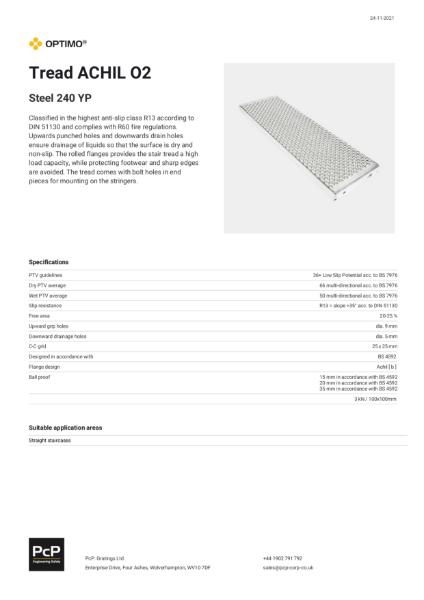

Classified in the highest anti-slip class R13 according to DIN 51130 and complies with R60 fire regulations. Upwards punched holes and downwards drain holes ensure drainage of liquids so that the surface is dry and non-slip. The rolled flanges provides the stair tread a high load capacity, while protecting footwear and sharp edges are avoided. The tread comes with bolt holes in end pieces for mounting on the stringers.
OPTIMO Tread - Achil Visual O5
Elefant Gratings T/A PcP Gratings Ltd

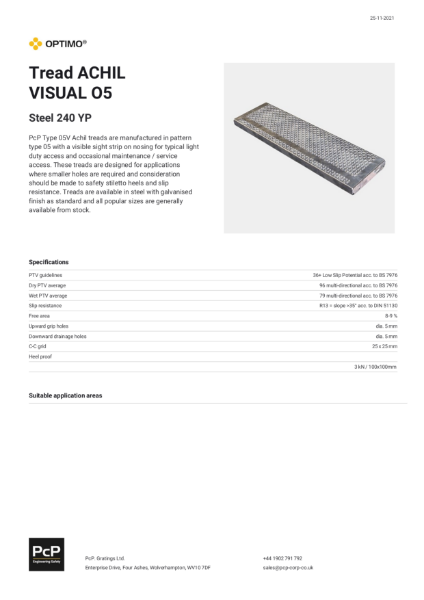

PcP Type 05V Achil treads are manufactured in pattern type 05 with a visible sight strip on nosing for typical light duty access and occasional maintenance / service access. These treads are designed for applications where smaller holes are required and consideration should be made to safety stiletto heels and slip resistance. Treads are available in steel with galvanised finish as standard and all popular sizes are generally available from stock.
OPTIMO Tread O3
Elefant Gratings T/A PcP Gratings Ltd
OPTIMO Type O3 stair tread used where requirements are made for slip resistance and strength. The pressed up and down holes give the profile an optimal strength / weight ratio. OPTIMO Step O3 can be performed in a myriad of combination options, in terms of width, height, length.
OPTIMO Tread O5-M
Elefant Gratings T/A PcP Gratings Ltd

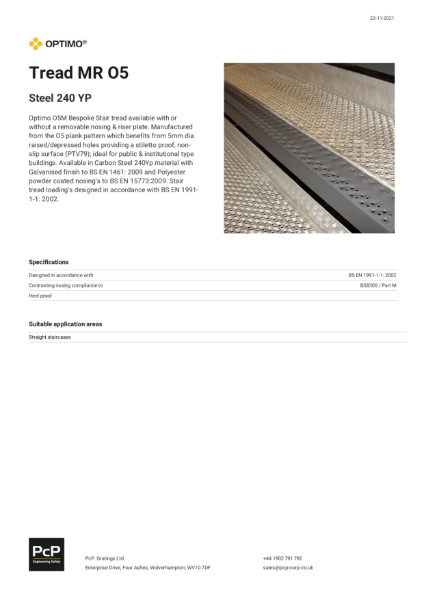

Optimo O5-M Bespoke Stair tread available with or without a removable nosing & riser plate. Manufactured from the O5 plank pattern which benefits from 5mm dia raised/depressed holes providing a stiletto proof, non-slip surface (PTV79); ideal for public & institutional type buildings. Available in Carbon Steel 240Yp material with Galvanised finish to BS EN 1461: 2009 and Polyester powder coated nosing's to BS EN 15773:2009. Stair tread loading's designed in accordance with BS EN 1991-1-1: 2002
Stair Treads Type O5-M
Elefant Gratings T/A PcP Gratings Ltd
Stair tread type O5TM-M is based on the type O5 pattern.
Type O5 is identified by 5mm dia. punched and drainage holes and low visual transparency.
This pattern is used commonly in high working areas to stop falling objects or in public areas
requiring heel-proof flooring.
Steel Scaffolding Boards for Tube and Fittings
Elefant Gratings T/A PcP Gratings Ltd

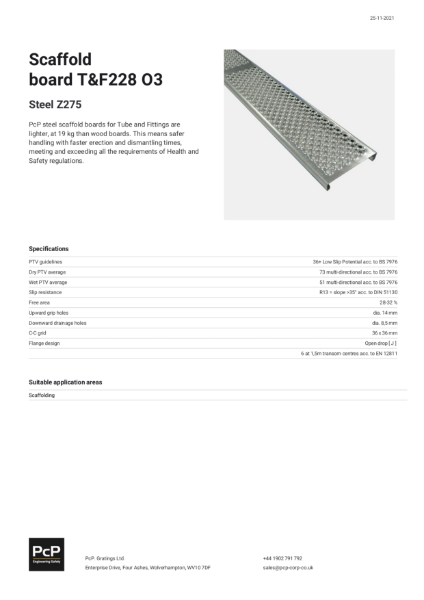

PcP steel scaffold boards for Tube and Fittings are lighter, at 19 kg, than wood boards. This means, safer handling with faster erection and dismantling times, meeting and exceeding all the requirements of Health and Safety regulations.
The unique surface with upward grip holes on PcP steel scaffolding boards provides the highest possible non-slip properties for this kind of product – compliant to R13 DIN 51130; which minimises the risk of slip and fall accidents. The holes also ensure that the scaffolding is drained and always dry – there is no need to sweep or turn the boards over after snow or frost.
Strength, Quality, Flexibility, Design
Elefant Gratings T/A PcP Gratings Ltd
Technical Catalogue
Elefant Gratings T/A PcP Gratings Ltd
Elefant Gratings Ltd has been successfully trading since 1998 specialising in the supply ofbespoke metal gratings & planks. We strive to find the best solution that suits yourrequirements. Utilising our experience & productknowledge, together with current British Standard guidelines; we provide unrivalled service. Elefant have developed a quality management system which contributes to ensuring that quality is paramount in all processes from servicing and consulting through production to delivery of the finished product.
Tubes and Fittings Scaffold Board
Elefant Gratings T/A PcP Gratings Ltd
PcP steel scaffold boards for Tube and Fittings are lighter, at 19 kg than wood boards. This means safer handling with faster erection and dismantling times, meeting and exceeding all the requirements of Health and Safety regulations.
UK Stock Catalogue
Elefant Gratings T/A PcP Gratings Ltd
This document provides a stock list including details on gratings, louvres, planks, perforated planks and stair treads.
