1400 Wall Guard

Verified by manufacturer 4 months ago

Inpro

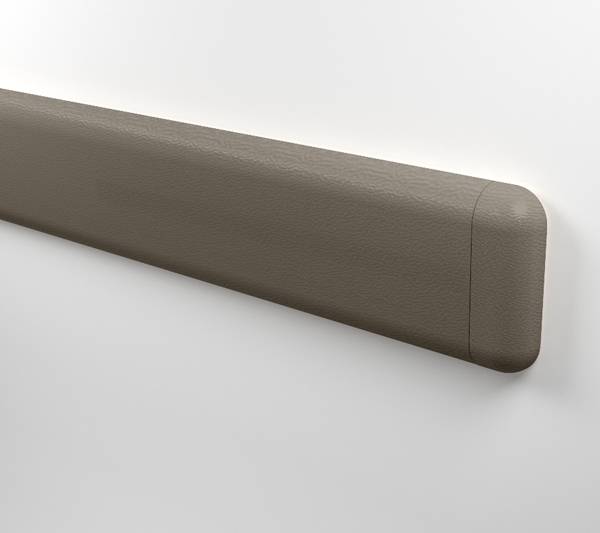

The 1400 wall guard provides continuous impact protection for your walls with a mid sized profile for more precise protection. (H: 102 mm).

Jump to:
07494249485 Website

Application

Suitable for use in all commercial areas which have heavy traffic, or which may use the following equipment types:

  • Wheelchairs.
  • Hospital beds.
  • Service carts.

Description

The 1400 wall guard provides superior impact resistance from carts, luggage, beds and wheelchairs with a continuous impact bumper mounted on continuous aluminium retainer. This crash guard is mid-sized which provides a lot of impact protection without too much design interruption.


Features and benefits:

  • Manufactured from safe, durable and recyclable PVC-U.
  • Provides a decorative element, while also providing continuous impact bumper resistance to keep walls free from damage (including scratches and dents) from trolleys, luggage, beds and wheelchairs.
  • Minimal seams due to standard 3.66 m lengths.
  • Inside and outside corners provide continuous protection.
  • Easy to install and maintain.
  • Available in a variety of colours.
  • Cost-effective.
  • Mounted onto a 2 mm thick aluminium retainer.
  • Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
  • Low fossil fuel consumption.


Approvals/ certifications:

  • GREENGUARD™ Indoor Air Quality Children and Schools certified.
  • May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
  • Fungal and bacterial resistant (to ASTM G21 and G22).
  • Good impact resistance (to ASTM F-476).


Standard components (dependent on configuration):

  • Aluminium retainer: Provides structural support for the wall guard system.
  • Splice: Allows for installations that are over 3.66 m.
  • Vinyl cover: Available in a variety of colours to coordinate with other interior finishes.
  • Inside/ outside corners: Provides a smooth transition for corner applications.
  • Reveal: Decorative element, standard with every woodland wall guard order.
  • Impact bumper: Absorbs the impact from traffic such as carts and wheelchairs.
  • Endcap: Finishes the wall guard installation for a professional look.

General information

Shape

Rectangle

Color

-

Manufacturer guidance

Available in a range of colours.

Finish

Textured

Material

PVC-U

Guidance for specification option:

Wall guard.

Aluminium

Guidance for specification option:

Retainer.

Vinyl

Guidance for specification option:

Cover.

Warranty description

Lifetime

Guidance for specification option:

Standard Limited Lifetime Warranty against material and manufacturing defects.

Size

25 x 102 mm

Guidance for specification option:

3.66 m.

Uniclass

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

P20/30 Proprietary

Product range

Wall Guards

Specification data - Wall protection panels

Material

PVC-U.

Fire rating

NFPA, class A.

Finish

Textured.

Colour or pattern

Aloe 1057.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 59.33.

Beeswax 0249.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 56.9.

Black 0152.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 4.5.

Buoyant Blue 0132.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 25.5.

Burlap 0252.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 43.4.

Cabernet 0241.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 7.7.

Canary 1050.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.77.

Cardinal 0236.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 11.2.

Castle 0256.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 10.8.

Clam Shell 0154.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 71.1.

Cloudy 1059.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 49.09.

Clover 1058.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.82.

Crystal Jade 0187.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.8.

Designer White 0101.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 78.7.

Dove Gray 0106.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 37.1.

Eggshell 0111.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 68.4.

English Green 0125.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 16.6.

Honey 1053.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.21.

Light Beige 0109.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 70.5.

Mandarin 1054.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 36.69.

Mint 1056.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 55.21.

Orchid 1055.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.36.

Periwinkle 0272.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.5.

Pewter Gray 0107.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.5.

Point Blue 0165.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 8.9.

Purple Haze 0171.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 15.8.

River Rock 0351.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 22.4.

Sharkskin 0350.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 42.2.

Sherbet 1052.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 51.3.

Silver 0105.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 48.1.

Sunny Day 1051.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 69.84.

Taupe 0113.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 52.0.

Truffle 0284.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 9.6.

White Sand 0103.

Guidance for specification option:

Standard solid colours:  Light reflectance value (LRV): 77.0.

American Walnut 0555.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 6.3.

Applewood 0537.

Guidance for specification option:

Woodlands patterns (W):  Light reflectance value (LRV): 30.5.

Boston Cherry 0534.

Guidance for specification option:

Woodlands patterns (W):  Light reflectance value (LRV): 9.2.

Honeynut 0535.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 15.9.

Natural Maple 0531.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 57.7.

Santa Rosa 0532.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 37.3.

Profile

Rectangular.

Size

25 x 102 mm.

Fixing

Screws.

Retainer

Continuous bracket.

Guidance for specification option:

Consult manufacturer for details.

Infinity bracket (I).

Guidance for specification option:

Shortened aluminium retainer, easy to install in short runs.

Length

3.66 m.

Accessories/ Other requirements

Not required.

End cap (1402).

Inside corner (1407).

Outside corner (1403).

Rubber spacer (501).

Guidance for specification option:

12 mm thick, 50 mm diameter. Extends the guard further from the wall.

Cover

Rigid vinyl cover.

Guidance for specification option:

2 mm thickness, scratch and stain resistant.

Sustainability data

Country of material origin

Italy

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Up to 40% recycled content in aluminium retainers.

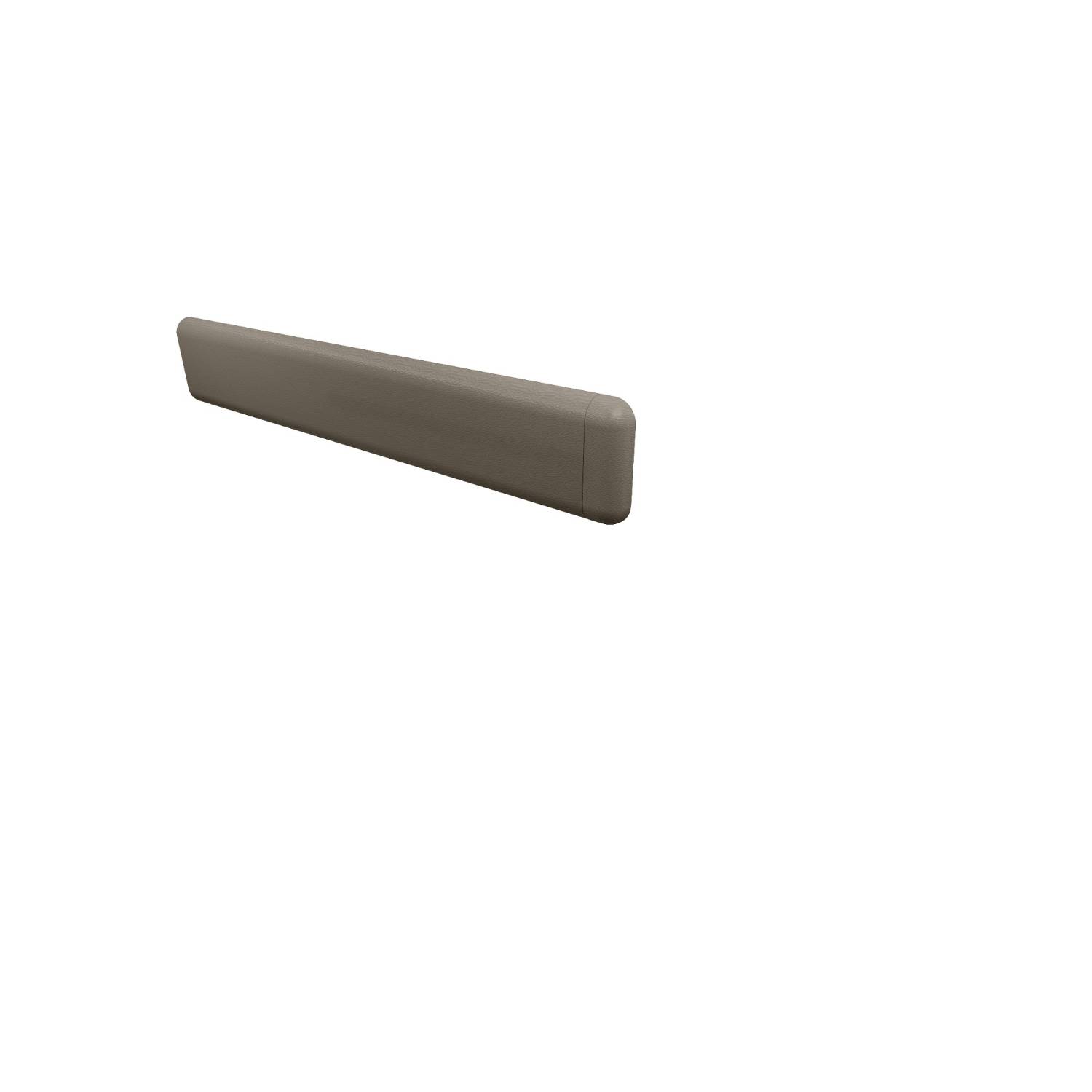

BIM objects

Platform Compatible Version
Revit

Revit 2017
