Verified by manufacturer 5 months ago

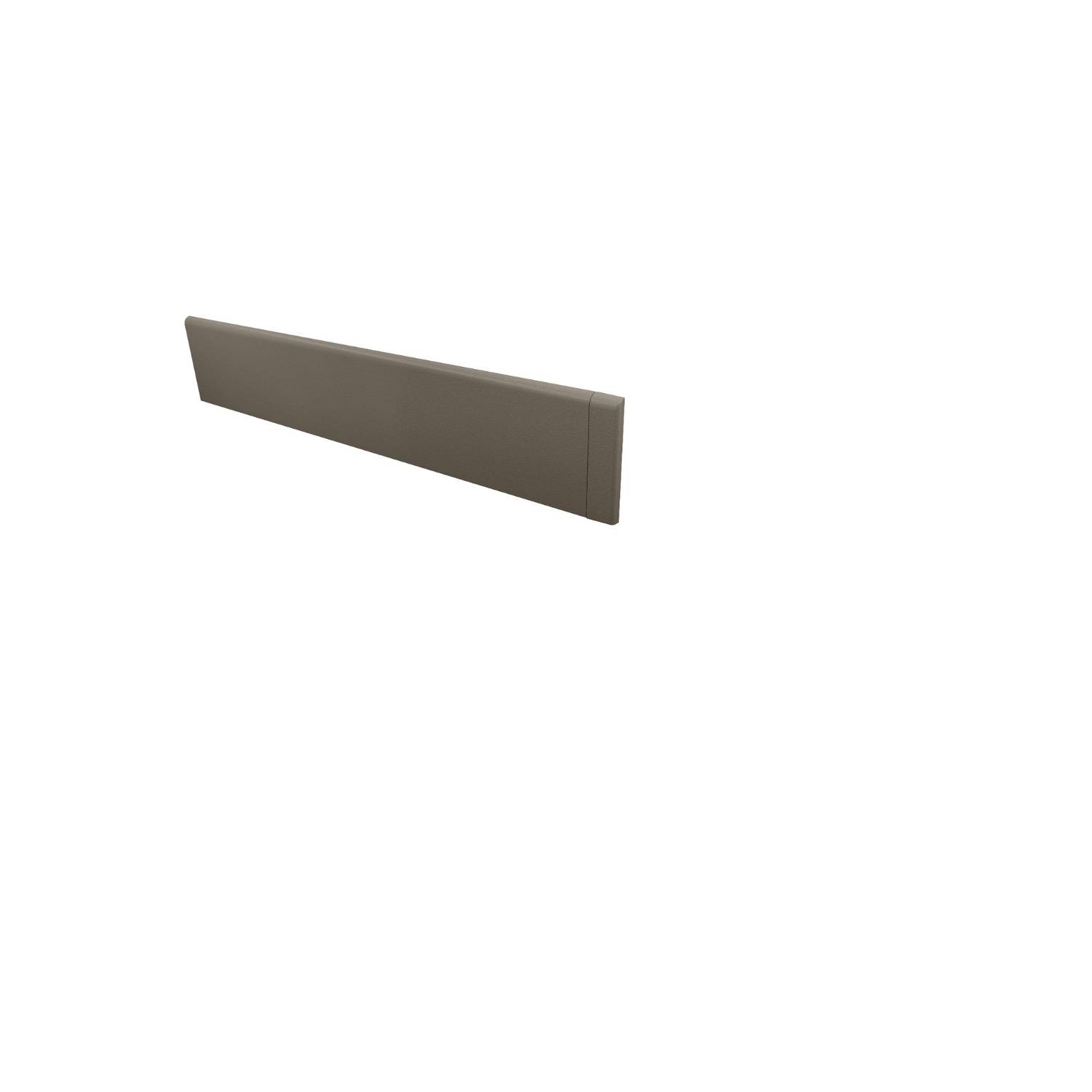

High impact wall base offers the impact resistance you want for your walls without the design interruption of traditional wall protection.
Suitable for use in all commercial areas which have heavy traffic, or which may use the following equipment types:
The high impact wall base provides superior impact protection with a continuous foam bumper mounted onto the continuous aluminium retainer. Reduces costs during renovation because the product can be reused and offers quick installation because there are no adhesives required.
Features and benefits:
Approvals/ certifications:
Standard components (dependent on configuration):
Shape | Rectangle |
Color | Manufacturer guidanceAvailable in a range of colours. |
Finish | Smooth |
Material | PVC-U |
Warranty description | Lifetime Guidance for specification option: Standard Limited lifetime warranty against material and manufacturing defects. |
Size | 102 x 9.5 mm |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary P20/30 Proprietary |
Product range |
Material | Plastics.Guidance for specification option: PVC-U. |
Fire rating | NFPA, class A. |
Finish | Smooth. |
Colour or pattern | Aloe 1057.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 43.4. Cabernet 0241.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 7.7. Canary 1050.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.77. Cardinal 0236.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 11.2. Castle 0256.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 10.8. Clam Shell 0154.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 71.1. Cloudy 1059.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 49.09. Clover 1058.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.82. Crystal Jade 0187.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.8. Designer White 0101.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 78.7. Dove Gray 0106.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 37.1. English Green 0125.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 16.6. Eggshell 0111.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 68.4. Honey 1053.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.21. Light Beige 0109.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.21. Mandarin 1054.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 36.69. Mint 1056.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 55.21. Orchid 1055.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 17.36. Periwinkle 0272.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.5. Pewter Gray 0107.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 17.5. Point Blue 0165.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 8.9. Purple Haze 0171.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 15.8. River Rock 0351.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 22.4. Sharkskin 0350.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 42.2. Sherbet 1052.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 51.3. Silver 0105.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 48.1. Sunny Day 1051.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 69.84. Taupe 0113.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 52.0. Truffle 0284.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 9.6. White Sand 0103.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.0. |
Profile | Rectangular. |
Size | 102 x 9.5 mm. |
Fixing | Screws. |
Execution | Finished wall and ceiling trim. |
Accessories/ Other requirements | Not required. Inside corner (WB4IC). Left end cap (WB4LEC). Outside corner (WB4OC. Right end cap (WB4REC). |
Length | 2.44 m. |
Cover | Scratch and stain resistant rigid vinyl. Guidance for specification option: 2 mm thick. |
Country of material origin | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
Platform | Compatible | Version |
---|---|---|
Revit 2017 | 1 |
