Verified by manufacturer 4 months ago

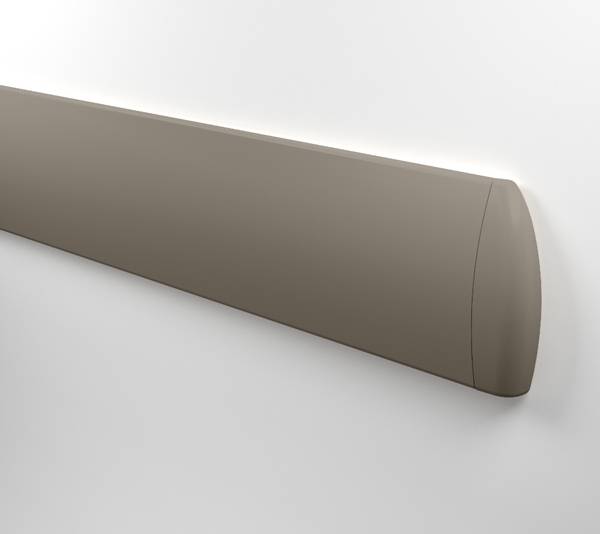

The 1500 wall guard is a designer friendly crash guard that provides impact protection for your walls in areas that need it the most. (H: 127 mm)
Suitable for use in all commercial areas which have heavy traffic, or which may use the following equipment types:
The innovative design of the 1500 wall guard combats the appearance of traditional wall protection while providing a high level of impact protection for walls. An innovative solution for traditional wall guard designs.
Features and benefits:
Approvals/ certifications:
Standard components (dependent on configuration):
Color | Manufacturer guidanceAvailable in: Standard Solid Colors. |
Finish | Textured |
Material | PVC-U Guidance for specification option: Wall guard. Aluminium Guidance for specification option: Retainer. Vinyl Guidance for specification option: Cover. |
Size | 25 x 127 mm Guidance for specification option: 3.66 m length. |
Uniclass | |
CAWS | N10/184 Wall rails P20/170 Proprietary P20/30 Proprietary |
Product range |
Material | Plastics.Guidance for specification option: Material: Retainer - Aluminium Cover - vinyl, PVC-U. |
Fire rating | NFPA, class A. |
Finish | Textured. |
Colour or pattern | Aloe 1057.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 43.4. Cabernet 0241.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 7.7. Canary 1050.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.77. Cardinal 0236.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 11.2. Castle 0256.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 10.8. Clam Shell 0154.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 71.1. Cloudy 1059.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 49.09. Clover 1058.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.82. Crystal Jade 0187.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.8. Designer White 0101.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 78.7. Dove Gray 0106.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 37.1. Eggshell 0111.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 68.4. English Green 0125.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 16.6. Honey 1053.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.21. Light Beige 0109.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 70.5. Mandarin 1054.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 36.69. Mint 1056.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 55.21. Orchid 1055.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 17.36. Periwinkle 0272.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.5. Pewter Gray 0107.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 17.5. Point Blue 0165.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 8.9. Purple Haze 0171.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 15.8. River Rock 0351.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 22.4. Sharkskin 0350.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 42.2. Sherbet 1052.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 51.3. Silver 0105.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 48.1. Sunny Day 1051.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 69.84. Taupe 0113.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 52.0. Truffle 0284.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 9.6. White Sand 0103.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.0. |
Profile | Curved. |
Size | 25 x 127 mm. |
Fixing | Screws.Guidance for specification option: Hardware not supplied by Inpro. |
Retainer | Continuous bracket. Guidance for specification option: Aluminium, consult manufacturer for details. Infinity bracket (I). Guidance for specification option: Shortened aluminium retainer, easy to install in short runs. |
Accessories/ Other requirements | Not required. Left end cap (1501L). Right end cap (1501R). Inside corner (1503). Outside corner (1502). |
Cover | Scratch and stain resistant rigid vinyl. Guidance for specification option: 2 mm thickness. |
Length | 3.66 m. |
Country of material origin | Italy |
Country of product manufacture | Italy |
Platform | Compatible | Version |
---|---|---|
Revit 2017 | 1 |
