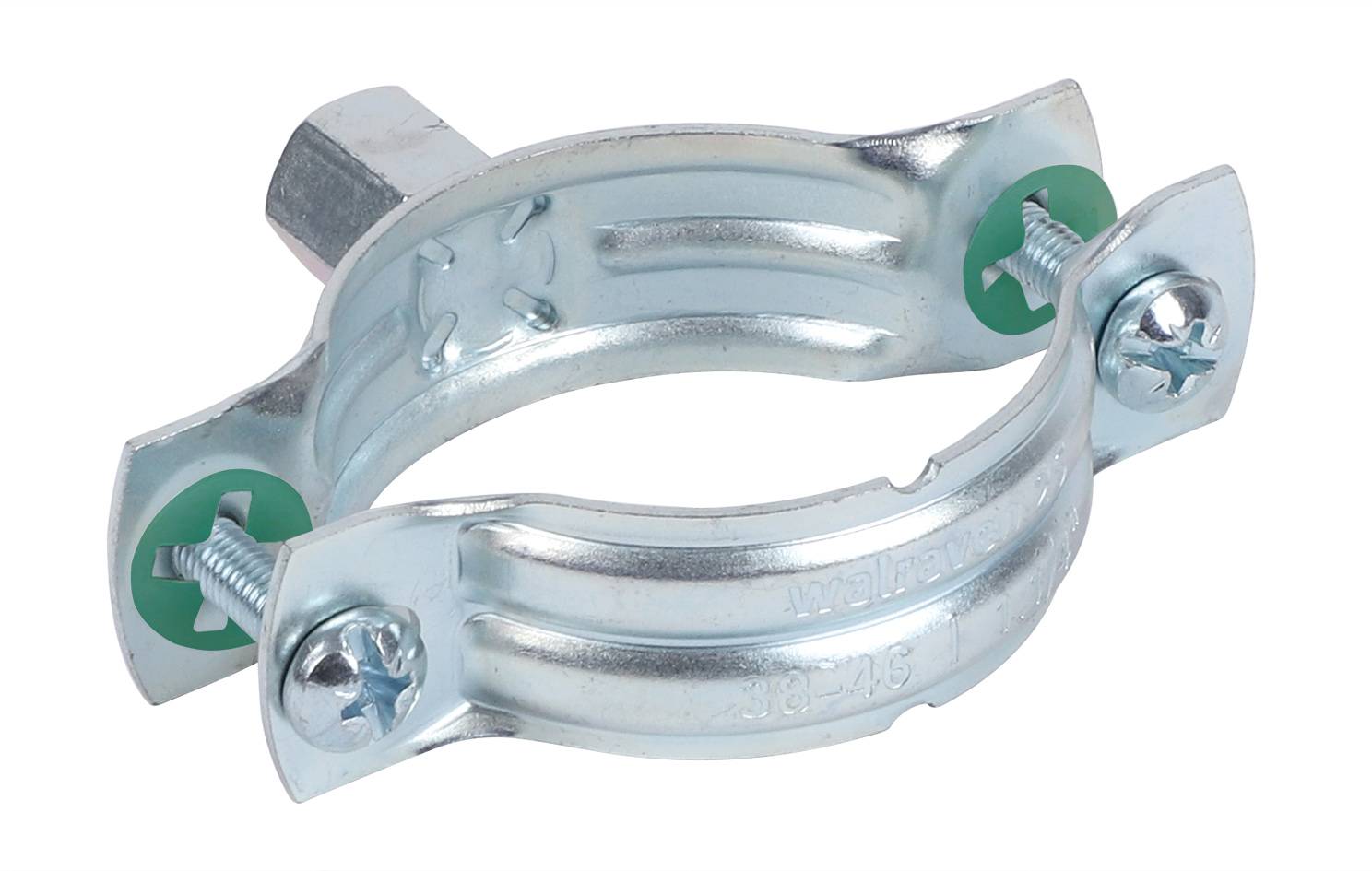

2S - Pipe Clamp - Unlined (M8/10)
Verified by manufacturer 1 day ago
Pipe diameter: 10–14 mm
Pipe diameter: 10–14 mm
M8/10 unlined clamp for insulated pipe, steel, copper, cast iron and plastic (multilayer) pipe; 10–225 mm.
Application
For use with insulated pipe, steel, copper, cast iron and plastic (multilayer) pipe; 10–225 mm.
Description
M8/10 unlined clamp for insulated pipe, steel, copper, cast iron and plastic (multilayer) pipe; 10–225 mm.
Features and benefits:
- Gapless range.
- Anti-loss washers prevent screws from falling out during installation.
- Solution for insulated pipe supports.
- Made from zinc-plated steel.
General information
Color | Silver |
Finish | Zinc plated Guidance for specification option: Zinc Plated. |
Material | Steel |
Shape | Circle |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Pipe clips
Clip type | 700 N. |
Material | Carbon steel. |
Finish: | Zinc plated. |
Dimensions | 46 x 35 x 20 mm. Guidance for specification option: Height x width x depth. Clamp plate: 1 mm thick. Clamp bolts: M5. |
Sustainability data
Country of product manufacture | Turkey |
Literature
RAL Certified Products Data Sheet
RAL-GZ-655 Brochure
