Britclips® - Support Clip

Verified by manufacturer 23 hours ago

Walraven Ltd

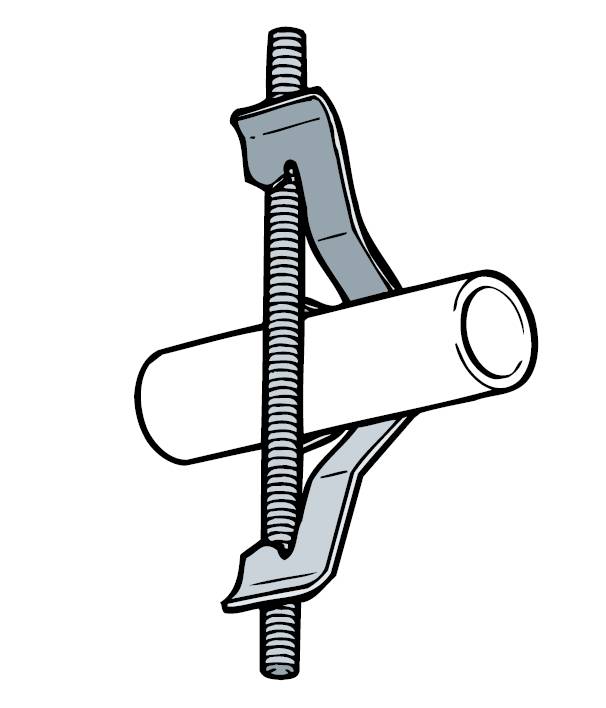

Pipe clips for quick fixing to threaded rods or flanges without welding or drilling.

Jump to:
+44 (0)1295 753400 Website

Application

For quick fixing to threaded rods or flanges without welding or drilling.

For use with static loads only.

Description

Pipe clips for quick fixing to threaded rods or flanges without welding or drilling.


Features and benefits:

  • Material: spring steel, type CS70.
  • Surface treatment: Delta-Tone 9000 (480 hours).
  • Compatible with BIS threaded rod (specified separately).

General information

Color

Silver

Finish

Guidance for specification option:

Delta-Tone 9000 (480 hours).

Material

Steel

Uniclass

Pr_20_29_14_65 Pipe clipsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Pipe clips

Clip type

One piece.

Material

Spring steel, type CS70.

Pipe diameter

16–20 mm.

25–32 mm.

Manufacturer guidance

Threaded rod: M6–M8/ M10.

Load capacity

450 N.

Material/ Finish

Delta-Tone 9000 (480 hours).

Sustainability data

Country of product manufacture

United Kingdom
